39 (GB)

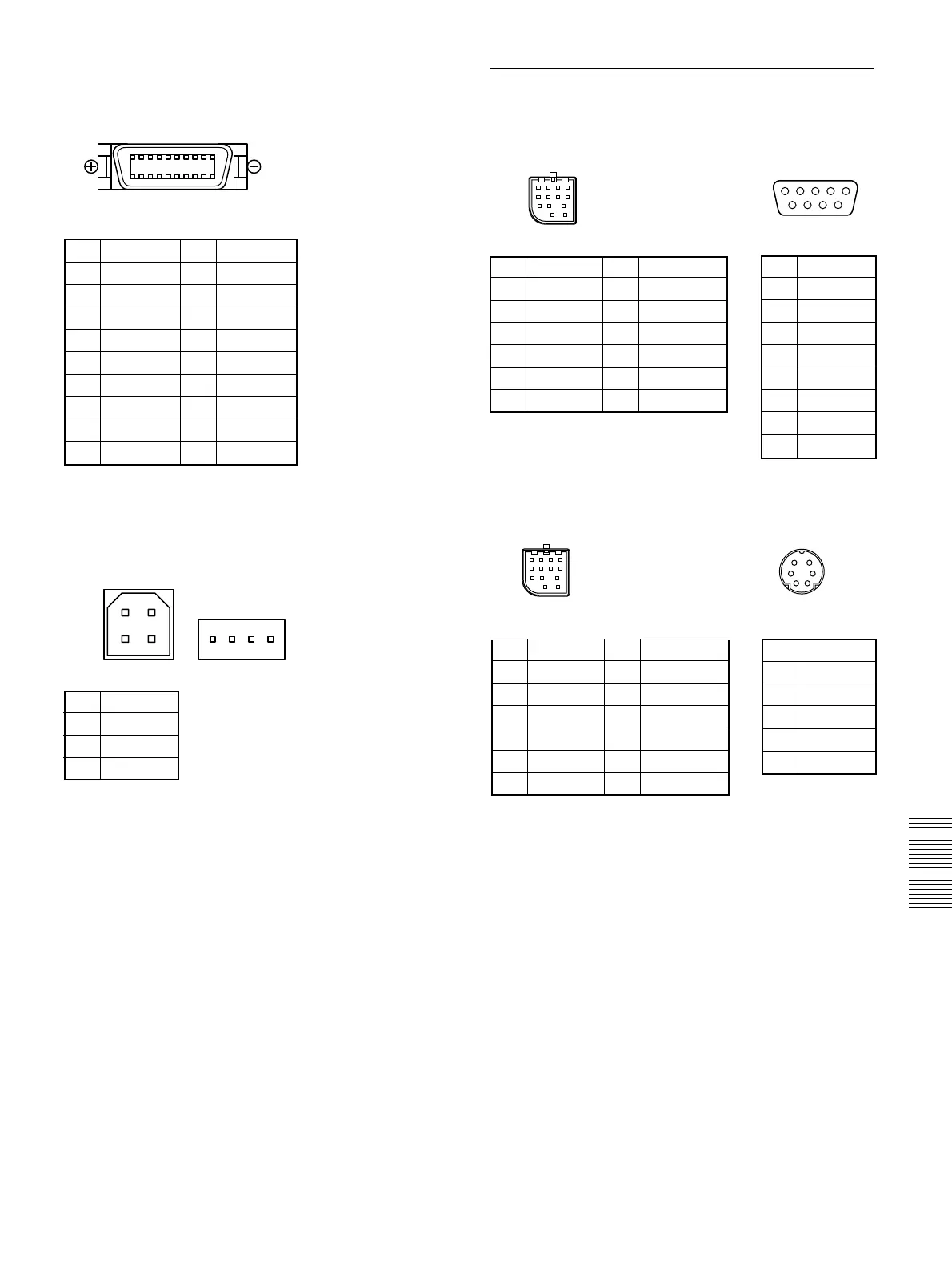

DIGITAL RGB input connector (DFP 20-pin,
female)
1 TX0– 11 TXC–
2 TX0+ 12 TXC+
3 TX0 SHIELD 13 TXC SHIELD
4 TX2 SHIELD 14 TX1 SHIELD
5 TX2– 15 TX1–
6 TX2+ 16 TX1+
7 DDC/SCL 17 NC
8 DDC/SDA 18 SENSE
9 NC 19 +5V DC
10 NC 20 GND
USB connector
Mouse cable pin assignment
SIC-S22
13-pin
mini DIN 6-pin
1 RTS 8 R
2 GND 9 98/AT/TXD
3 XA 10 +5V/DTR
4 XB 11 CLOCK
5 YA 12 DATA
6 YB 13 RXD
7 L/PS
1 DATA
2NC
3 GND
4 +5V
5 CLOCK
6NC
13-pin
D-sub 9-pin
1 RTS 8 R
2 GND 9 98/AT/TXD
3 XA 10 +5V/DTR
4 XB 11 CLOCK
5 YA 12 DATA
6 YB 13 RXD
7 L/PS
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9RI
SIC-S21
Specifications
3
12
56
4
21
53
96
1310
1
69
5
21
53
96
1310
2
3
1
14
4
Plug B
(female)
Plug A
110
1120
1 +5V
2D–
3D+
4 GND
