WM-FX488
17
SECTION 5
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference number in the
exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
• Abbreviation
CH : Chinese
E: No indication of country of origin
6E : Indication of country of origin
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

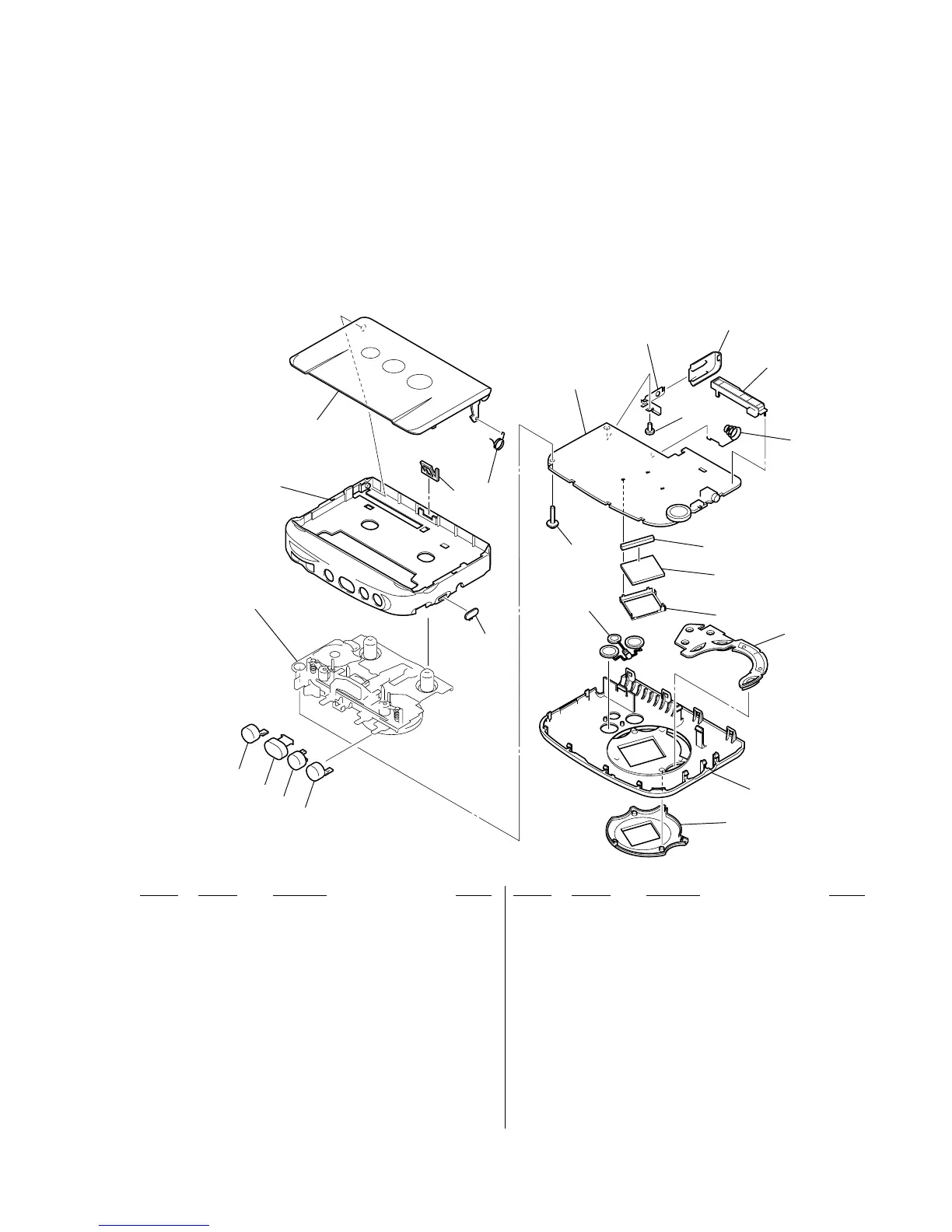

5-1. CABINET SECTION
1
6
2
3
4
9
10
18
13
15
16
17
19
20
21
14
11
12
7
8
5
LCD701
Mechanism deck
(MF-WMFX488-114)
L4
1 3-019-859-11 BUTTON (STOP)
2 3-019-860-11 BUTTON (FF)
3 3-019-858-11 BUTTON (PLAY)
4 3-019-861-11 BUTTON (REW)
5 3-245-288-01 KNOB (HOLD)
6 3-245-284-11 CABINET (CENTER)
7 3-245-293-01 SPRING (CASSETTE)
8 3-245-294-01 SPRING (TORSION)
9 3-245-285-01 HOLDER, CASSETTE
10 3-921-955-01 SCREW (M1.4), TOOTH (WH)
* 11 A-3178-912-A MAIN BOARD ASSY (E, CH)
* 11 A-3178-926-A MAIN BOARD ASSY (6E)
12 X-3382-597-1 TERMINAL BOARD ASSY, BATT (+)
13 3-375-114-01 SCREW
14 3-245-287-01 LID, BATTERY CASE
15 3-245-295-01 TERMINAL (-), BATTERY
16 3-245-291-01 RUBBER, CONDUCTOR
17 3-245-292-01 HOLDER, LCD
18 3-245-290-11 BUTTON (FM)
19 3-245-289-01 BUTTON (PRESET), RUBBER
20 3-245-283-11 CABINET (FRONT) (SILVER)
20 3-245-283-21 CABINET (FRONT) (BLUE)
21 3-245-286-01 WINDOW, LCD
L4 1-754-265-11 ANTENNA, FERRITE-ROD
LCD701 1-804-966-11 LCD
