Sony Walkman WM-FX488 Service Manual

18
WM-FX488
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

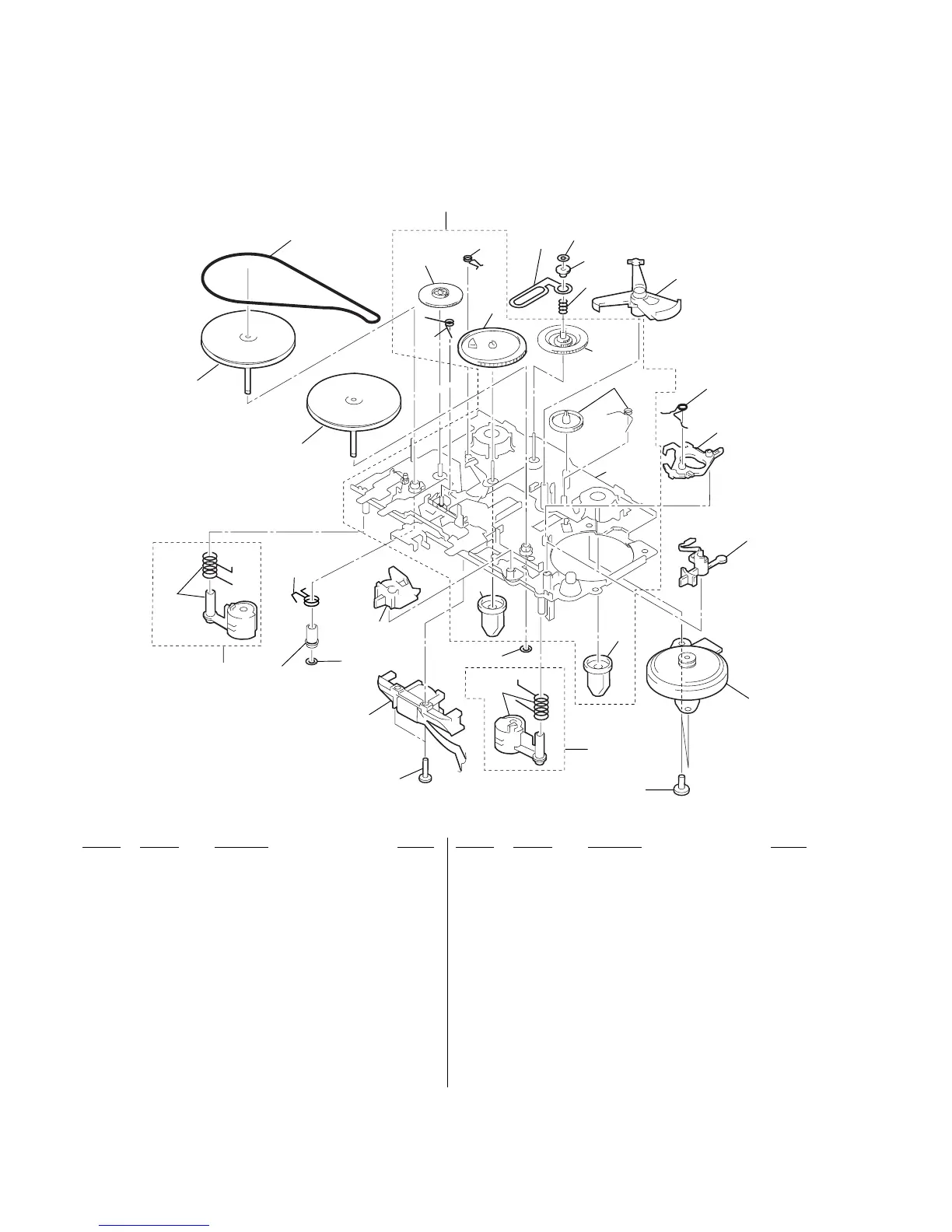

5-2. MECHANISM DECK SECTION
(MF-WMFX488-114)
HP601
M601
not
supplied
not
supplied
not
supplied
101
102
102
103
105
105
106
106
109
112
113
114
115
116
117
118
119
120
121
122
104
108
110
111
not
supplied
not
supplied
not supplied
not
supplied
107
101 X-3378-976-1 LEVER (NL) ASSY, PINCH
102 X-3381-147-1 WHEEL ASSY, CAPSTAN
103 3-704-197-71 SCREW (M1.4)
104 X-3369-748-9 PINCH LEVER (R) ASSY
105 3-024-223-11 GEAR (REEL-2)
106 3-921-797-01 WASHER
107 3-920-993-02 SPRING (NR)
108 3-014-709-01 SPRING (FR LEVER OW)
109 3-938-657-01 BELT
110 X-3380-431-1 CHASSIS (COMP) ASSY (GL-SL)
111 3-013-142-02 SPRING (FR-CP)
112 3-921-053-01 LEVER, D SELECTION
113 X-3376-169-5 CLUTCH ASSY
114 3-920-990-21 SPRING (UD), COMPRESSION
115 3-921-335-03 WASHER, LEVER
116 3-923-530-11 SLEEVE (M)
117 3-728-091-01 WASHER, STOPPER
118 3-921-052-14 LEVER (A), DETECTION
119 3-920-994-11 SPRING (D SELECTION)
120 3-929-419-03 LEVER (BR), DETECTION
121 3-704-197-01 SCREW (M1.4), SPECIAL HEAD
122 3-921-023-01 LEVER, M SELECTION
HP601 1-500-648-12 HEAD, MAGNETIC (PLAYBACK)
M601 1-763-798-11 MOTOR, DC (CAPSTAN/REEL)
(including PULLEY)

Sony Walkman WM-FX488 Specifications

Power

power requirements	DC 1.5V, AA Battery x 1
battery life (play)	35 Hours w/Sony Alkaline Battery
battery life (tuner)	40 Hours w/Alkaline Battery

Frequency Range

FM frequency range	87.5-108MHz
AM frequency range	530-1710kHz
TV frequency range	Channels 2-13
Weather Band frequency range	Channels 1-7

Weight and Dimensions

weight	158 g
width	83.6 mm
height	112 mm
depth	28.3 mm
