Sony Walkman WM-FX488 Service Manual

4
WM-FX488

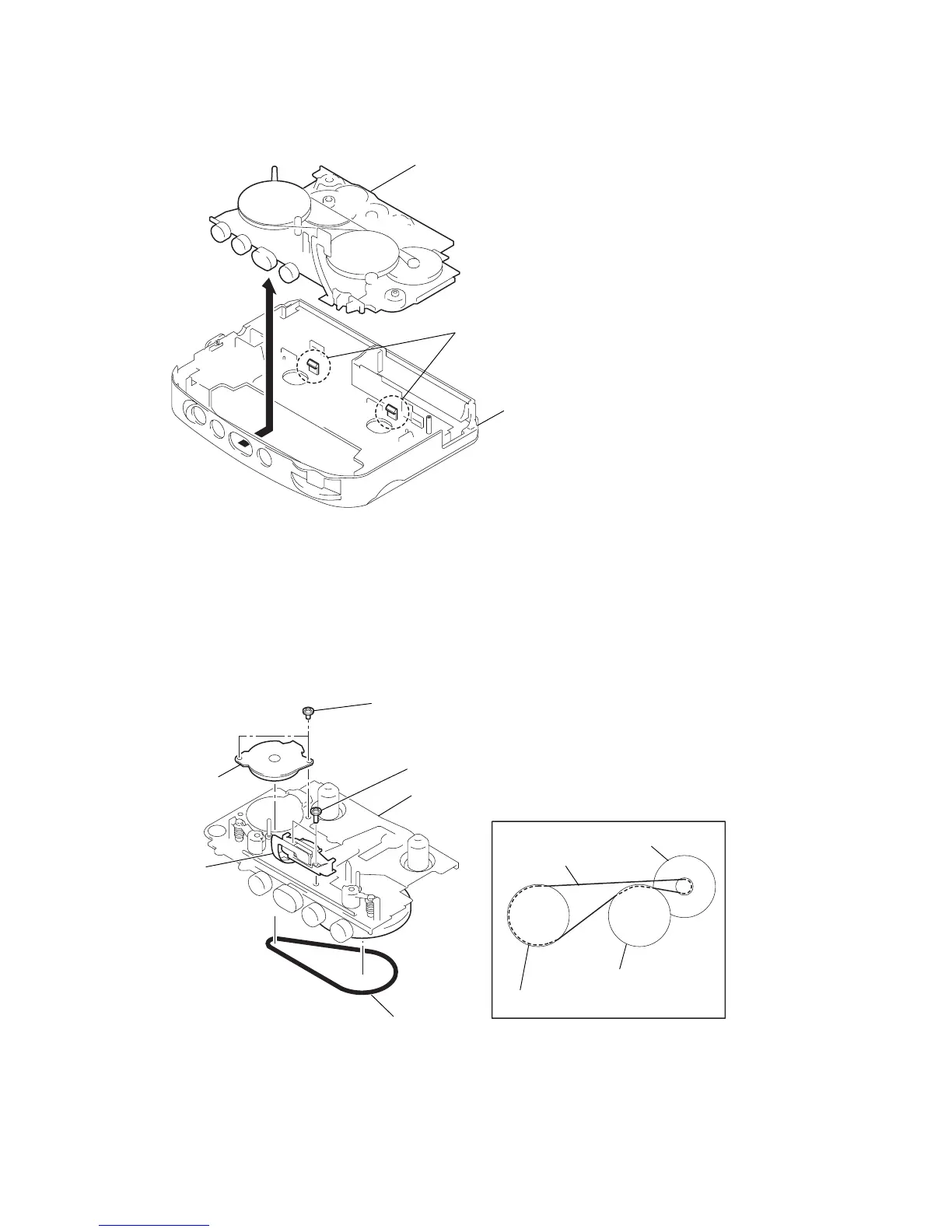

2-3. MECHANISM DECK
2-4. BELT,CAPSTAN/REEL MOTOR (M601), MAGNETIC HEAD (PLAYBACK) (HP601)
Mechanism deck
Cabinet (center)
1 Claws
2
Wheel ASSY (P), capstan
Wheel ASSY (P), capstan
Belt
• How to apply the belt
Capstan/reel motor
(M601)
1 Belt
5 Magnetic head
(PLAYBACK)
(HP601)
3 Capstan/reel motor
(M601)
4 Two screws (M1.4)
2 Two screws (M1.4)
Mechanism deck

Sony Walkman WM-FX488 Specifications

Power

power requirements	DC 1.5V, AA Battery x 1
battery life (play)	35 Hours w/Sony Alkaline Battery
battery life (tuner)	40 Hours w/Alkaline Battery

Frequency Range

FM frequency range	87.5-108MHz
AM frequency range	530-1710kHz
TV frequency range	Channels 2-13
Weather Band frequency range	Channels 1-7

Weight and Dimensions

weight	158 g
width	83.6 mm
height	112 mm
depth	28.3 mm
