Sony Walkman WM-FX488 Service Manual

5
WM-FX488
1 Insert the spring (torsion) to the slot as shown in the figure.
2,3 Insert the hinge of the “ Holder cassette ”.
4 Close the “Holder, cassette” then press it.
2-5. “HOLDER, CASSETTE’’
z

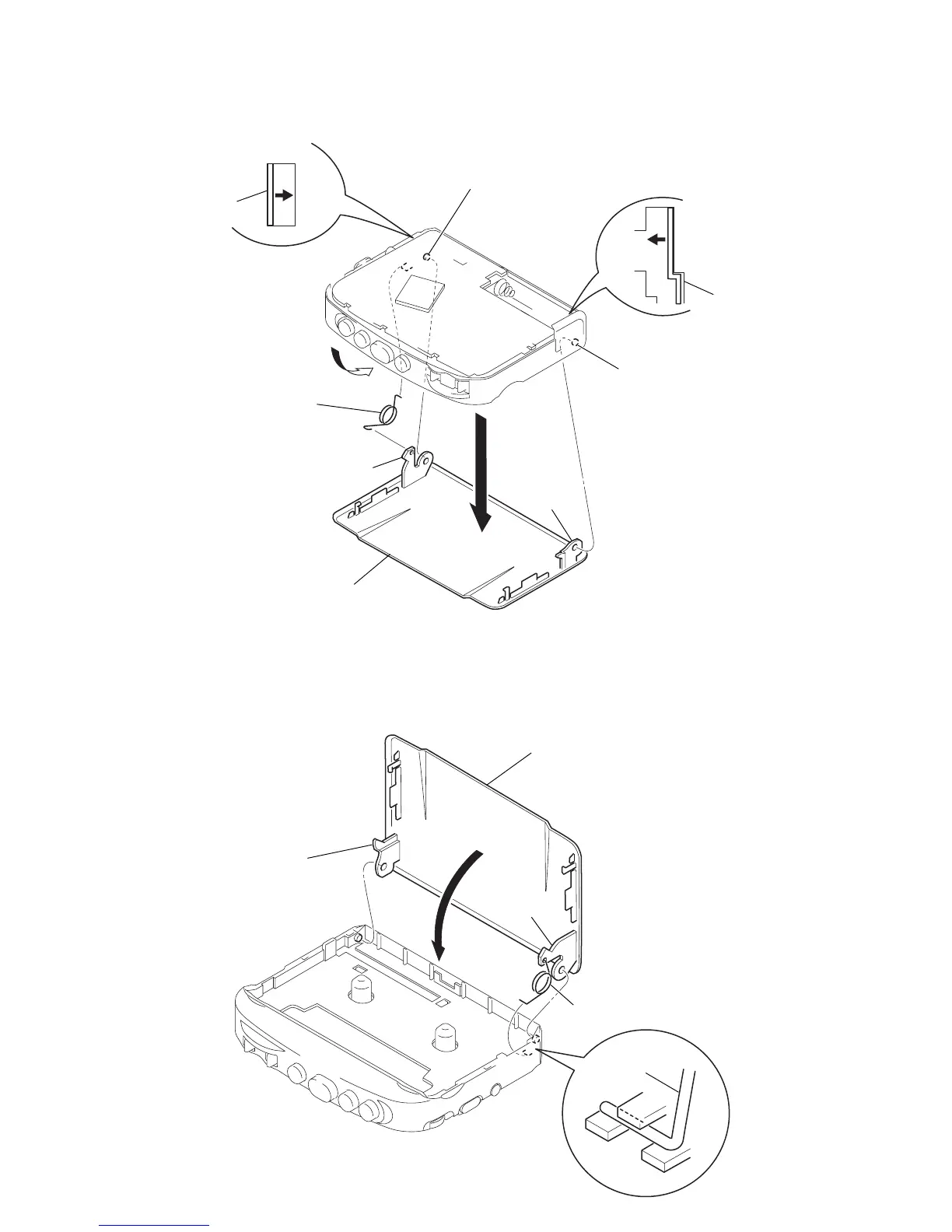

CAUTIONS DURING ASSEMBLY
Holder, Cassete
1
5
Hinge
Hinge
Hinge
Projection
Hinge
Projection
3 Move the hinge away
from projection
2 Move the hinge away
from projection
4 Spring (torsion)
2 Spring (torsion)
Spring
2 Hinge
3 Hinge
Holder, cassette
4

Sony Walkman WM-FX488 Specifications

Power

power requirements	DC 1.5V, AA Battery x 1
battery life (play)	35 Hours w/Sony Alkaline Battery
battery life (tuner)	40 Hours w/Alkaline Battery

Frequency Range

FM frequency range	87.5-108MHz
AM frequency range	530-1710kHz
TV frequency range	Channels 2-13
Weather Band frequency range	Channels 1-7

Weight and Dimensions

weight	158 g
width	83.6 mm
height	112 mm
depth	28.3 mm
