Sony Walkman WM-FX488 Service Manual

3
WM-FX488
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

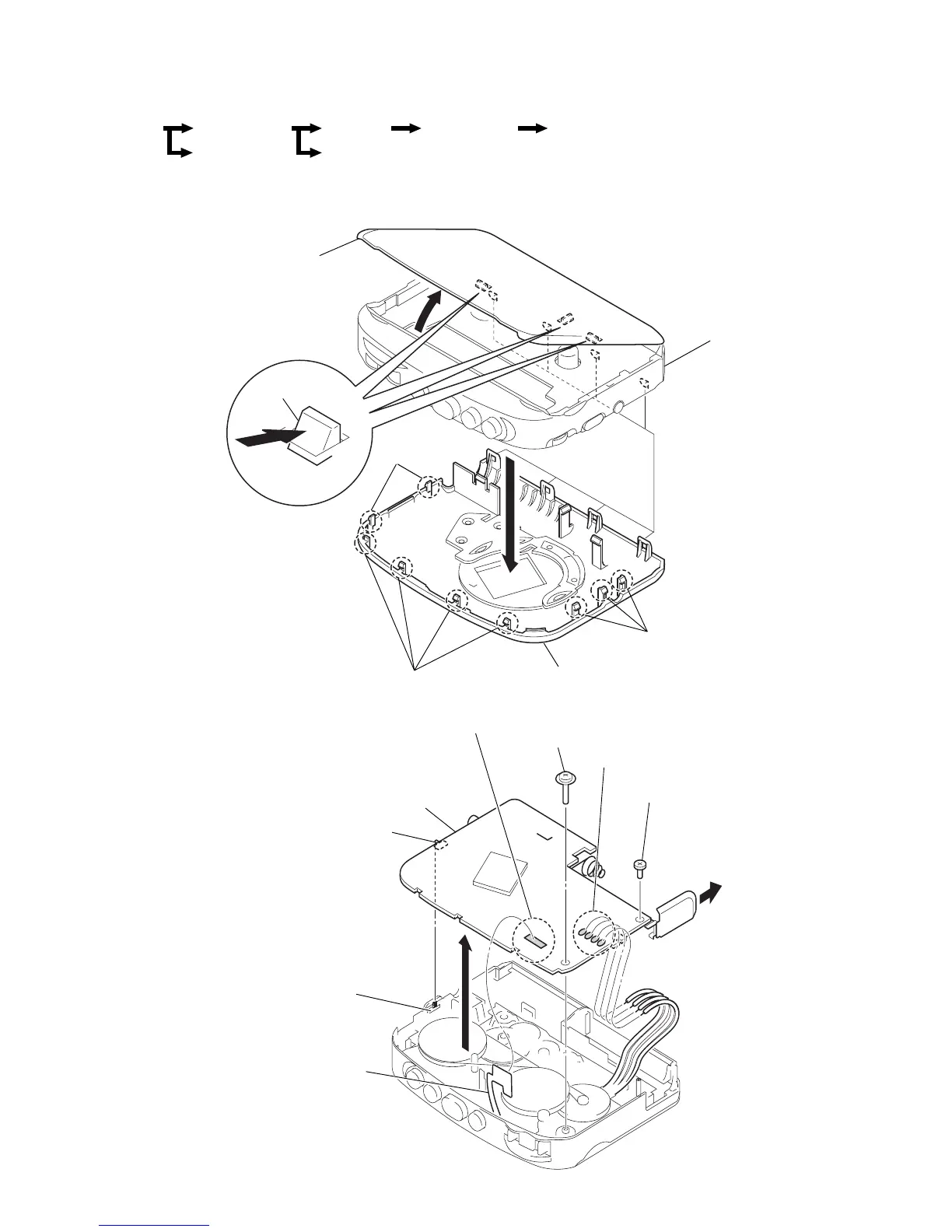

2-1. CABINET (FRONT), CABINET (CENTER)
2-2. MAIN BOARD
z
The equipment can be removed using the following procedure.
Main boardCabinet (center)
Holder, Cassette
Mechanism deck Belt, Capstan/reel motor (M601)
Magnetic head (playback) (HP601)
Set
Cabinet (front)
Cabinet (front)
Cabinet (center
)
Holder, Cassette
4 Claws
2
5
1
Claws
1 Claws
3 Claws
1 Claws
Main board
4 Screw (M1.4 WH)
5 Screw
S701
Hold knob
Head flexible board
1 Remove solder (six places)
2 Remove solder (four places)
3 Lid, battery cas
e
6
z
CAUTIONS DURING ASSEMBLY
Align position of S701 and hold knob

Sony Walkman WM-FX488 Specifications

Power

power requirements	DC 1.5V, AA Battery x 1
battery life (play)	35 Hours w/Sony Alkaline Battery
battery life (tuner)	40 Hours w/Alkaline Battery

Frequency Range

FM frequency range	87.5-108MHz
AM frequency range	530-1710kHz
TV frequency range	Channels 2-13
Weather Band frequency range	Channels 1-7

Weight and Dimensions

weight	158 g
width	83.6 mm
height	112 mm
depth	28.3 mm
