– 3 –
r
CHANGED PARTS LIST
Ref. No. Part No. Description Remark Part No. Description Remark
Page
Before Change After Change

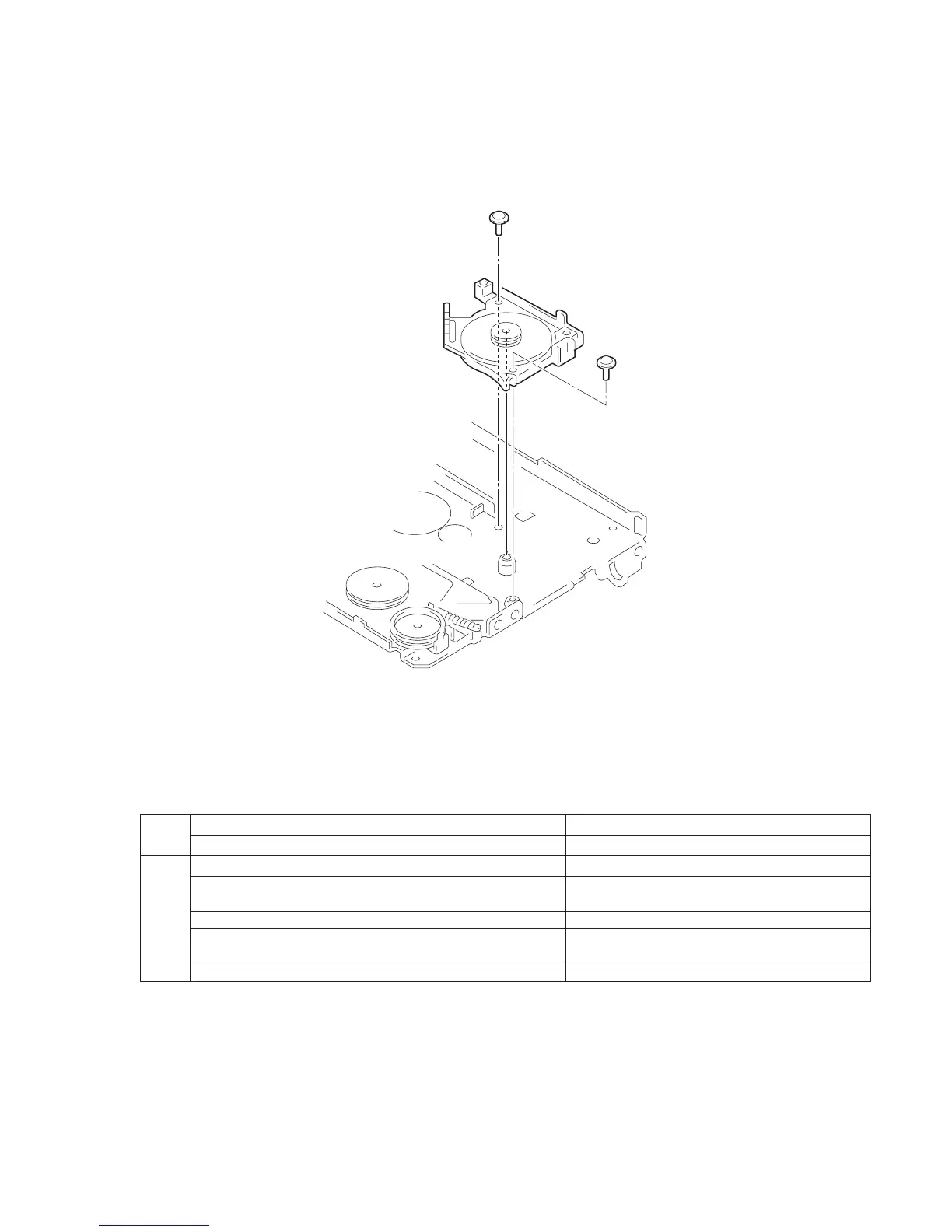

EXPLODED VIEWS
r
CAUTION WHEN INSTALLING A NEW MOTOR
Always give a drop of Diamond Oil NT68 (7-661-018-18) to the hole of the shaft marked with
!
when installing a new motor
(X-3376-217-1).
!
3 3-939-590-13 SCREW (IB LOCK) • • • (BLACK)
7 3-939-590-18 SCREW (IB LOCK) • • • (SILVER,BLUE,ORANGE)
20 7 3-939-590-19 SCREW (IB LOCK) • • • (BLACK)
10 3-389-523-35 SCREW (IB LOCK) • • • (SILVER,BLUE,ORANGE)
10 3-389-523-36 SCREW (IB LOCK) • • • (BLACK)
3-704-197-93 SCREW (M1.4 x 1.8) • • • (BLACK)
3-704-197-41 SCREW (M1.4 x 2.2) • • • (SILVER,BLUE,
ORANGE)
3-704-197-42 SCREW (M1.4 x 2.2), LOCKING • • • (BLACK)
3-704-197-61 SCREW (M1.4 x 4.0) • • • (SILVER,BLUE,
ORANGE)
3-704-197-63 SCREW (M1.4 x 4.0) • • • (BLACK)
To Next Page
