| Car audio
Rear output | Front output
Rear sub-woofers
Green White
(ED
om
Front mid-range speakers
dQ oO¢
q+)
R
(PE
Purple Gray
Notes CAUTION
* Set the 3 WAY/2 WAY selector to the 3 WAY Do not move the setting of the 3 WAY/2 WAY
Resition, selector after all the connections have been
«In this setting the fader control of the car audio will :
function in a normal manner: therefore you can completed as doing so may damage the
adjust the volume of the rear sub-woofers. tweeters.
* If your car audio has only 2 channels available for the
audio outputs, connect them to the FRONT INPUT
jacks. In this case, the output signals for the rear
sub-woofer will be same as the constituent of the
low-range frequencies going into the front speakers;
therefore adjust the fader contro! to the center
position.
11

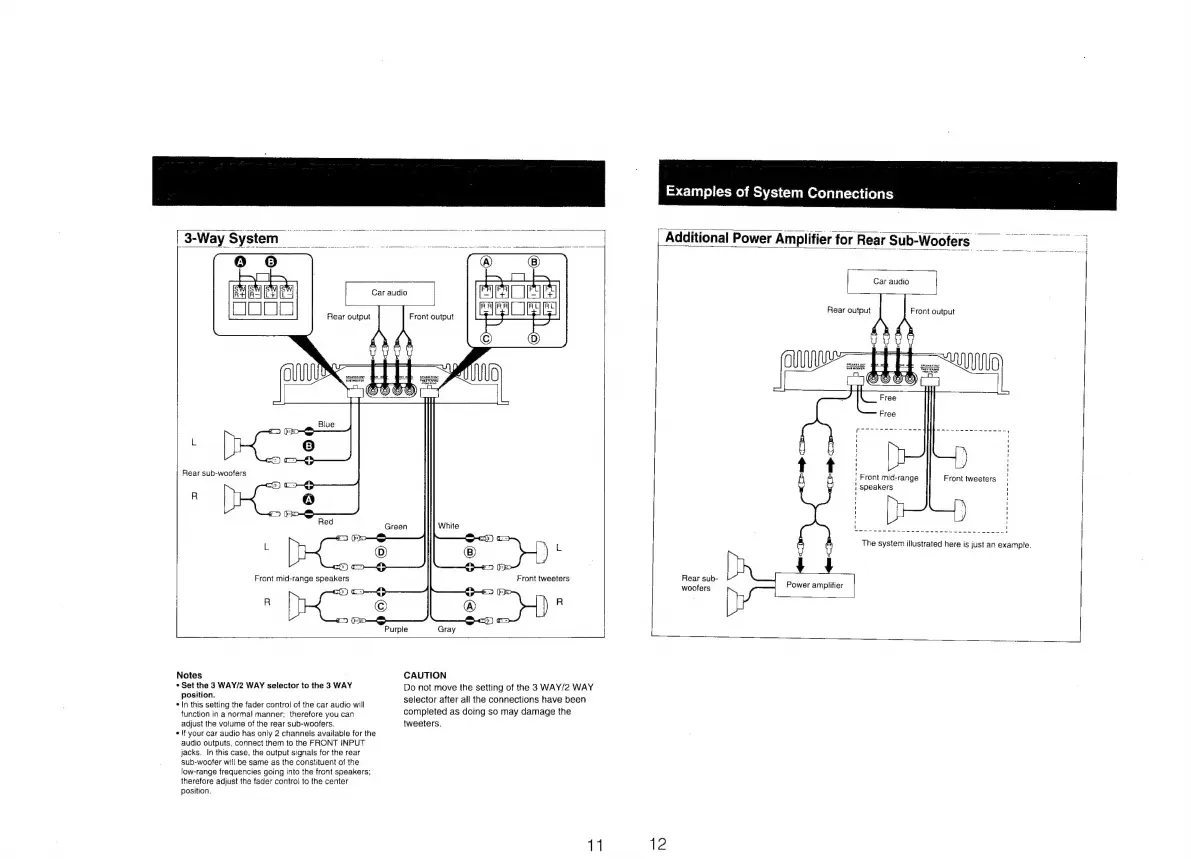

Examples of System Connections
Additional
Power
Amplifier
for
Rear
Sub-Woofers
.
Rear sub-
woofers
|
Car audio |
Rear output
Front output
Front mid-range
speakers
12
