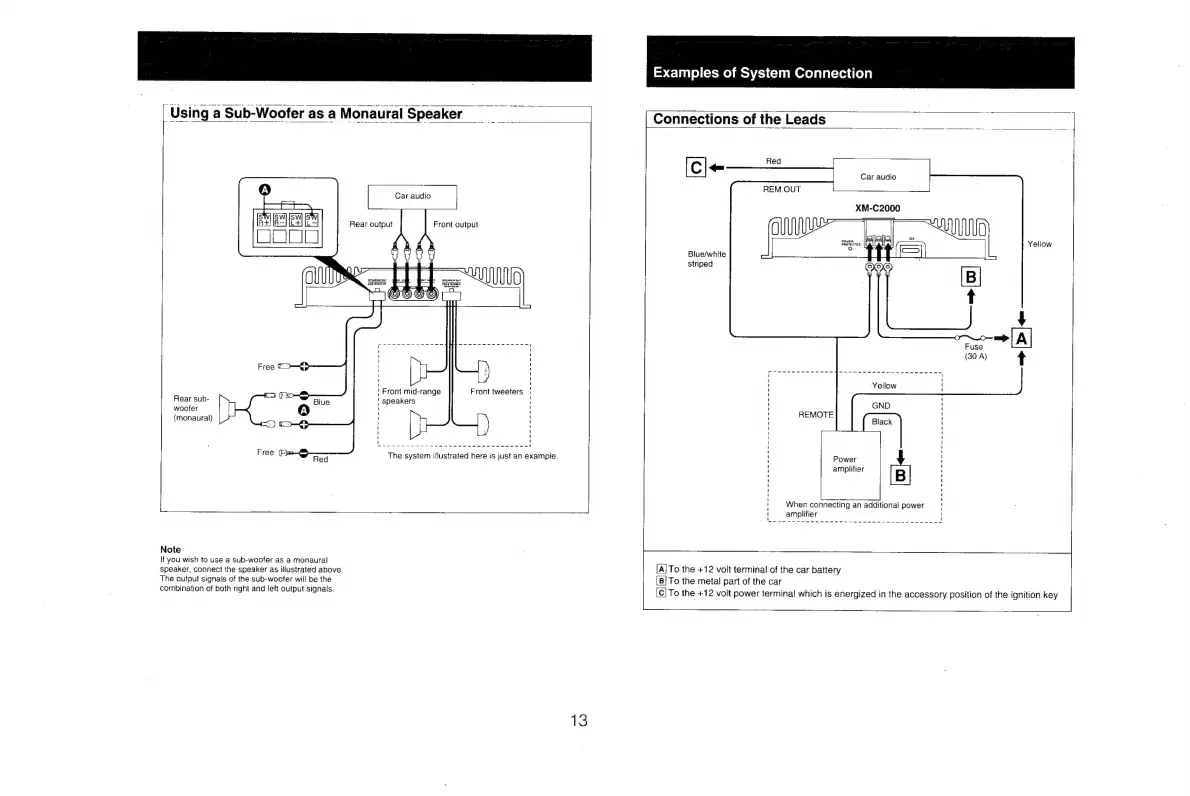

Using
a
Sub-Woofer
as
a
Monaural
Speaker
Car
audio
Rear
output
Front
output
Free
Front
mid-range
Front
tweeters
Rear
sub-
speakers
woofer
(monaural)
Ba
|)
Free
Fao
Red
The
system
illustrated
here
is
just
an
example.
Note
If
you
wish
to
use
a
sub-woofer
as
a
monaural
speaker,
connect
the
speaker
as
illustrated
above.
The
output
signals
of
the
sub-woofer
will
be
the
combination
of
both
right
and
left
output
signals.
13
Examples
of
System
Connection
Connections
of
the
Leads
[Cc]
Car
audio
REM
OUT
XM-C2000
Blue/white
striped
Yellow
Power
amplifier
When
connecting
an
additional
power
amplifier
[A]
To
the
+12
volt
terminal
of
the
car
battery
'B]
To
the
metal
part
of
the
car
C}To
the
+12
volt
power
terminal
which
is
energized
in
the
accessory
position
of
the
ignition
key
