Sony XR-1800R Service Manual

– 8 –
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY

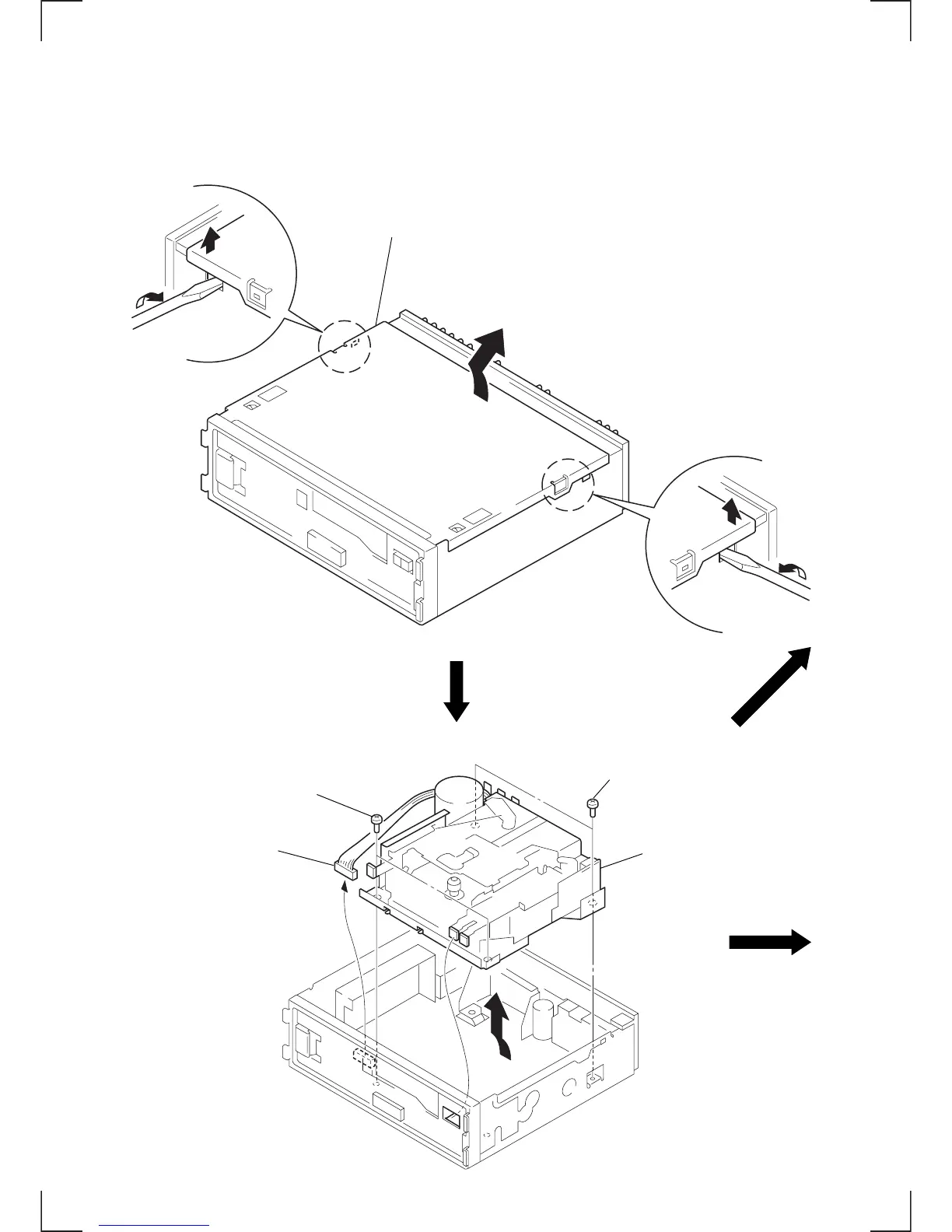

COVER ASS’Y
MECHANISM DECK BLOCK
3 cover ass’y
2
2
1
1
1 two screws
(PTT2.6 × 6)
3 mechanism deck bloc
k
1 two screws
(PTT2.6 × 6)
2 connector
(CN901)
