(1) GENERAL SECTION
SECTION 6

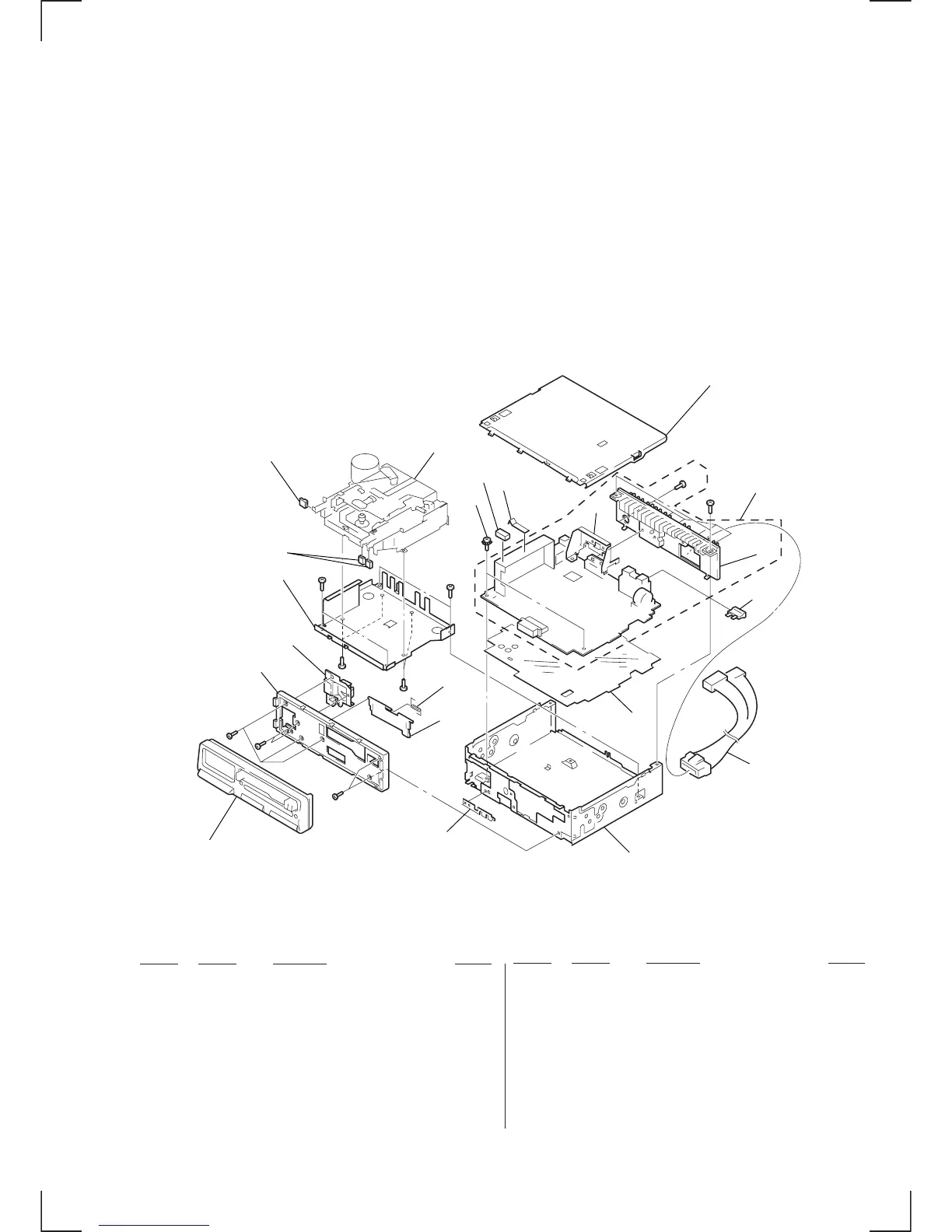

EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-022-475-01 PANEL, SUB
2 X-3367-636-1 LOCK ASSY
3 3-924-404-11 DOOR, CASSETTE
4 3-377-892-01 SPRING (C DOOR), TORSION
* 5 3-022-479-01 BRACKET (MD)
6 3-937-529-01 COVER (FF/REW)
7 3-937-528-01 COVER (EJECT)
8 3-376-464-11 SCREW(+PTT 2.6X6),GROUND POINT
9 3-029-047-01 PLATE (C), GROUND
* 10 X-3375-529-1 COVER ASSY
* 11 3-022-470-01 BRACKET (IC)
12 1-776-527-31 CORD (WITH CONNECTOR) (ISO) (POWER)
* 13 3-022-477-01 HEAT SINK
* 14 A-3317-253-A MAIN BOARD, COMPLETE (AEP, UK, SE)
* 14 A-3317-255-A MAIN BOARD, COMPLETE (G)
* 15 3-022-487-01 SHEET, INSULATING
* 16 3-022-476-01 CHASSIS, MAIN
17 3-338-263-01 CUSHION (U)
* 18 3-022-469-01 SPRING GROUND
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
10
13
14
15
16
18
1
2
5
6
7
8
9
11
#3
#2
#2
#2
#2
#2
F901
Front panel section
#1
#4
#4
MG-36SZ9-32
17
4
3
12
• Abbreviation
G : German
SE : South European
To Next Page
