Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

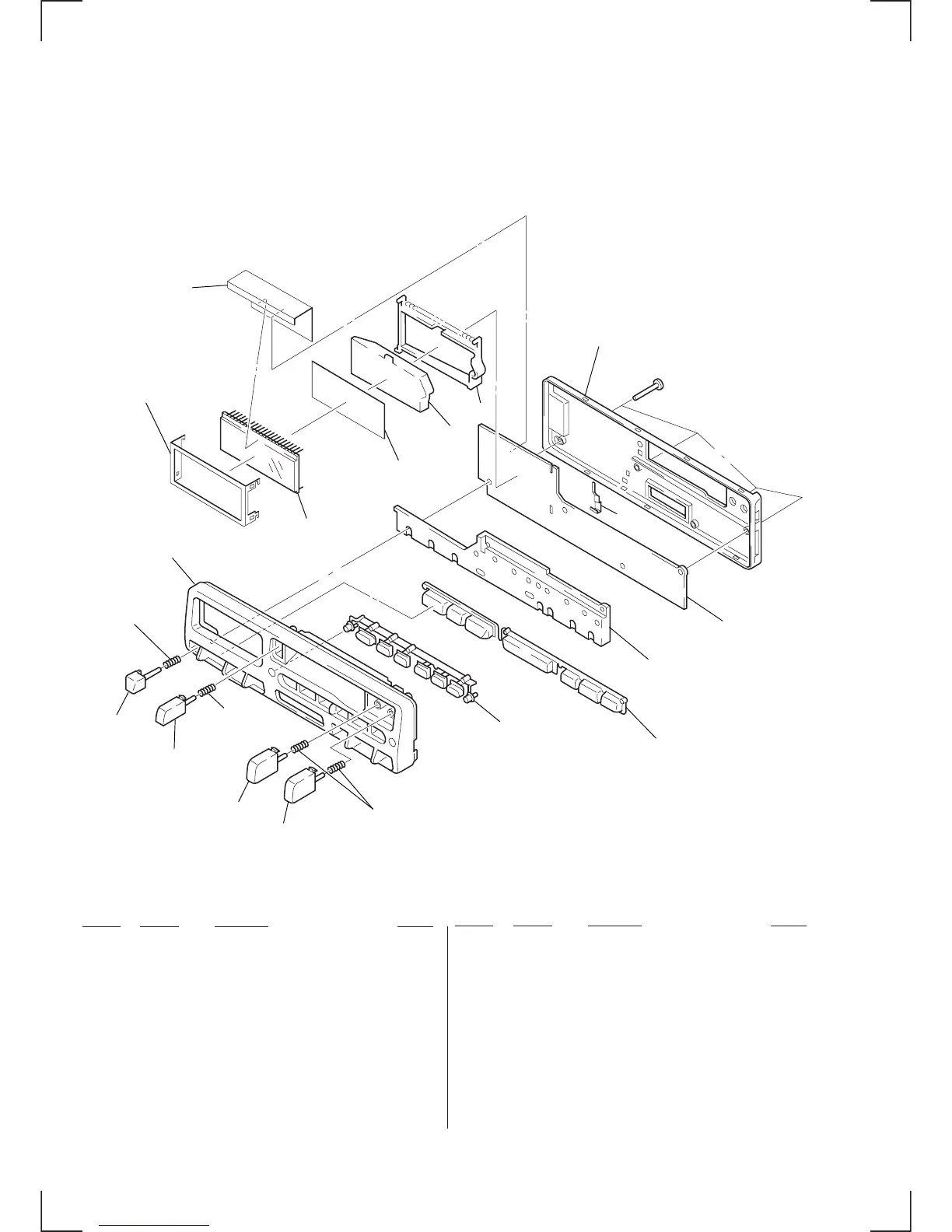

(2) FRONT PANEL SECTION
51 3-375-372-01 SPRING (F/R)
52 3-022-485-01 BUTTON (FF) ())
53 3-022-486-01 BUTTON (REW) (0)
54 3-029-327-01 SPRING (EJECT)
55 3-022-483-01 BUTTON (EJECT) (6)
56 3-022-484-01 BUTTON (RELEASE)
57 3-029-328-01 SPRING (RELEASE)
58 3-022-473-41 PANEL, FRONT
* 59 3-029-527-01 PLATE (LCD), GROUND
* 60 3-029-528-01 ILLUMINATOR
* 61 3-027-172-01 INSULATED PLATE (L)
* 62 3-029-526-01 PLATE, LIGHT GUIDE
63 3-022-474-01 PANEL, FRONT BACK
* 64 3-022-468-01 PLATE, GROUND
* 65 3-022-478-01 PLATE, LIGHT GUIDE
66 3-022-480-01 BLOCK (A), BUTTON
(–. SEL. +. –. SEEKMANU. +. LOUD. TUNER. OFF)
67 3-029-524-01 BLOCK (C), BUTTON
(DSPL. 1. 2. 3. 4. 5. 6. AF/TA)
* 68 3-029-525-01 HOLDER (LCD)
LCD900 1-801-232-11 DISPLAY PANEL, LIQUID CRYSTAL
62
61
60
59
58
57
56
55
54
53
52
51
67
66
65
not supplied
(KEY board)
64
#5
63
LCD900
68
To Next Page
