Sony XR-1800R Service Manual

– 35 –

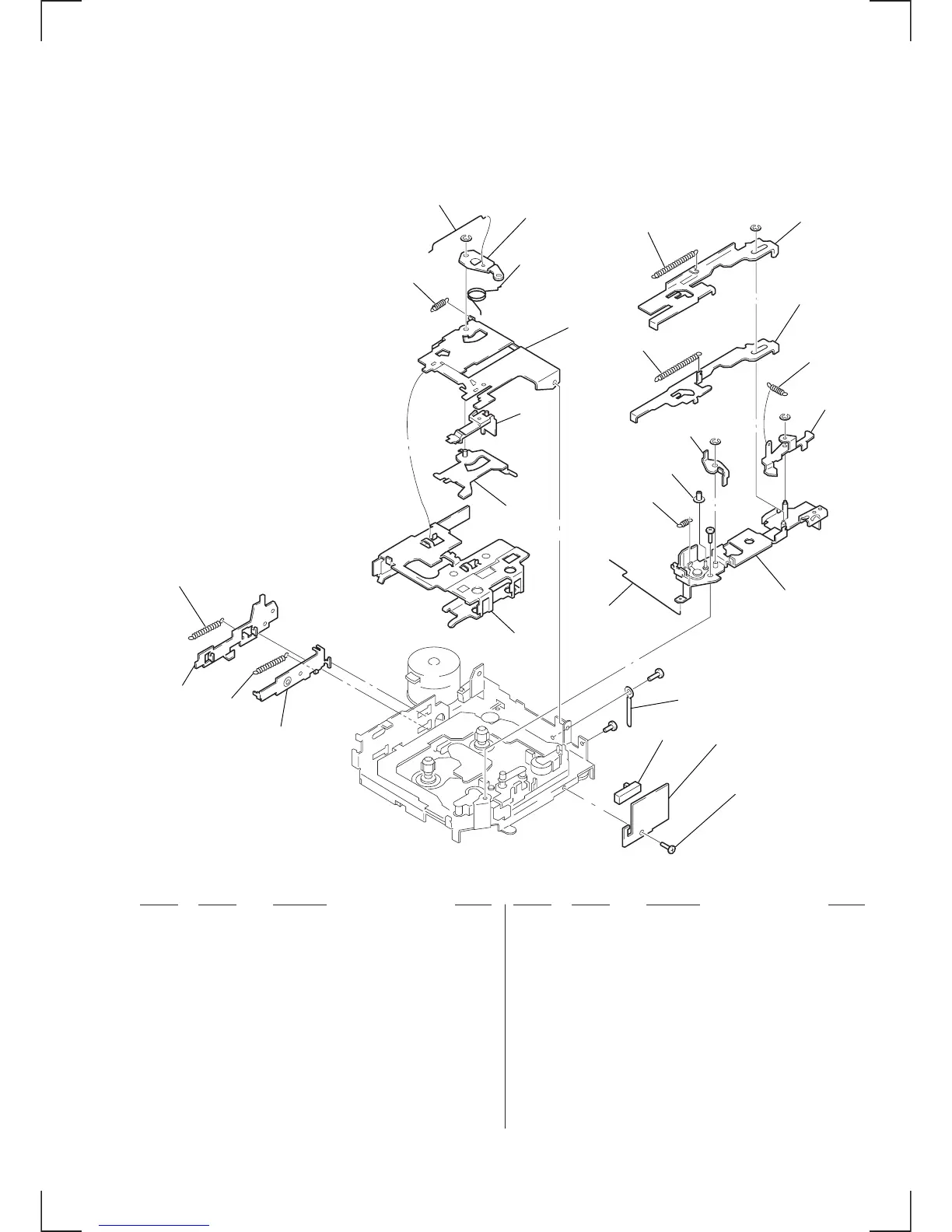

(3) MECHANISM DECK SECTION-1
(MG-36SZ9-32)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-938-660-01 LEVER, EJECT
102 3-392-950-01 SPRING
103 3-392-951-01 SPRING
104 3-375-384-01 HOLDER (X), CASSETTE
* 105 3-392-921-01 LOCK ASSY, EJECT CAM
106 3-392-972-01 HOOKER, TAPE
107 3-392-953-01 SPRING
108 3-392-969-01 LINK, RETURN
* 109 3-392-932-01 PLATE, CENTER
110 3-392-961-01 SPRING (B)
111 3-375-383-01 HANGER (X), CASSETTE
112 3-372-243-01 LINK (B), SELECTOR
113 3-392-954-01 SPRING
114 3-392-994-01 ROLLER, PROGRAM
* 115 3-392-933-01 LEVER (B), CHANGE
116 3-392-948-01 SPRING
117 3-938-658-01 LEVER, FF
118 3-938-659-01 LEVER, REW
119 3-392-917-01 SPRING
* 120 3-392-935-01 ARM, LOCK
* 121 3-372-242-01 BRACKET ASSY (D), LEVER
122 3-392-970-01 CHASSIS, SWITCH
(DIRECTION SWITCH BOARD)
* 123 4-908-792-11 SCREW (B2)
S901 1-692-502-11 SWITCH, SLIDE (DIRECTION)
123
122101
102
103
104
112
121
113
114
115
120
119
118
117
116
116
109
110
111
106
105
107
108
not supplied
not supplied
#10
#4
#9
#14
#12
#13
#13
S901
