– 36 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 3-570-615-02 POLY-WASHER (DIA.1.2)
152 3-392-945-01 ROLLER (A), H.P
153 3-392-942-01 ROLLER (B), H.P
154 3-375-378-01 ARM (R) ASSY, PINCH
155 3-392-958-01 SPRING (R)
* 156 3-392-975-05 PLATE ASSY (S), HEAD
157 3-377-908-01 SHIM (X), ADJUSTOR
158 3-392-956-01 SPRING (A)
159 3-392-943-01 ROLLER, FF
160 3-676-387-00 POLY-SLIDER (DIA.1.6)
* 161 3-392-930-01 RETAINER, SPRING
162 3-392-955-01 SPRING (A)
163 3-375-379-01 SCREW, AZIMUTH
* 164 3-379-142-01 ARM (B), ADJUSTOR
165 3-392-984-02 GUIDE, TAPE
166 3-377-909-02 LINK (X), ADJUSTOR
167 3-392-957-01 SPRING (F)
168 3-375-377-01 ARM (F) ASSY, PINCH
169 3-392-952-01 SPRING
170 3-392-962-01 SPRING
* 171 3-392-919-01 ARM ASSY, F,R SELECTION
172 3-372-244-01 ARM (N), MUTE
* 173 3-397-427-01 COLLAR, MUTE ARM
HP901 1-543-717-11 HEAD, MAGNETIC (PLAYBACK)

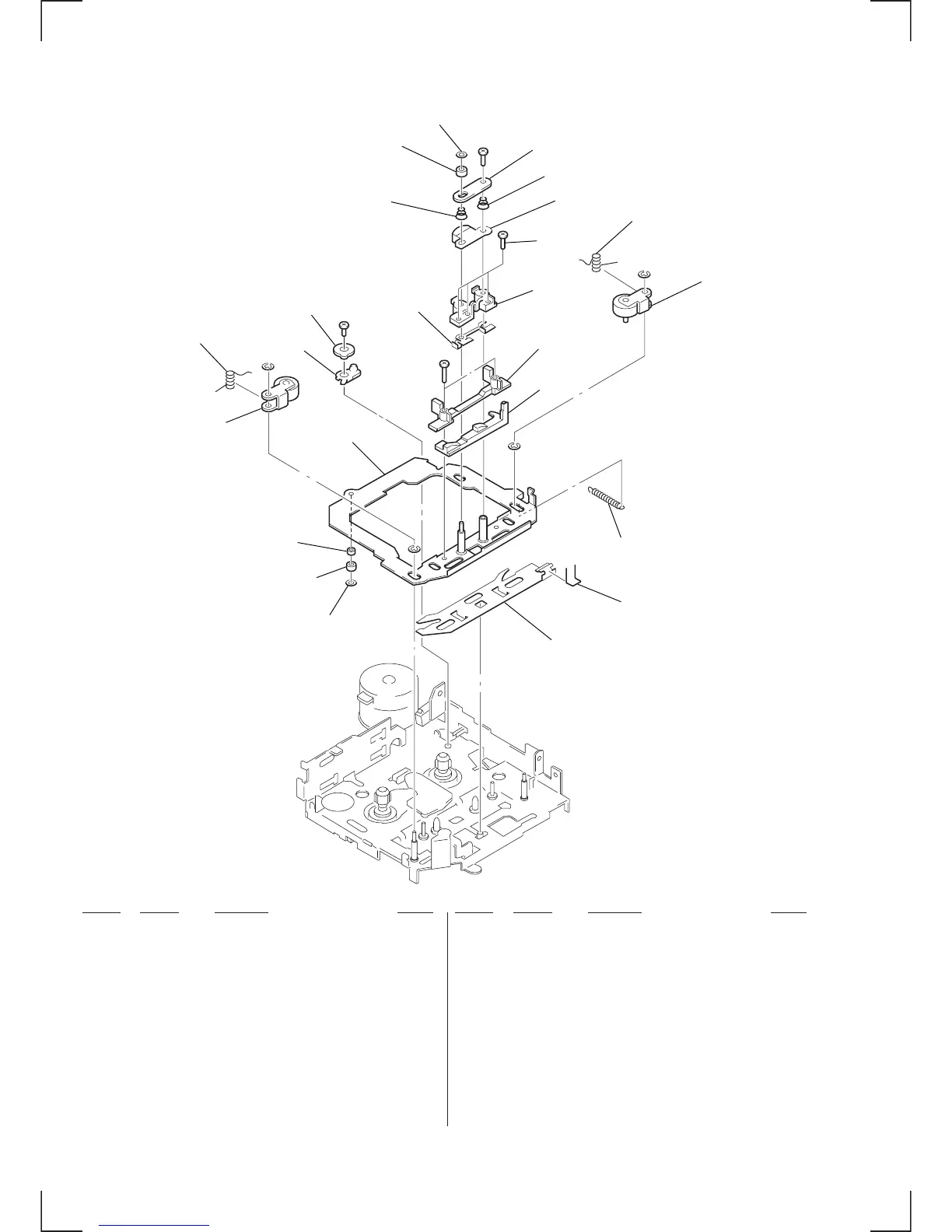

(4) MECHANISM DECK SECTION-2
(MG-36SZ9-32)
160
159
158
161
162
163
164
167
168
165
166
157173
172
155
154
156
153
152
151
171
170
169
#14
#14
#6
#11
#12
#8
HP901
#12
To Next Page
