Sony XR-1800R Service Manual

– 37 –
201 3-392-959-01 SPRING
202 3-392-985-02 RATCHET
* 203 4-908-792-11 SCREW (B2)
204 3-392-960-01 SPRING
205 3-392-987-01 GEAR, SELECTOR
206 3-392-990-01 GEAR, DETECTION
207 3-676-387-00 POLY-SLIDER (DIA.1.6)
208 3-392-944-01 COLLAR (SELECTOR GEAR)
209 3-375-131-01 SPRING, GEAR LOCK ARM
210 3-392-989-02 ARM, GEAR LOCK
211 3-392-937-01 GEAR (B)
212 3-570-615-02 POLY-WASHER (DIA.1.2)
213 3-392-915-01 GEAR, IDLE
214 3-392-986-01 ARM, SENSOR
215 3-392-936-01 GEAR (A)
216 3-376-196-01 SPINDLE ASSY (S), REEL
217 3-375-380-01 CAM ASSY, DETECTION
218 3-370-619-01 SPRING, BACK TENSION
* 219 3-392-976-01 BASE ASSY, REEL

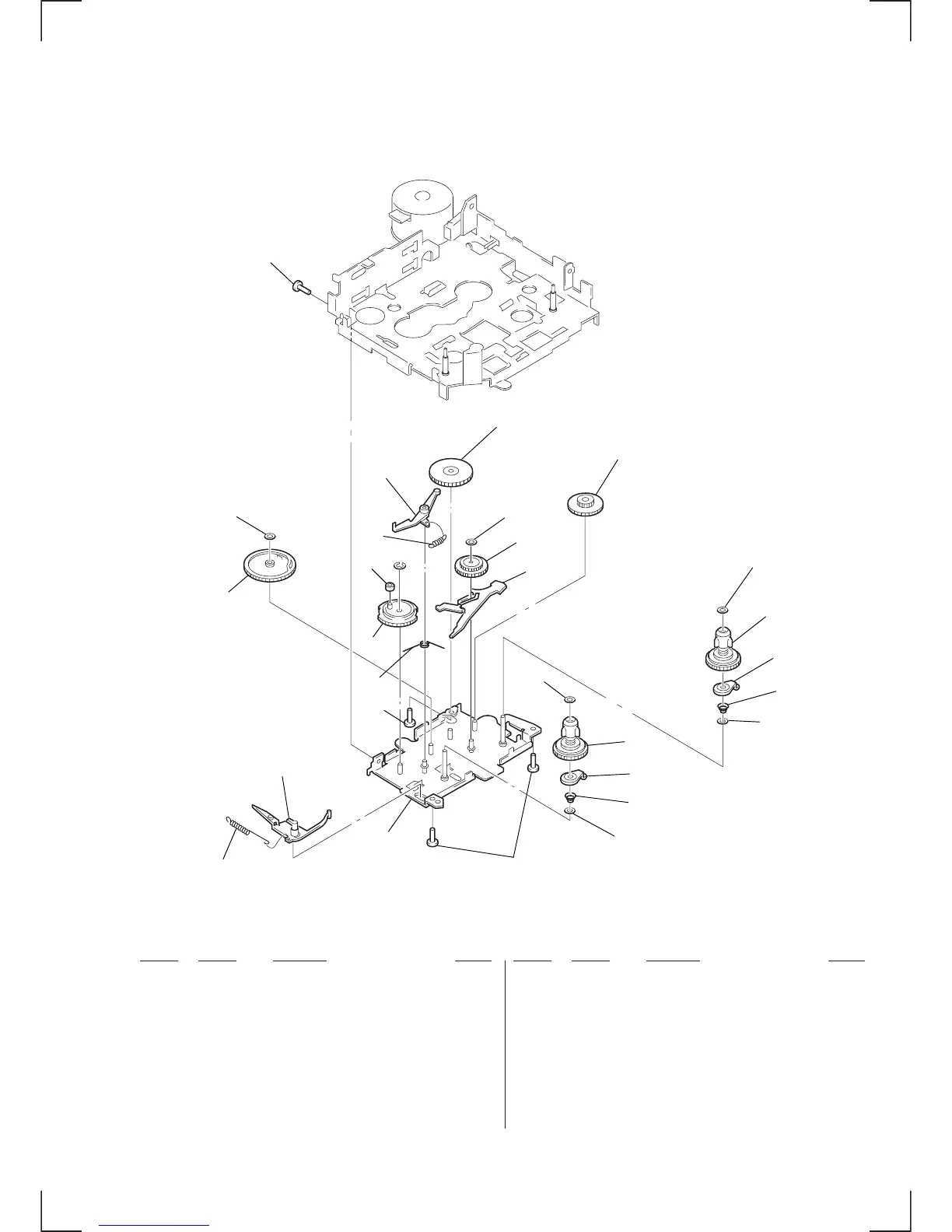

(5) MECHANISM DECK SECTION-3
(MG-36SZ9-32)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
not supplied
not supplie
d
#13
201
202
219
203
207
216
217
218
207
216
217
218
206
207
205
208
209
210
211
212
213
214
215
203
203
204
