– 38 –
251 3-392-967-01 BELT, MAIN
252 3-392-995-02 FLYWHEEL ASSY (BR)
253 3-375-375-02 BELT (C), SUB
254 3-392-918-01 SCREW, EJECT HOOK
255 3-392-938-01 GEAR, PULLY
* 256 3-392-979-01 LEVER, REVERSE
257 3-392-916-01 ARM ASSY, TU GEAR
260 3-318-203-11 SCREW (B1.7X6), TAPPING
261 3-701-437-11 POLY-SLIDER (A)
262 3-590-768-00 RING (A), E
263 3-318-204-81 SCREW (M1.7X3), TAPPING
* 264 3-375-381-01 BRACKET ASSY (X), CM
265 3-392-963-01 SPRING (R)
266 3-318-204-91 SCREW (M1.7X4), TAPPING
267 3-375-376-01 MUTE (PWB) (MUTE SWITCH BOARD)
* 268 3-392-925-01 ARM (A) ASSY, F.R
* 269 3-392-939-01 ARM, FF
* 270 3-392-934-01 ARM (B), F.R
271 3-570-615-02 POLY-WASHER (DIA.1.2)
272 3-392-941-01 PULLEY (A), IDLE
273 3-392-926-02 FLYWHEEL ASSY (BF)
274 3-713-786-51 SCREW +P 2X3
M901 X-3364-496-1 MOTOR ASSY (CAPSTAN/REEL)
S902 1-692-065-11 SWITCH, LEAF (FF/REW)
S903 1-554-790-21 SWITCH, POWER (TAPE DETECT)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

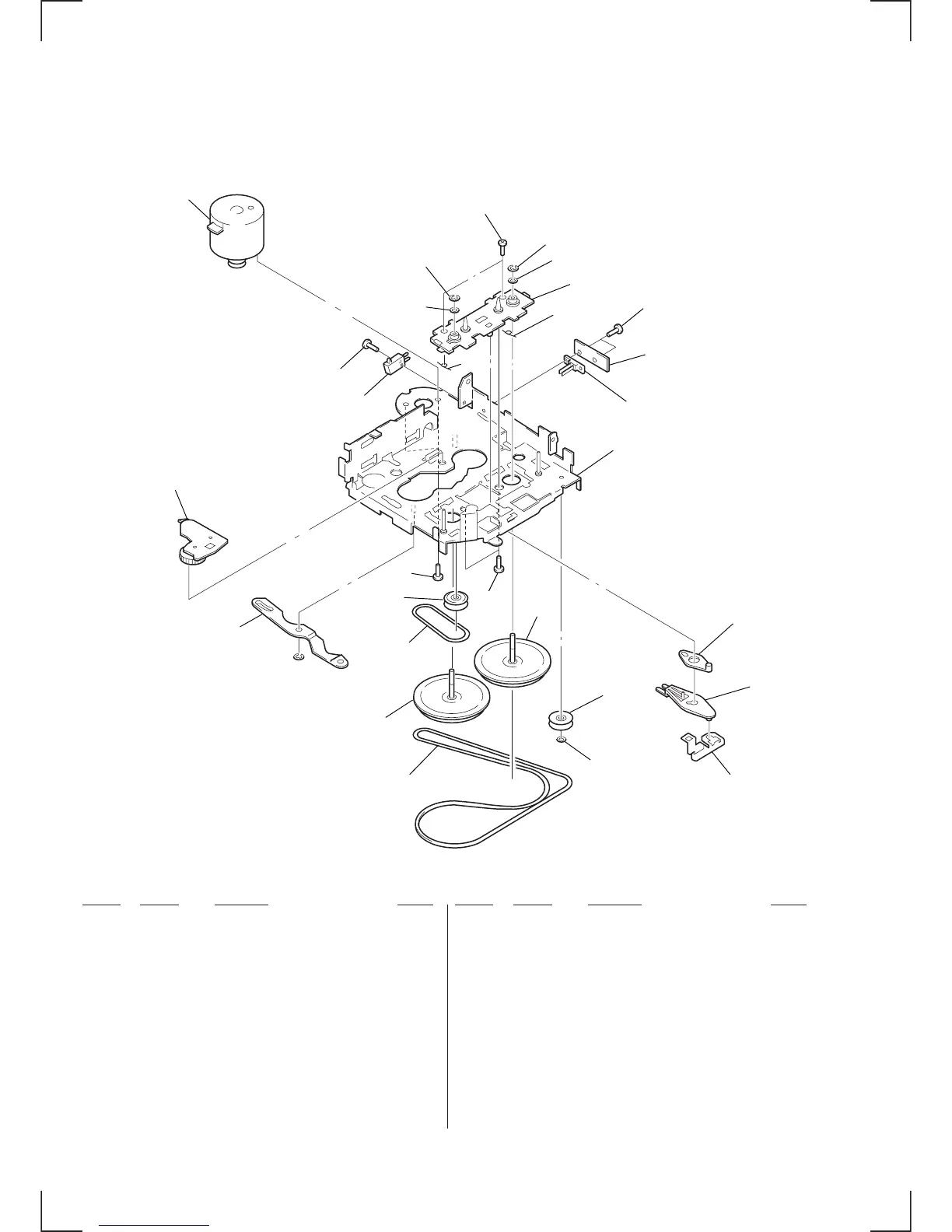

(6) MECHANISM DECK SECTION-4
(MG-36SZ9-32)
262
261
264
266
265
267
265
261
263
262
260
255
254
273
274
253
252
251
271
272
268
269
270
256
257
M901
#13
not supplied
S902
S903
To Next Page
