Sony XR-55A80K - Page 25

CONNECTOR
25
REF.
NO
PART NO. DESCRIPTION REMARKS
1
1-014-495-11
CONNECTOR ASSY 28P (GB) CN6401(G25/G25B)-CN1700(BM5STY)(1)
2
1-014-509-11
CONNECTOR ASSY 28P (GT)
CN6601(G25/G25B)-CN6(TCON)-
CN8(TCON)(1)
3
1-014-664-11
FLEXIBLE FLAT CABLE 41P CN4201(BM5STY)-CN7(TCON)(1)
4
1-014-666-11
FLEXIBLE FLAT CABLE 51P CN4200(BM5STY)-CN5(TCON)(1)
5
1-014-658-11
FLEXIBLE FLAT CABLE 20P CN3801(BM5STY)-J1(WIFI/BT)(1)
6
1-014-660-11
FLEXIBLE FLAT CABLE 25P CN1200(BM5STY)-CN102(HY1)(1)
7
1-014-508-11
CONNECTOR ASSY 4P (SP) CN6600(BM5STY)-SP(1)
8
1-014-491-11
CONNECTOR ASSY 6P CN6601(BM5STY)-PZ-EXCITER(1)
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SMART CORE APPENDIX

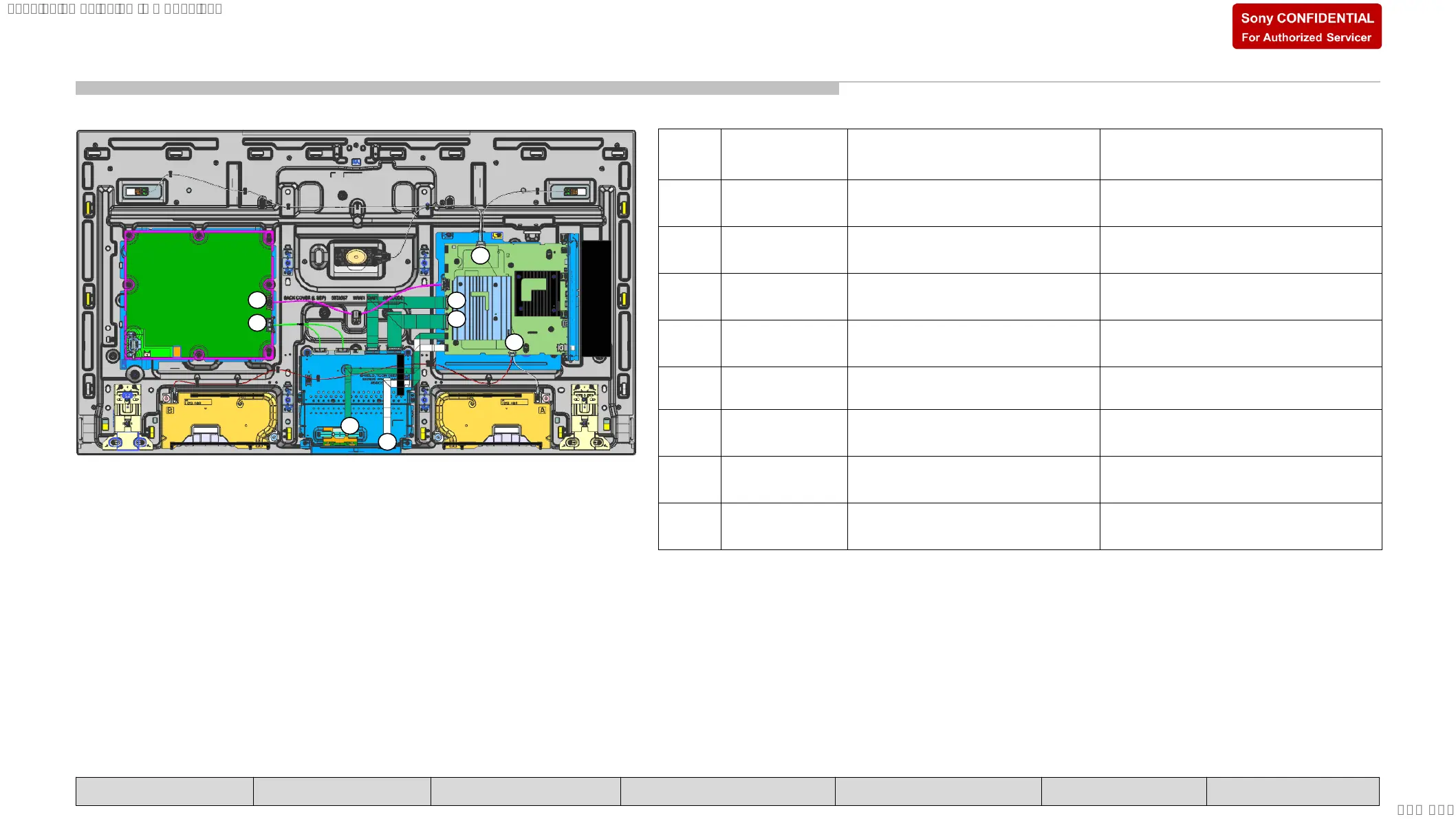

1-4. EXPLODED VIEW AND PART LIST
3
4
6
5
7
8
1
2
SECTION 1: XR-55A8*K
