Sony XR-C7220R Service Manual

XR-C7220R
– 33 –
– 34 –

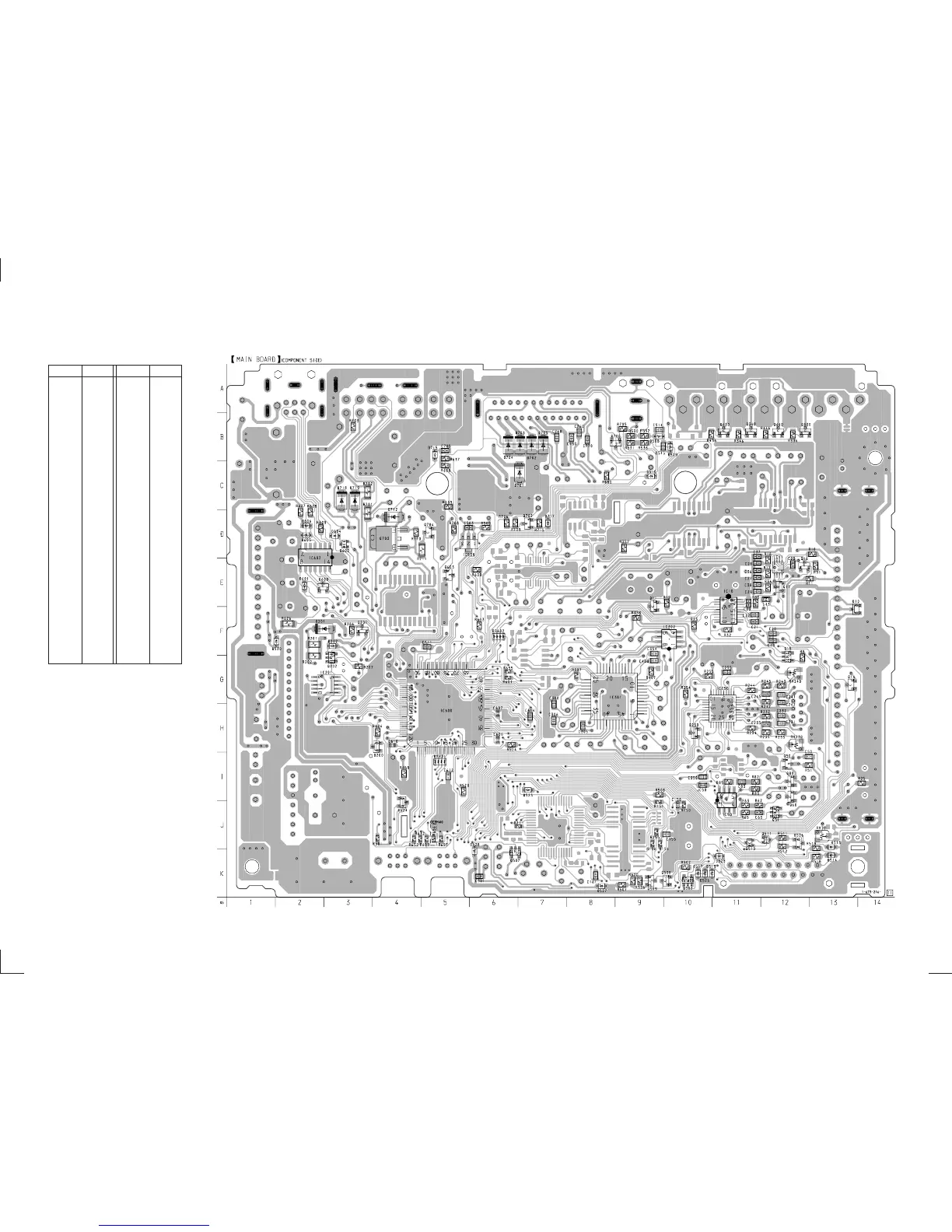

6-6. PRINTED WIRING BOARD – MAIN Board – (Component Side)
• Semiconductor Location
(Component Side)
Ref. No. LocationRef. No. Location
D10 F-13
D200 H-4
D201 F-2
D202 F-3
D506 J-12
D508 B-9
D509 B-10
D510 C-9
D513 J-13
D514 K-13
D517 K-10
D519 K-10
D523 I-7
D524 J-4
D525 K-11
D526 K-10
D527 K-8
D528 K-6
D530 F-2
D601 E-2
D604 D-3
D605 D-2
D606 D-2
D701 C-7
D702 B-7
D703 B-7
D704 B-6
D705 B-7
D712 D-4
D715 B-5
D717 D-7
D718 C-3
D719 C-3
IC10 F-11
IC11 E-12
IC50 J-11
IC201 G-3
IC250 H-11
IC301 G-8
IC302 F-10
IC500 D-5
IC600 H-5
IC602 D-2
Q11 E-9
Q14 G-13
Q15 G-12
Q16 E-12
Q17 E-12
Q50 I-12
Q51 J-12
Q60 I-12
Q80 I-12
Q201 F-3
Q202 G-3
Q250 H-10
Q330 B-12
Q340 B-11
Q430 B-11
Q440 B-12
Q502 K-10
Q507 K-6
Q508 K-10
Q509 K-9
Q510 J-11
Q511 J-12
Q600 E-2
Q602 D-3
Q603 E-5
Q700 B-9
Q702 D-7
Q703 D-4
Q704 D-5
