Sony XR-C7220R Service Manual

XR-C7220R
– 35 –
– 36 –

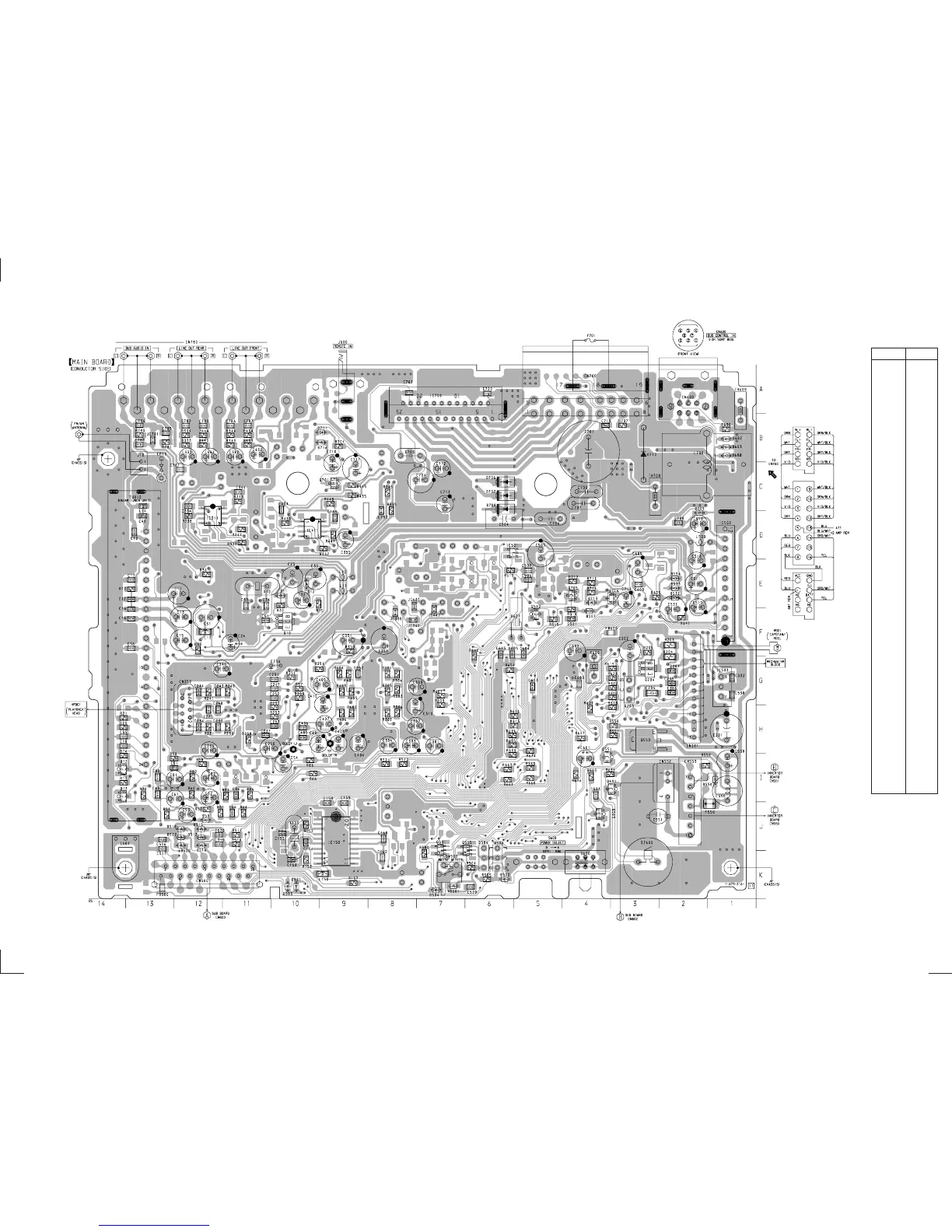

6-7. PRINTED WIRING BOARD – MAIN Board – (Conductor Side)
• Semiconductor
Location
(Conductor Side)
Ref. No. Location
D11 E-10
D12 E-10
D50 J-12
D501 K-7
D502 K-6
D503 K-10
D504 K-7
D507 F-4
D512 J-12
D515 J-12
D516 J-12
D518 J-12
D520 J-12
D521 K-10
D522 J-12
D532 E-2
D533 E-2
D534 E-2
D550 I-1
D602 B-1
D603 B-1
D608 B-1
D706 C-6
D707 C-6
D708 C-6
D709 D-2
D710 B-3
D711 B-9
D713 E-4
D714 E-3
D716 B-9
IC150 J-9
IC311 D-12
IC411 D-10
IC501 D-6
IC502 E-1
IC503 G-1
IC700 A-7
Q10 F-10
Q12 I-14
Q13 I-14
Q203 G-3
Q204 G-3
Q501 J-7
Q503 J-4
Q504 K-6
Q505 J-6
Q506 K-6
Q512 F-5
Q550 H-3
Q551 I-4
Q601 I-3
Q701 C-9
Q705 E-4
(Page 49)
(Page 49)
(Page 49)
(Page 49)
