Sony XR-C7220R Service Manual

– 12 –

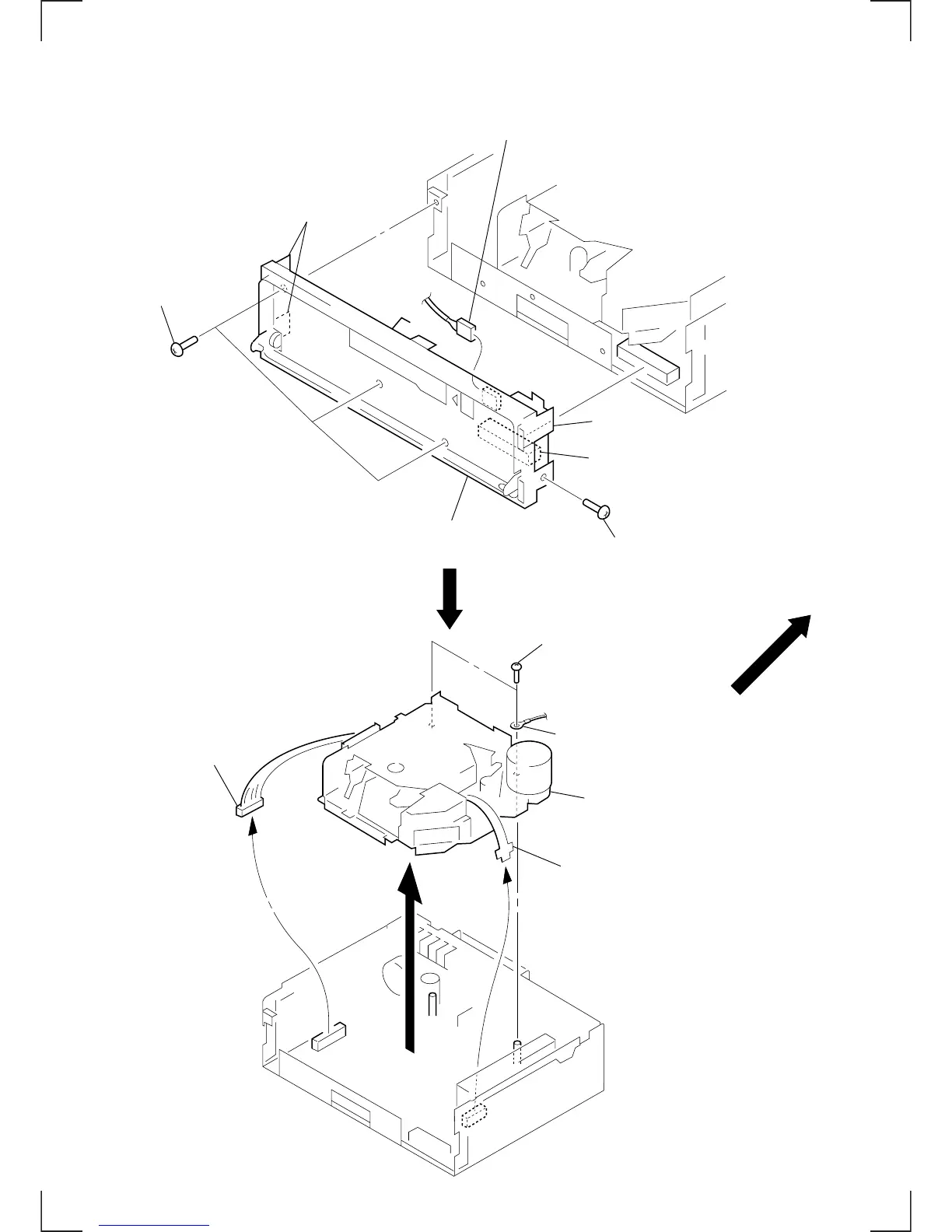

SECTION 2
DISASSEMBLY
SUB PANEL ASS’Y
MECHANISM DECK (MG-25D-136)
Note: Follow the disassembly procedure in the numerical order given.
2 three screws
(PTT2.6 × 6)
2 screw
(PTT2.6 × 6)
5 sub panel ass’y
1 connector
(CN802)
3 two claws
3 claw
4 connector
(CN500)
1 connector
(CN201)
3 two screws
(2.6 × 6)
4 lag
5 mechanism deck
(MG-25D-136)
2 flexible flat cable
(CN250)
