Sony XR-C7220R Service Manual

XR-C7220R
– 45 –
– 46 –

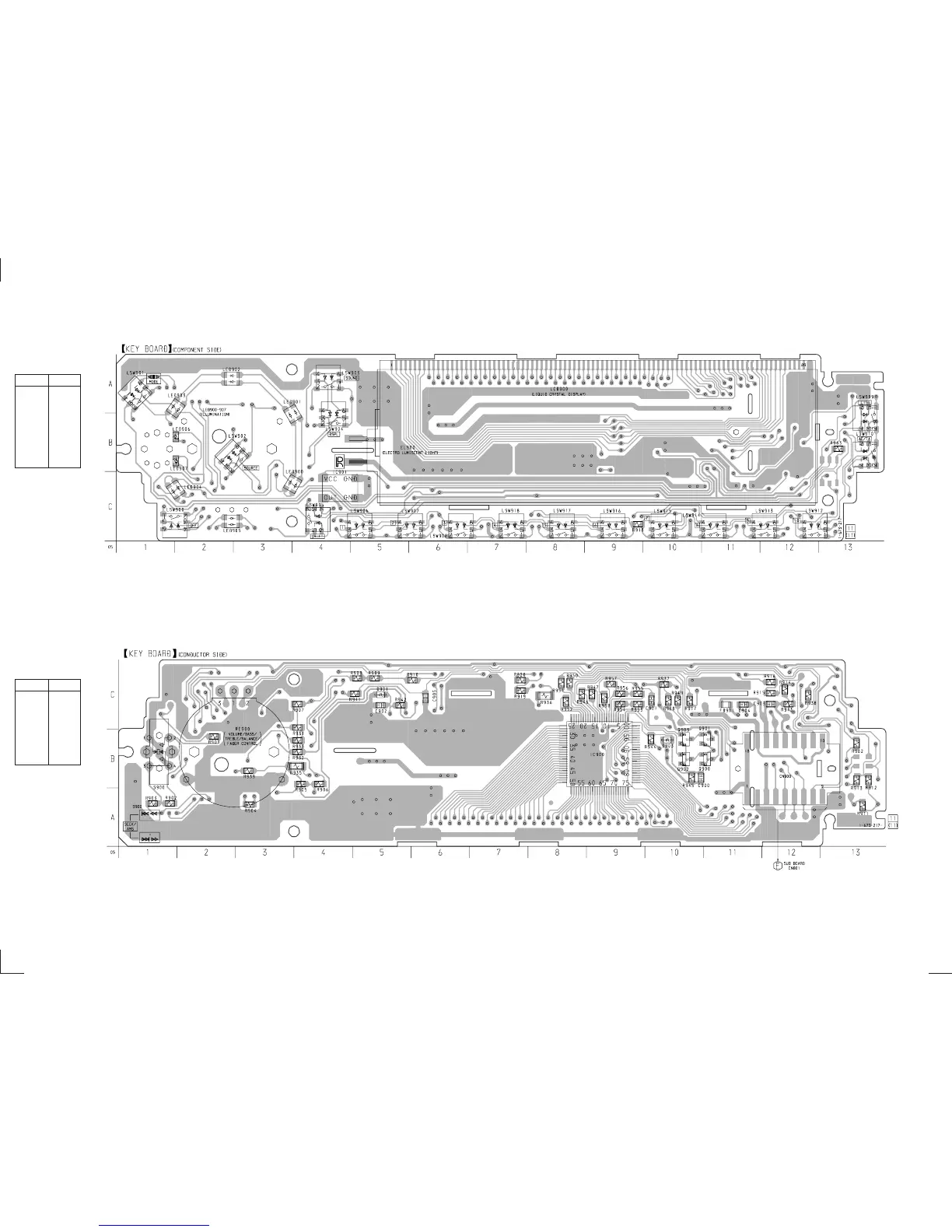

6-12. PRINTED WIRING BOARD – KEY Board –
• Semiconductor
Location
(Component Side)
Ref. No. Location
IC901 C-4
LED900 C-4
LED901 A-4
LED902 A-2
LED903 A-2
LED904 C-2
LED905 C-2
LED906 B-2
LED907 B-2
D901 C-5
D903 B-10
IC900 B-9
Q900 B-11
Q901 B-11
Q902 B-10
Q903 B-10
• Semiconductor
Location
(Conductor Side)
Ref. No. Location
(Page 49)
