Sony XR-C7220R Service Manual

– 53 –

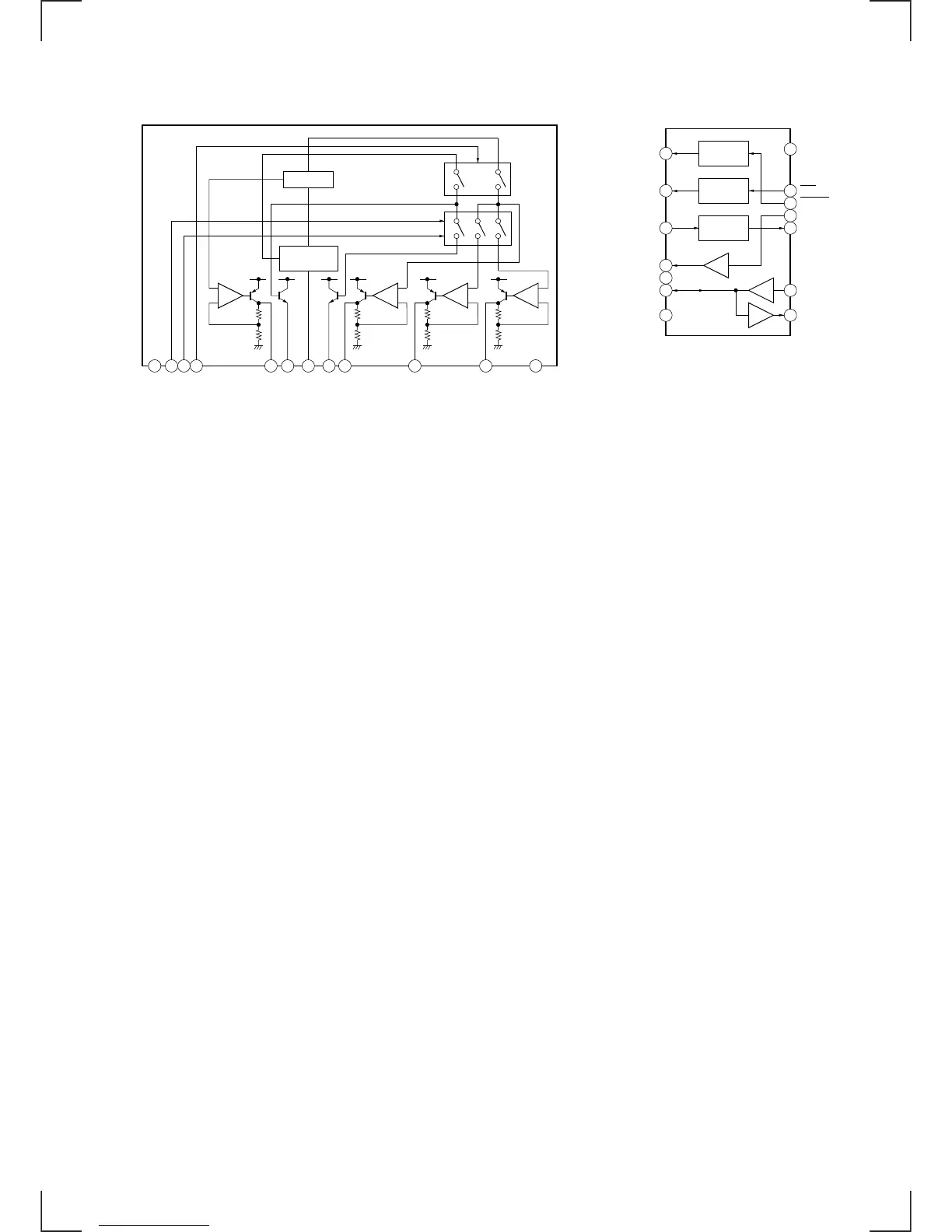

IC502 BA3918-V3
+
–
+
–
+
–
+
–
OVER VOLTAGE
PROTECT
REGULATOR
1
2 3
4
5 6 7 8 9 10 1211
NC
MODE2 MODE1
STB
VDD
AMP
VCC ANT
COM
AM
FM
GND
IC602 BA8270F-E2
1
2
3
4
5
6
7 8
9
10
14
13
12
11
BUS ON
SWITCH
RESET
SWITCH
BATTERY
SWITCH
BUS ON
RST
BATT
CLK
VREF
DATA
GND
VCC
RST
BUS ON
CLK IN
BU IN
DATA IN
DATA OUT
