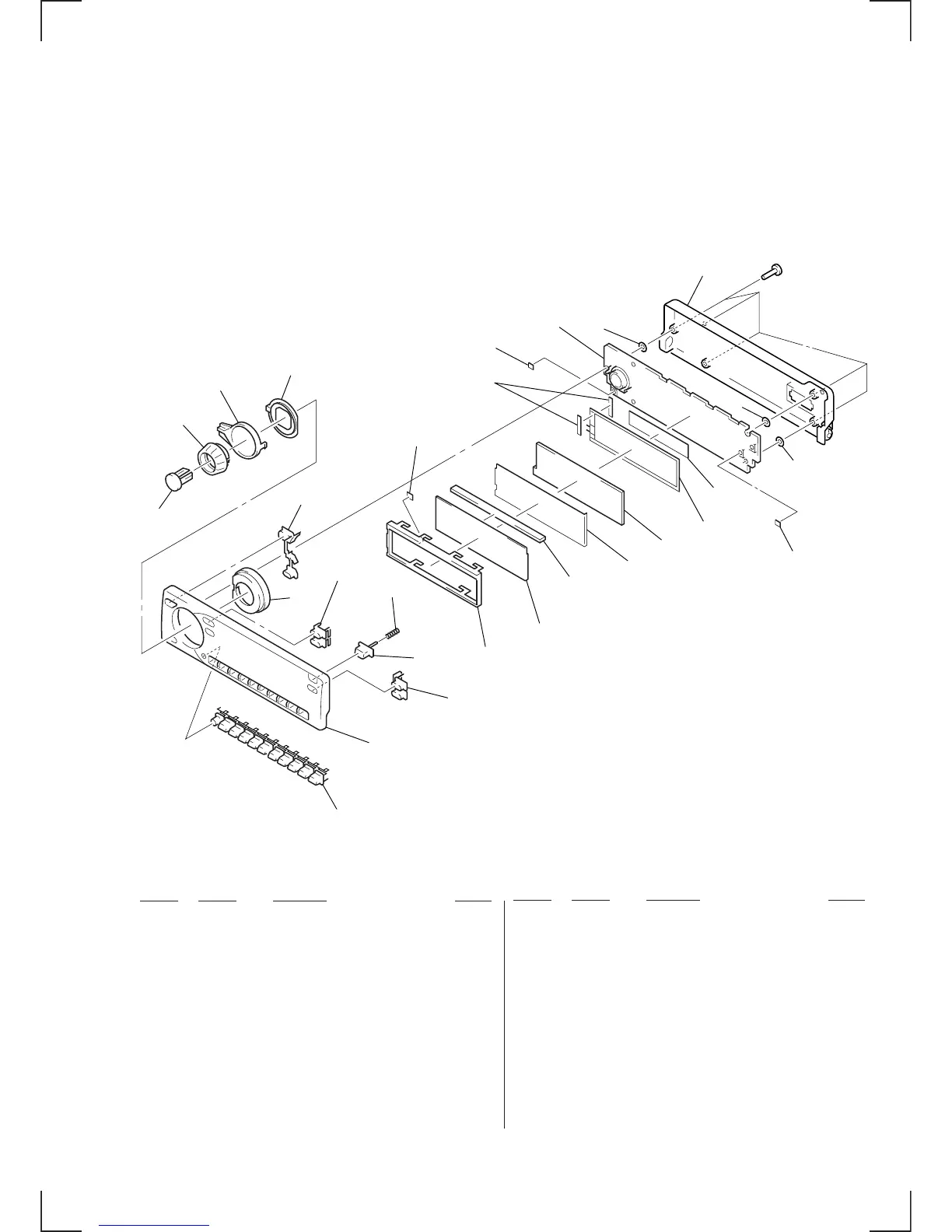

(2) FRONT PANEL SECTION
51 X-3377-533-1 PANEL SUB ASSY, FRONT
52 3-022-332-01 BUTTON (10 KEY)
(SHIFT. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10)
53 3-022-329-03 BUTTON (SOURCE)
54 3-033-667-02 KNOB (VOL)
55 3-022-323-24 LEVER (SHUTTLE)
(+ + ). = 0 –. SEEK/AMS)
56 3-022-324-02 PLATE (SHUTTLE), LIGHT GUIDE
57 3-022-330-01 BUTTON (MODE) (MODE *. OFF)
58 3-022-325-01 PLATE (RING), LIGHT GUIDE
59 3-022-331-01 BUTTON (SOUND) (SOUND. DSPL)
60 3-932-225-01 SPRING (OPEN)
61 3-022-333-01 BUTTON (OPEN)
62 3-022-308-01 BUTTON (PTY. AF/TA)
* 63 3-022-327-01 PLATE (LCD), GROUND
64 1-694-414-11 CONDUCTOR BOARD, CONNECTION
* 65 3-034-558-01 ILUMINATOR (LCD)
* 66 3-022-326-03 PLATE (LCD), LIGHT GUIDE
67 3-017-984-01 TAPE (EL), DOUBLE STICK
68 3-327-119-01 SPACER (A)
69 3-023-554-01 SEET (EL), ADHESIVE
70 3-027-109-01 WASHER, POLYETHYLENE
71 X-3375-085-4 PANEL ASSY, FRONT BACK
EL900 1-517-766-11 LIGHT, ELECTRO LUMINESCENT
LCD900 1-803-504-11 DISPLAY PANEL, LIQUID CRYSTAL
