ZS-S2iP
SECTION 6
EXPLODED VIEWS
1 3-268-441-01 LID, BATTERY CASE (for WHITE)
1 3-268-441-11 LID, BATTERY CASE (for BLACK)
2 3-252-833-01 SCREW (M3), (+) P
3 3-252-827-01 SCREW (B2.6), (+) BV TAPPING (for WHITE)
3 3-252-827-11 SCREW (B2.6), (+) BV TAPPING (for BLACK)
4 3-229-975-01 SPRING, BATTERY (–)
5 3-252-540-01 SPRING (+.–), BATTERY
6 2-654-073-01 TERMINAL, ANTENNA
7 A-1336-412-A POWER BOARD, COMPLETE
8 3-268-440-01 CABINET (REAR) (for WHITE) (US)
8 3-268-440-11 CABINET (REAR) (for BLACK) (US)
8 3-268-440-21 CABINET (REAR) (for WHITE) (CND)
8 3-268-440-31 CABINET (REAR) (for BLACK) (CND)
9 3-831-441-99 SHEET (1)
10 3-831-441-99 CUSHION (LCD)
11 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
12 4-951-620-61 SCREW (2.6)
ANT2 1-754-376-11 ANTENNA, TELESCOPIC (FM)
0F902 1-533-469-12 FUSE, GLASS TUBE (DIA. 5) (2.5A/250V)
0J901 1-540-009-12 INLET, AC (- AC IN)
0T901 1-445-321-11 TRANSFORMER, POWER
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
•Abbreviation
CND: Canadian model

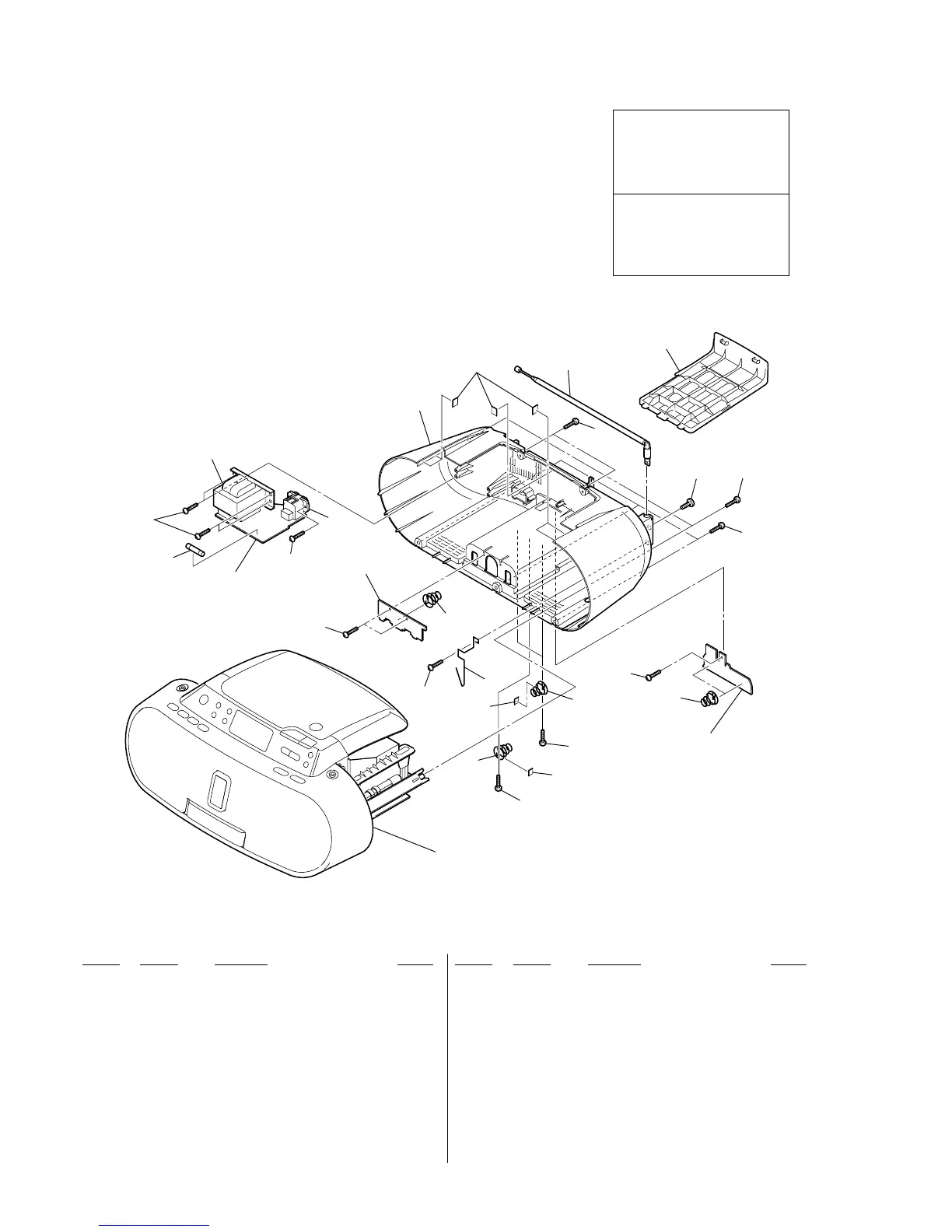

6-1. REAR CABINET SECTION
RR
ANT2
not supplied
(BATTERY (1) board
front cabinet section,
upper cabinet section
not supplied
(BATTERY (2) board)
T901
F902
4
3
3
11
11
11
12
11
3
3
3
6
4
7
1
2
8
9
9
10
5
5
J901
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
To Next Page
