ZS-S2iP

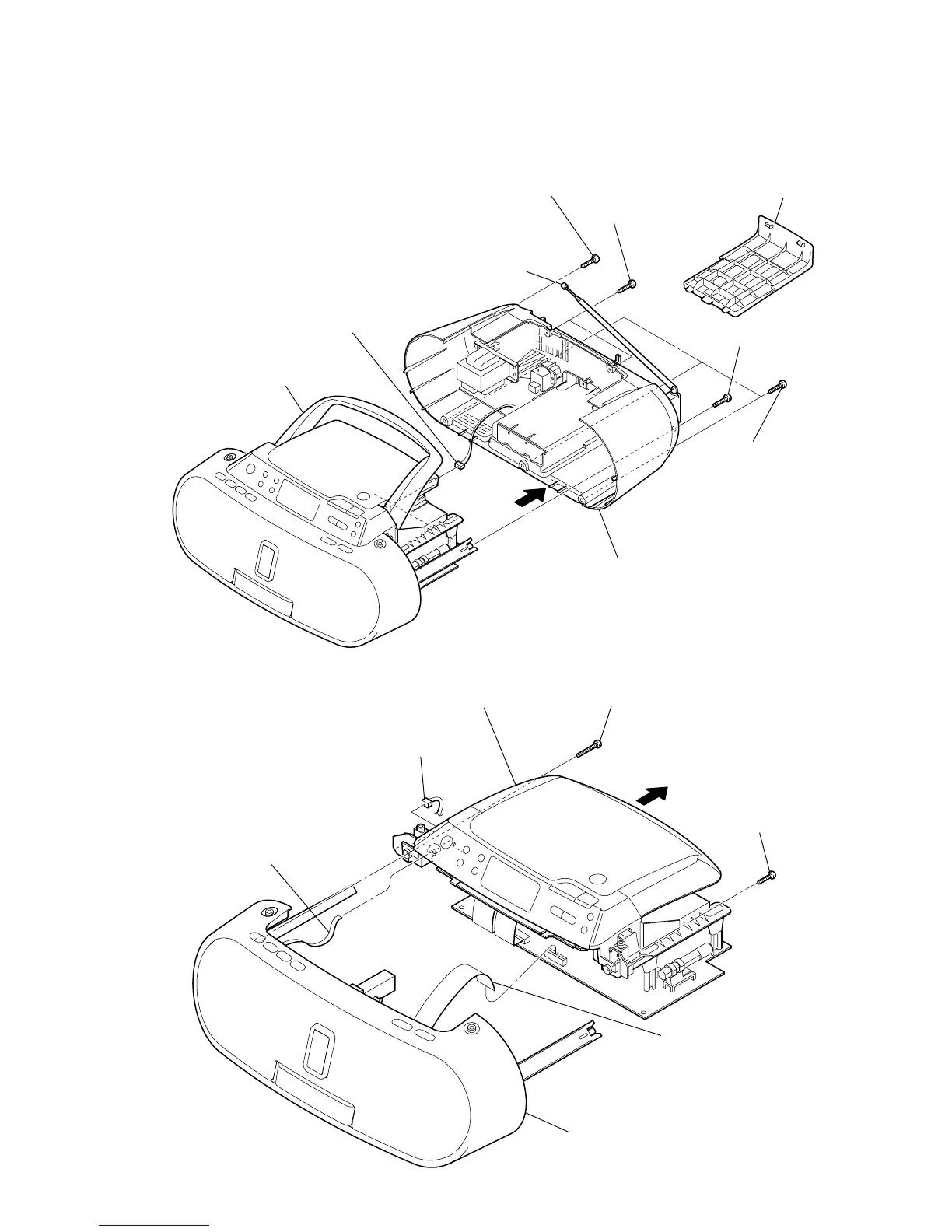

3-2. CABINET (FRONT) ASSY, CABINET (UPPER) ASSY
Note: Follow the disassembly procedure in the numerical order given.
3-1. CABINET (REAR) ASSY
5 two screws
(+BV tapping (B2.6))
1 battery case lid
7 CN305 (5P)
8 cabinet (rear) assy
2 three screws
(+BV tapping (B2.6)
)
3 screw
(+BV tapping (B2.6))
4 screw
(+BV tapping (B2.6))
6
handle
telescopic antenna
2 screw
(+BV tapping (B2.6))
3 screw
(+BV tapping (B2.6)
)
1 CN308 (4P)
5 flexible flat cable (4 core)
(CN402)
6 flexible flat cable (15 core)
(CN805)
8 cabinet (front) assy
7 cabinet (upper) assy
