Sony ZSS2IPW - Upper Cabinet Section (2)

44
ZS-S2iP
201 3-923-736-01 COVER, CD
202 3-931-379-21 RUBBER, VIBRATION PROOF
203 3-931-379-31 RUBBER, VIBRATION PROOF
204 1-831-623-21 CABLE, FLEXIBLE FLAT (16 CORE)
0205 8-820-126-02 OPTICAL PICK-UP (KSM-213CDP/C2NP)
206 A-1336-421-A CD MOTOR BOARD, COMPLETE
207 1-831-614-21 CABLE, FLEXIBLE FLAT (6 CORE)
208 4-951-620-01 SCREW (2.6X8), +BVTP
209 A-1336-415-A REG BOARD, COMPLETE
210 3-274-789-01 HOLDER (REG)
211 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
212 2-654-055-11 CHASSIS, CD
213 3-253-143-01 SCREW (B2.6), (+) P TAPPING
214 A-1336-422-A CONTROL BOARD, COMPLETE
215 1-832-008-21 CABLE, FLEXIBLE FLAT (14 CORE)
216 1-834-623-21 CABLE, FLEXIBLE FLAT (15 CORE)
217 3-831-441-99 SHEET (1)
218 2-673-399-01 SHEET (IR), ADHESIVE
219 2-654-085-01 HOLDER, IR
220 3-268-457-01 WINDOW (LCD) (for WHITE)
220 3-268-457-11 WINDOW (LCD) (for BLACK)
221 3-280-540-01 SHEET (LCD D), ADHESIVE
222 3-280-541-01 SHEET (LCD E), ADHESIVE
223 3-280-542-01 SHEET (LCD F), ADHESIVE
224 3-255-102-01 WASHER, PETP
225 3-831-441-11 CUSHION (D)
226 X-2186-639-1 CABINET (UPPER) SUB ASSY (for WHITE)
226 X-2186-644-1 CABINET (UPPER) SUB ASSY (for BLACK)
IC401 6-600-108-01 IC RPM7140 (IR)
IC901 6-711-961-01 IC NJM2388F05
LCD401 1-802-576-11 DISPLAY PANEL, LIQUID CRYSTAL
S701 1-572-085-21 SWITCH, LEAF (LIMIT)
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

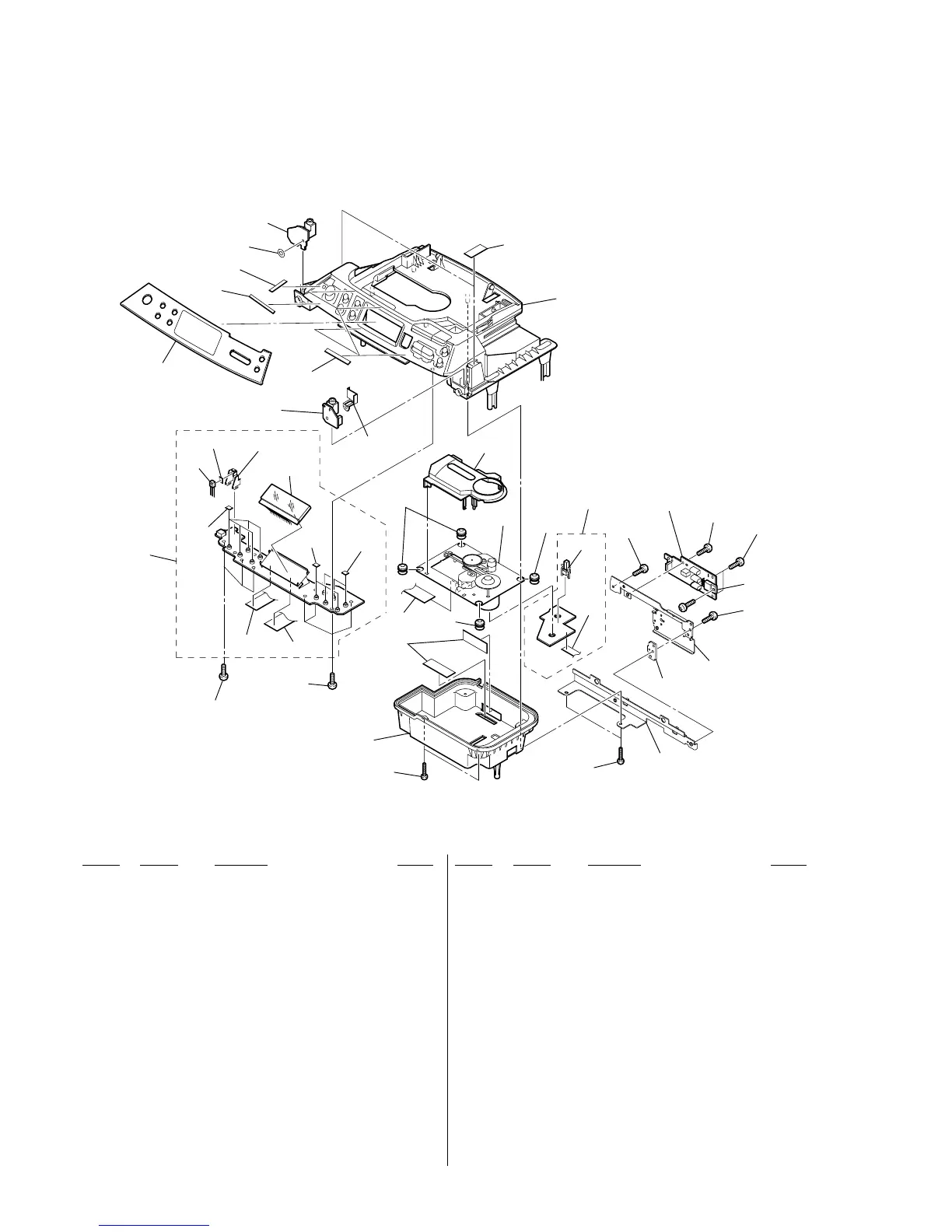

6-5. UPPER CABINET SECTION (2)
211
211
201
202
203
203
206
205
207
208
209
210
208
208
208
212
204
214
213
213
215
216
217
218
219
217
220
221
222
223
LCD401
not supplied
(AUDIO IN board)
not supplied
(HP board)
not supplied
not supplied
not supplied
not supplied
#2
IC401
S701
IC901
217
226
225
224
