32
ELECTRIC PANEL
BSS-134
CHAP.- 8
Use the terminal to:
- 1) Carry out any manual operation of each specifi c machine part (with machine in MANUAL RUN-
NING mode) from page 5 to page 9.
- 2) Select program - set up and display the working conditions relative to the program selected from
page 20 to page 22.
- 3) Set up machine from page 30 to page 32.
- 4) Set up the machine cycle time values from page 40 to page 44.
N.B. = BE CAREFUL WHEN THE TOUCH SCREEN DISPLAY SHOWS THE ALARM SYMBOL: .
= indicates that a machine failure has occurred: press and the message indicating
the type of failure will appear, with generic message relative to the wiring diagram.
ALONG WITH THE DANGER SYMBOL, ON TOUCH-SCREEN AND ELECTRIC PANEL THE RED
EMERGENCY LIGHT [4] and the multiple-light-type RED LIGHT [12] (fi xed or blinking) LIGHT UP
TO DRAW THE USER’S ATTENTION TO ONE FAILURE.
N.B = exert some pressure on the TOUCH SCREEN on one single point at a time (by simultaneously
pressing on two or more points, the terminal will act as if the user had pressed in the
intermediate point between the two or more points being touched).

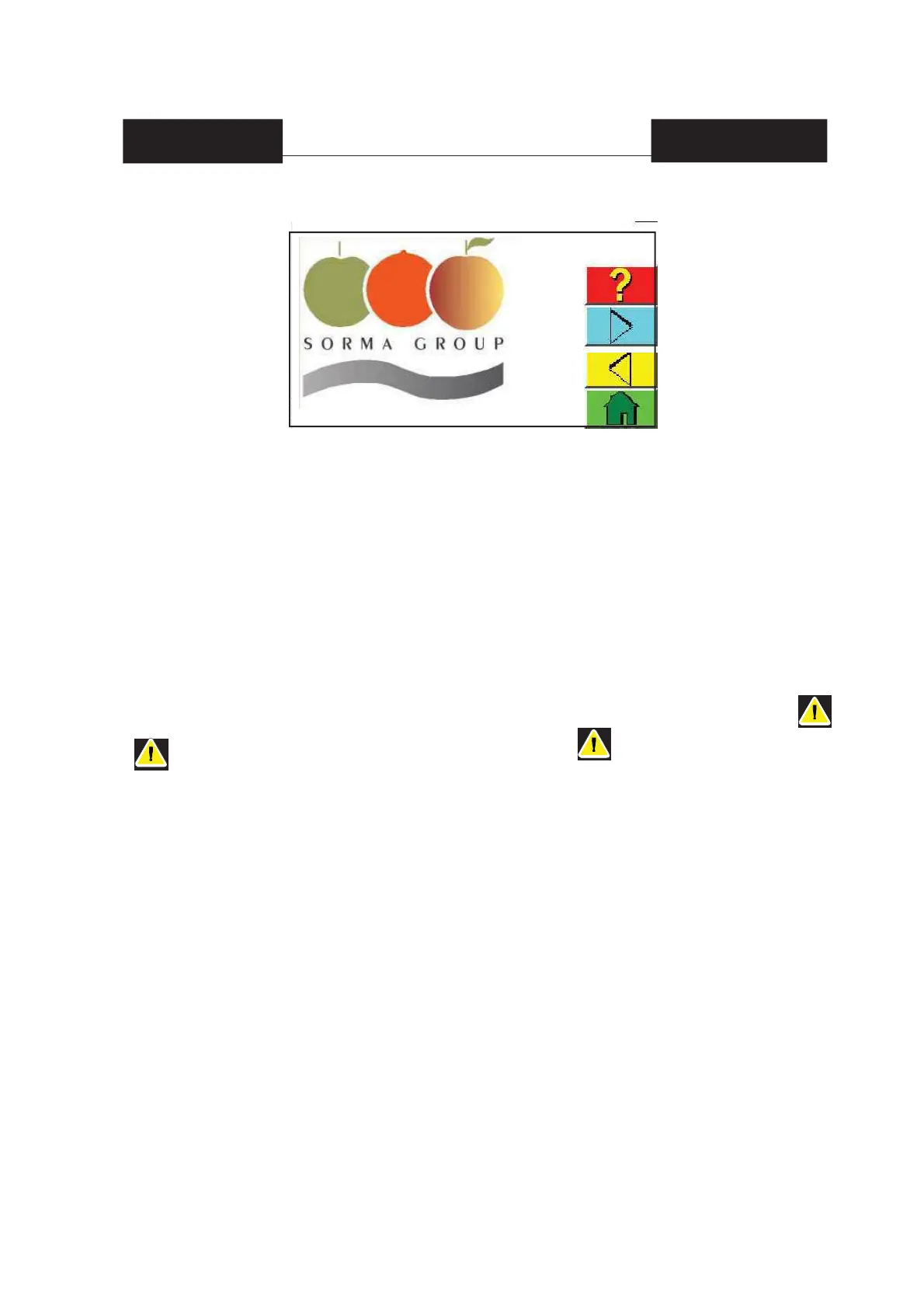

- [13] TERMINAL (TOUCH SCREEN DISPLAY)
