Sortimo GL4 User Manual

23
© Sortimo International GmbH

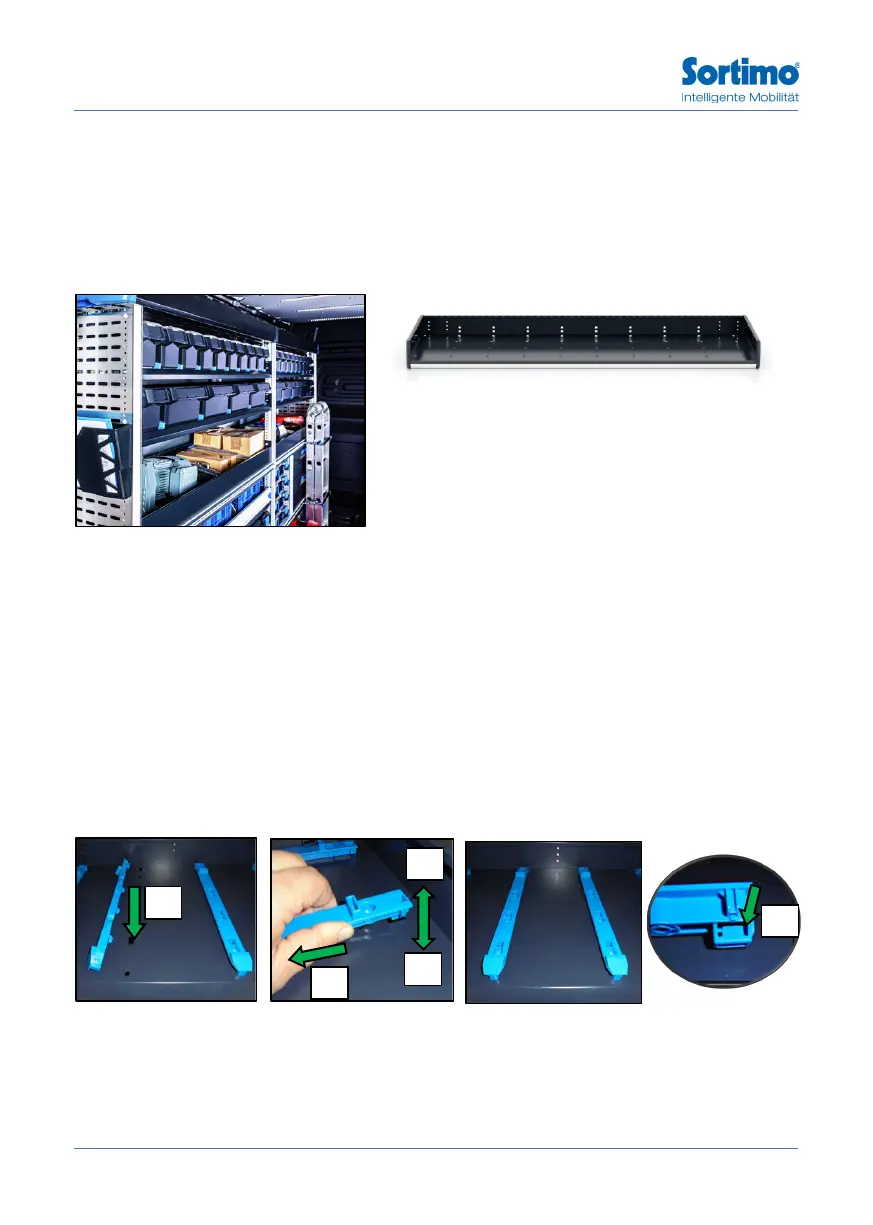

Shelf
As a carrier module for all BOXXes (T-, L-BOXX & SR-BOXX only standing)
• Can be combined with shelf flap, etc.
• Custom division using dividers.
• Anti-slip mat.
Loads up to 80 kg surface load
Carrier module for BOXXes:
Through attachment of plastic slides, the shelf serves as a carrier for BOXXes.
Installation:
• Place the plastic slide (A) with the grippers into the pre-punched cut-outs of the shelf.
• Slightly raise (C) the plastic slide (A) and push it back until the grippers engage.
• Press on the plastic slide at the end of the shelf (D) until the snap fastener (E) engages.
Removal:
• Press together the snap fastener (E) of the plastic slide underneath the shelf.
• Lift the plastic slide (C) and push it into the end of the shelf.
A
B
D
C
E
