amber segments at peak levels for best performance and avoiding overloading. When any PFL switch is pressed down on any
channel, the PFL below the meter will illuminate.
31. MAIN / GR & GR 1/2 / GR 3/4
When the MAIN / GR button is released, the signal from the MAIN MIX output will be monitored. When the MAIN / GR button is
pressed down, the signal from the GROUP output will be monitored: release the GR 1/2 / GR 3/4 button to monitor signal from the
GR 1 / 2 output, or press the GR 1/2 / GR 3/4 button to monitor signal from the GR 3 / 4 output.
32. PHONES
This control is used to adjust the signal present at the PHONEs output. The adjustable range is from -∞ to +10dB.
33. CONTROL ROOM
This control is used to adjust the signal present at the CONTROL ROOM output. The adjustable range is from -∞ to +10dB.

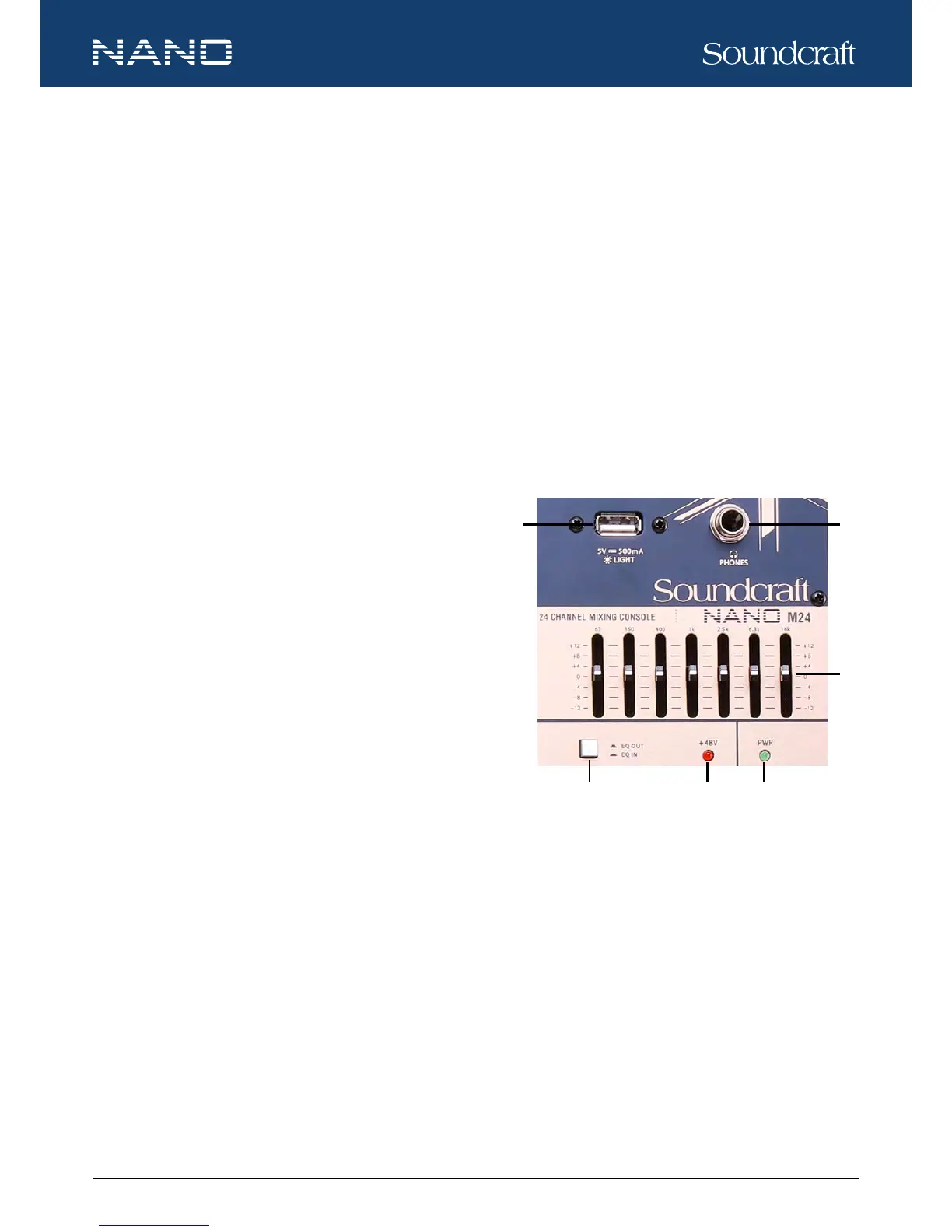

34. POWER LAMP SOCKET
The standard-A USB power socket supplies power of 5.0V 500mA
and can be connected to USB-powered/chargeable peripherals
like a USB lamp.
35. PHONES
The phone output appears on a ¼” TRS jack connector and is
used to send the mix signal to a pair of headphone.
36. STEREO GRAPHIC EQ
The 7-band STEREO GRAPHIC EQ is used to modify the fre-
quency “contour” of the MAIN MIX L-R. Each one of the faders will
boost or attenuate (+/- 12dB) the selected frequency at a preset
bandwidth. When all the faders are in the center position, the
output of the equalizer is at response.
37. PWR LED
This LED illuminates when the mixer is properly powered on.
38. +48V LED
This LED illuminates when the phantom power (at the rear panel) is switched on.
39. EQ OFF / ON
Press down the switch will engage the Stereo Graphic EQ for the MAIN MIX. Release the switch will bypass the Stereo Graphic
EQ.
Controls and Features
