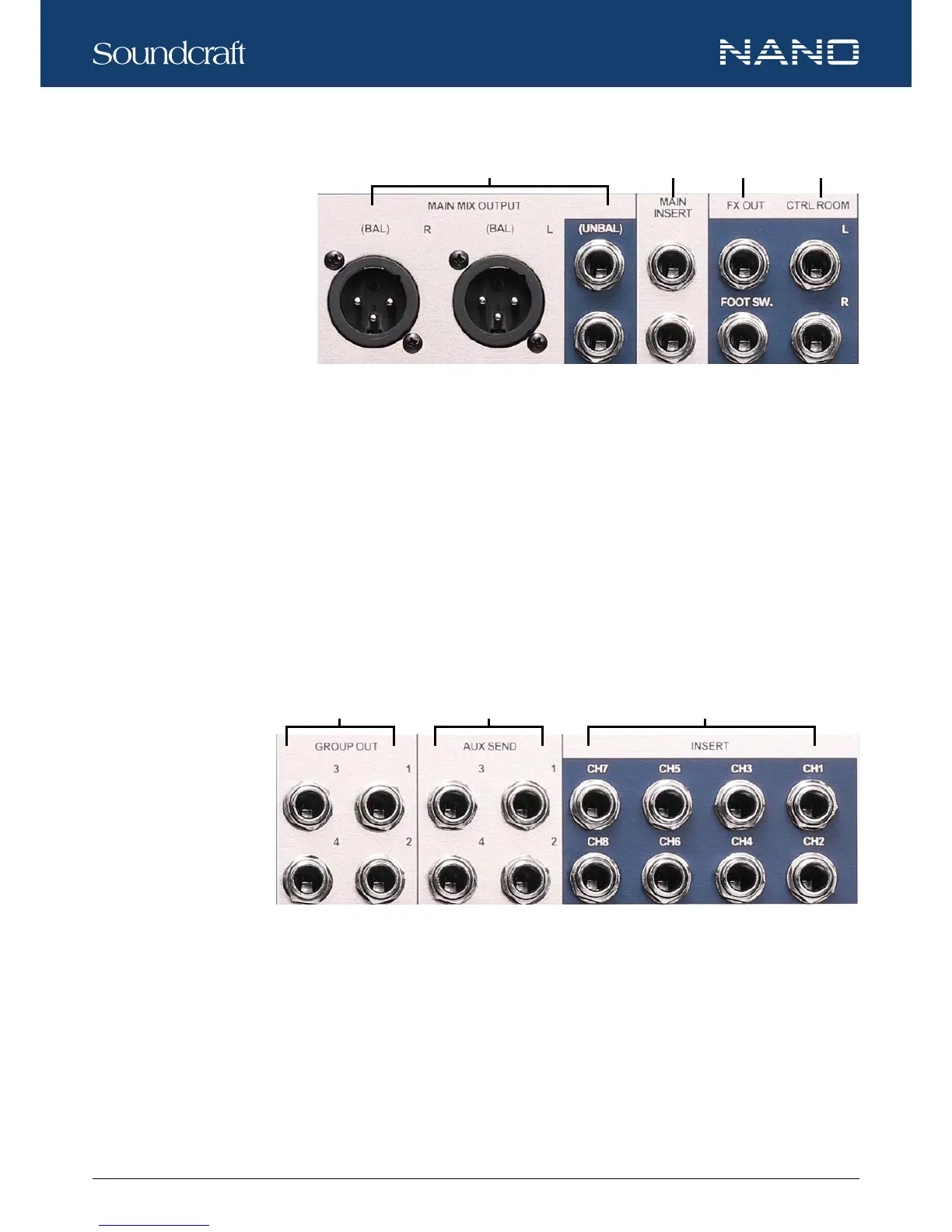

40. MAIN MIX OUTPUT
These stereo outputs are supplied
with a pair of balanced XLR con-
nectors and a pair of unbalanced
¼” phone jacks and are controlled
by the MAIN MIX LEVEL fader.
41. MAIN INSERT
The MAIN INSERT installs a pair
of ¼” TRS jacks and are used to
connect processors such as compressors, equalizers, etc. When an external processor are connected, the Main stereo signal will
be taken out after the main bus and returned into the MAIN MIX output before the MAIN MIX fader.
42. FX OUT
The FX OUT installs a pair of ¼” TRS jack and are used to send signal from FX mix buss to external devices.
FOOT SW.
This ¼” TRS jack is used to connect an external footswitch, which has the same function as FX MUTE button.
43. CTRL ROOM
These ¼” sockets sends signal to studio monitor speakers or a second set of PA.
44. GROUP OUT
These ¼” TRS jacks are
used to send signals from
GROUP 1-4 busses to
external devices.
45. AUX SEND
These ¼” phone jacks are
used to send signal from
AUX 1-4 busses to external
devices such as effects.
46. INSERT
The channel INSERT point uses a ¼” jack and is a break in the channel signal path just before the EQ section, allowing limiters,
compressors, special equalizers or other signal processing units to be added in the signal path.
Controls and Features
