3.2: CONSOLE INPUTS
INPUTS & OUTPUTS > CONSOLE INPUTS

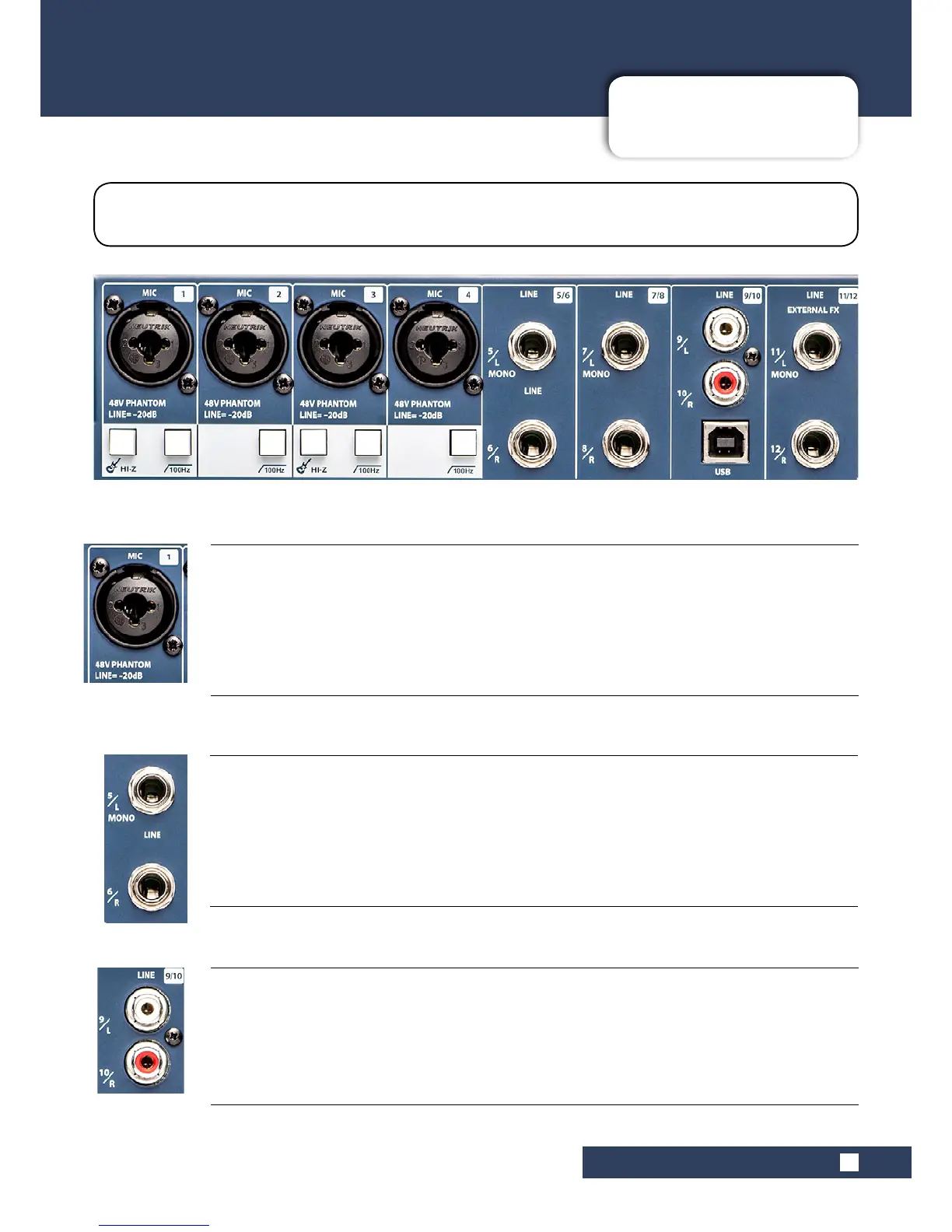

3.2: CONSOLE INPUTS
Mic Input - XLR
Input connection for microphones using standard XLR connection. Pin-2 is the positive, hot termi-
nal.
When using condenser microphones, the 48V phantom power for these connections is always on.
It's best practice to turn down the level control (and Aux send) when plugging condenser microphones into or out
of the Notepad mixer.
Line Input - RCA
Unbalanced input for line level/consumer playback equipment and instruments.
Console inputs can be used for a wide variety of sources. For best results always use the appropriate
input connection.
NOTEPAD 5, 8FX, 12FX User Manual
Line Input - Jack
Balanced line-level connection for all other inputs. Unbalanced signals can also be connected to
these inputs by using a mono, 2-pole jack.
A Hi-Z option is provided on selected channels, required by high output impedance sources, such as guitar pick-ups
when connecting a guitar directly to the mixer.

SoundCraft Notepad 12FX Specifications

General

Type	Analog Mixer
Channels	12
Mic Preamps	4
Aux Sends	1
USB	1 x USB Type B
Computer Connectivity	USB
EQ Bands	3-band EQ
Phantom Power	Yes
Inputs	12 (4 x Mono Mic/Line, 2 x Stereo Line, 2 x Stereo RCA)
Effects	Lexicon Effects (Reverb, Chorus, Delay)
