SoundCraft Notepad 12FX User Manual

5.1: INPUT CONTROLS
CHANNEL CONTROLS > INPUT CONTROLS
5.1: INPUT CONTROLS
Input channels take sources, process them and route them to one or more buses. The sources ca-
tered for by the Notepad consoles include mono (single channel) sources, stereo sources, playback
sources and FX Return sources.

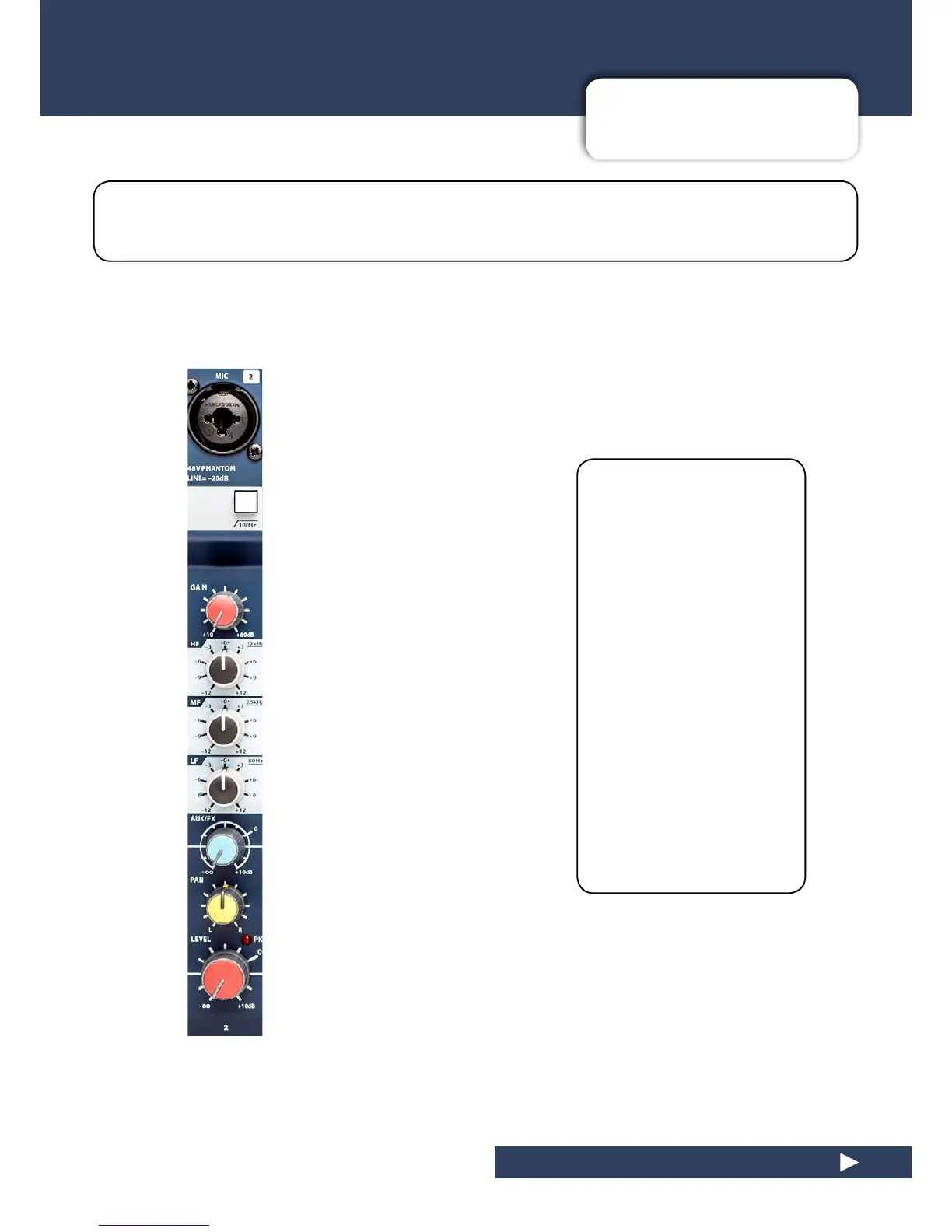

The controls are shown in
the order they appear on
the console channel strip -
from top to bottom. This is
not necessarily signal path
order. Please refer to the
relevant signal path dia-
gram (section 4).
Controls common to all
input channel types are
documented in the Mono
Input Channel controls
section (5.1.1). Controls
orexplanationsspecic
to Stereo input channels,
Playback channels, and
the FX Return Channels
are documented in those
sections (5.1.2 and 5.1.3
respectively).
NOTEPAD 5, 8FX, 12FX User Manual
HI Z and 100Hz High
Pass Filter
AUX/FX Send To Effects
Mic Pre Gain
3 Frequency EQ
Left/Right Pan
Level to Master Bus

SoundCraft Notepad 12FX Specifications

General

Type	Analog Mixer
Channels	12
Mic Preamps	4
Aux Sends	1
USB	1 x USB Type B
Computer Connectivity	USB
EQ Bands	3-band EQ
Phantom Power	Yes
Inputs	12 (4 x Mono Mic/Line, 2 x Stereo Line, 2 x Stereo RCA)
Effects	Lexicon Effects (Reverb, Chorus, Delay)
