SoundCraft Notepad 12FX User Manual

4.1: MONO INPUT
CONSOLE ROUTING > MONO INPUT

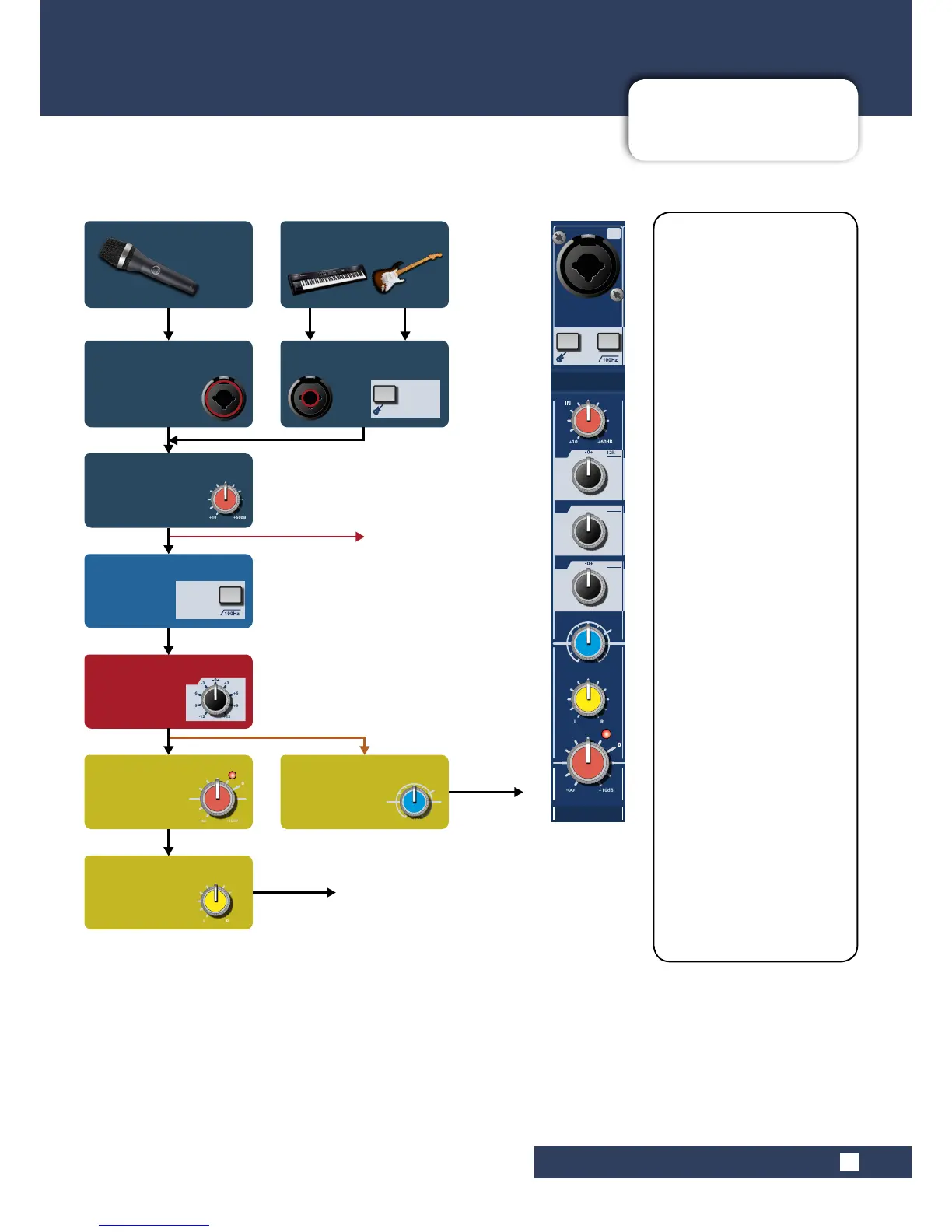

4.1: MONO INPUT ROUTING
Mono Input Channels
All mono input channels
provide the choice of
XLR (mic) and Jack
(Line) balanced inputs.
The odd numbered
mono channels have
Hi-Z input switch-
es, most often used
for direct input from
semi-acoustic or bass
guitars.
All Mono input channels
have 100Hz high pass
lters,forreducingthe
level of frequencies
below 100Hz.
All Mono input channels
have EQ and can con-
tribute to Aux / FX and
Master Stereo buses.
NOTEPAD 5, 8FX, 12FX User Manual
Microphone
Input
MIC INPUT
48V Phantom power is
provided for condenser
type microphones and DI
boxes on the XLR input
GAIN
Increase / decrease the
signal level
HPF
High Pass Filter -
lter out frequen-
cies below 100Hz
EQ
Three-band
equaliser
ROTARY LEVEL
Level control to
mix the source.
Peak light
indicates near clip
AUX/FX SEND
Send an independent
signal level to the
eects module and
aux bus
Pre-fade aux send
To USB audio routing
To aux master
control and
eects
PAN
Adjust the left /
right mix position
LINE INPUT
Press the button for Hi-Z inputs
Line or HiZ source
+60dB+10
-12 +12
+9
+6
-9
-6
-3 +3
PK
00
+10dB
-
∞
RL
0
+10dB
-
∞
To master
level control
HI-Z
PAN
LEVEL
1
PK
GAIN
HI-Z
+60dB+10
RL
PAN
LEVEL
GAIN
AUX/FX
AUX/FX
1
LINE= -20dB
LINE= -20dB
00
0
MIC
MF
HF
MF
LF
HF
12kHz
2.5kHz
80Hz
+10dB -
∞
+10dB
-
∞

SoundCraft Notepad 12FX Specifications

General

Type	Analog Mixer
Channels	12
Mic Preamps	4
Aux Sends	1
USB	1 x USB Type B
Computer Connectivity	USB
EQ Bands	3-band EQ
Phantom Power	Yes
Inputs	12 (4 x Mono Mic/Line, 2 x Stereo Line, 2 x Stereo RCA)
Effects	Lexicon Effects (Reverb, Chorus, Delay)
