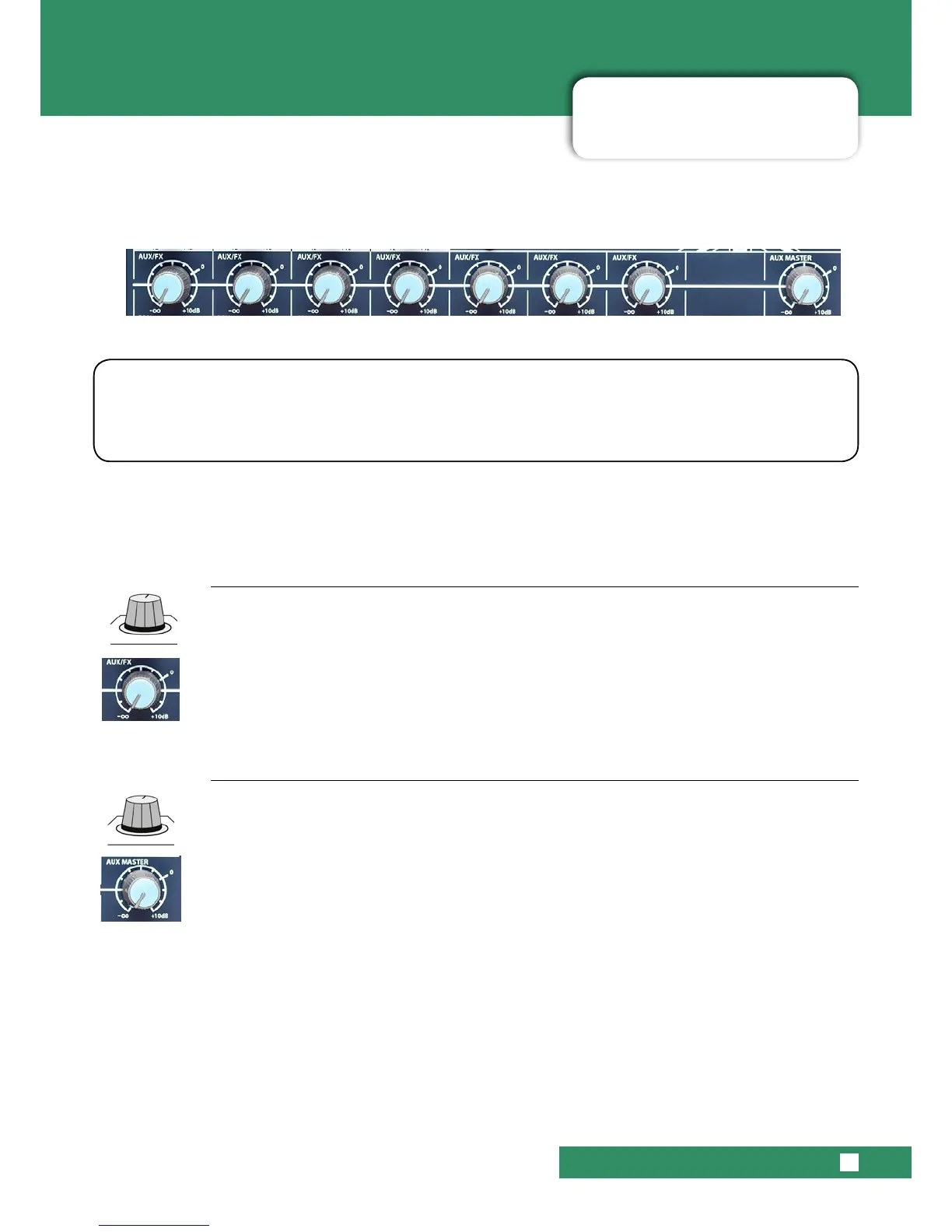

5.2: AUX SEND OUTPUT
CHANNEL CONTROLS > AUX MASTER CONTROLS
5.2: AUX SEND OUTPUT
The Aux Master control determines the output level of a whole Aux Master mix (the sum of all
Aux/FX contributions)
Notepad-12FX Aux Bus
On Notepad 12FX, the aux bus is sent to the Lexicon effects processing before the aux master so
while the Aux/FX mix is the same, the overall level of the two destinations - aux output and effects
processing are independent.
When the OUTPUT TYPE of the aux output is set to STEREO PHONES, this control additionally
serves as a headphone level control.
Notepad-8FX Aux Bus
On Notepad 8FX, this control is in the signal path before the Lexicon effects processing so serves
as a master effect send control and therefore an effects wet/dry control as the 8FX does not have
a dedicated FX return channel. The effects are returned to the master mix at unity.
NOTEPAD 5, 8FX, 12FX User Manual

SoundCraft Notepad 12FX Specifications

General

Type	Analog Mixer
Channels	12
Mic Preamps	4
Aux Sends	1
USB	1 x USB Type B
Computer Connectivity	USB
EQ Bands	3-band EQ
Phantom Power	Yes
Inputs	12 (4 x Mono Mic/Line, 2 x Stereo Line, 2 x Stereo RCA)
Effects	Lexicon Effects (Reverb, Chorus, Delay)
