4.0: CONSOLE ROUTING
CONSOLE ROUTING
4.0: CONSOLE ROUTING
Understanding the facilities a console offers for routing and controlling audio is an important step in
learning how to operate the console most effectively.

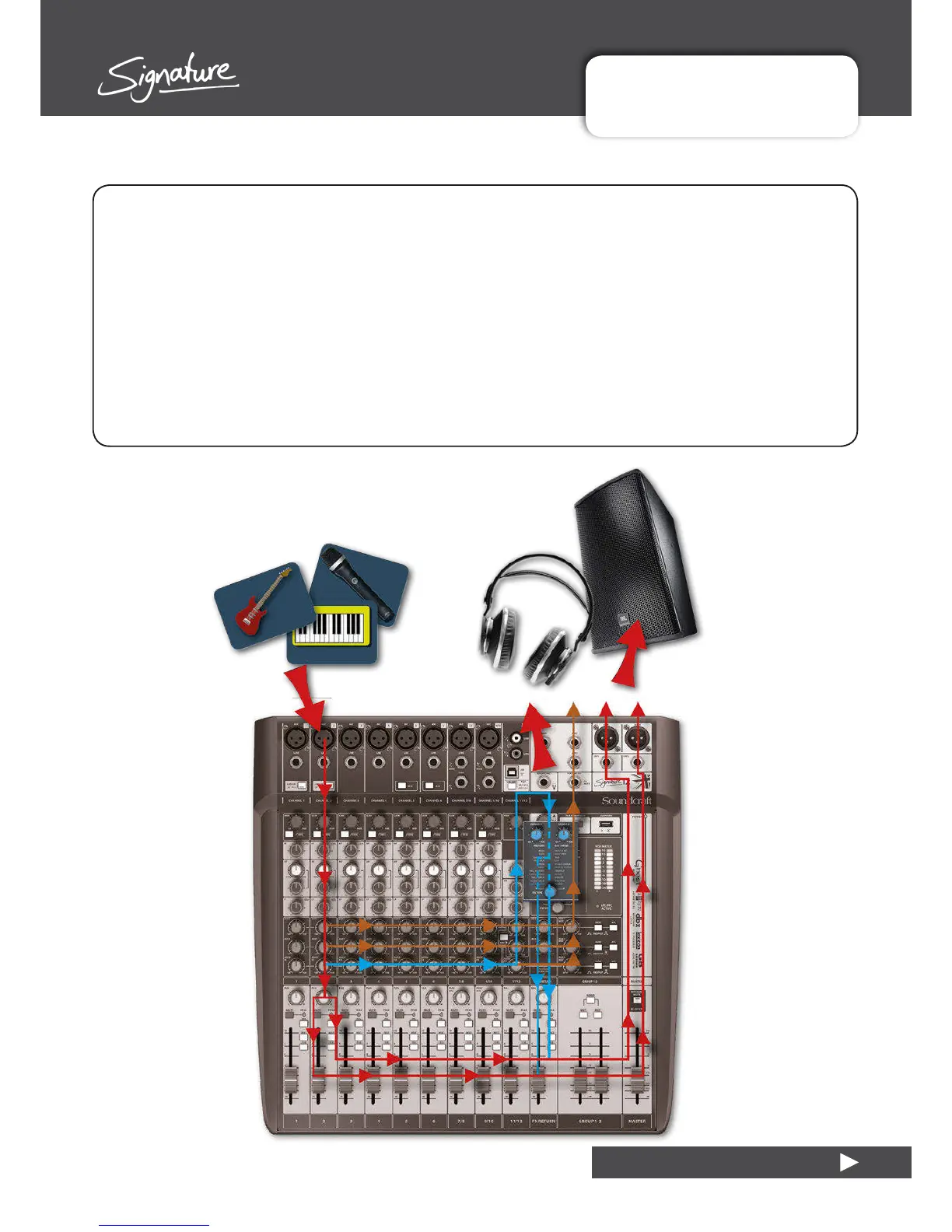

ThisSectionusessimpleowdiagramsandshortdescriptionstodescribethevarioussignalpaths
and routing options for all channel and bus types. If you have never operated a similar console before,
it is worth digesting all these options before you use the console in a critical application.
Signalsgenerallyowthroughtheconsolefromaninputchannel,thenasamixontoabus(Aux,
Group, Stereo, Solo), and through an output master (Master Stereo Output, Group Master Output, Aux
Master Output, Monitor / Headphones Output.
For more basic descriptions of the main routing functions, see section 2.1.2: Mixing Console Routing.

SoundCraft Signature 12 Specifications

General

Number of Channels	12
USB Interface	2-in/2-out
Faders	60mm
Phantom Power	Yes
Type	Analog
Headphone Output	1 x 1/4"
EQ Bands	3-band
Effects	Yes, with Lexicon effects
Inputs - Line	8
Outputs - Main	2 x XLR
Main Outputs	2
Monitor Outputs	1/4"
Weight	14.3 lbs
