10, 12, 12MTK User Manual

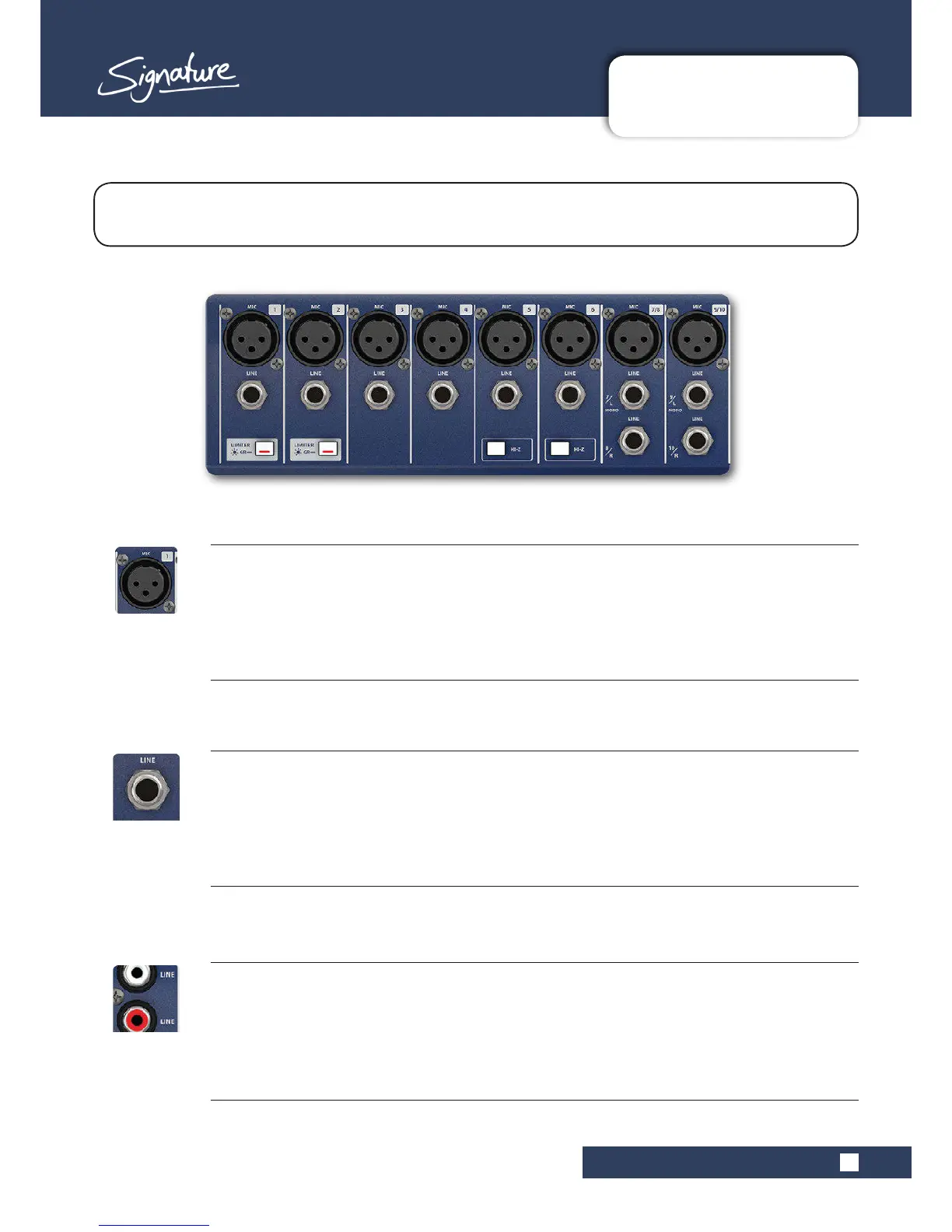

3.2: CONSOLE INPUTS
INPUTS & OUTPUTS > CONSOLE INPUTS
3.2: CONSOLE INPUTS
Mic Input - XLR
Input connection for microphones using standard XLR connection (Pin-2 hot)
When using condenser microphones, you can switch on 48V phantom power for these connections on the right
hand side of the console (the 48V button). It's best practise not to use phantom power with unbalanced or instru-
ment inputs, switching it o BEFORE unplugging and switching it on AFTER plugging in.
Line Input - Jack
Balanced line-level connection for all other inputs
A Hi-Z option is provided on selected channels, required by high output impedance sources, such as guitar
pick-ups (when connecting a guitar directly to the mixer).
Line Input - RCA
Unbalanced input for line level/consumer playback equipment and instruments
Console inputs can be used for a wide variety of sources. For best results always use the appropriate
input connection.
