GRP 1 / GRP 2 (Signature 12 and 12 MTK only)
Group 1 and 2 outputs - Quarter-inch Jack
Line level output, TRS Jack. Impedance balanced.
10, 12, 12MTK User Manual

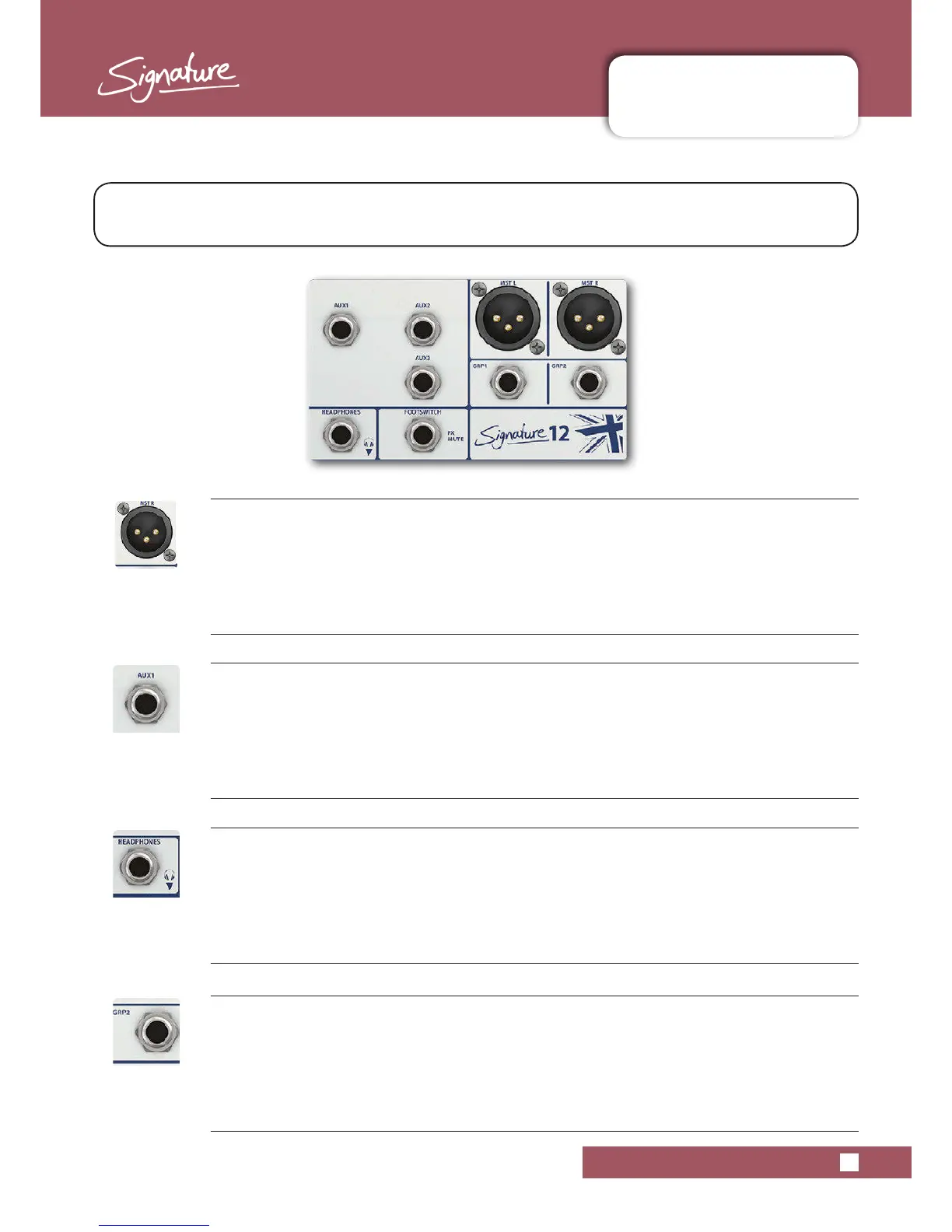

3.3: CONSOLE OUTPUTS
INPUTS & OUTPUTS > CONSOLE OUTPUTS
3.3: CONSOLE OUTPUTS
MST L / MST R
Master Left and Right outputs, XLR connectors
These are impedance-balanced line level outputs (pin 2 signal). The XLR outputs are labelled 'MST L' and MST R',
which refers to Master Left and right outputs of the main stereo output. These should be connected to the input
of your amplifier, PA system, recorder, or similar.
AUX 1 / AUX 2 / AUX 3
Auxiliary output connectors - quarter-inch Jack
Line level output, TRS Jack. Impedance balanced.
HEADPHONES
Stereo headphone output - quarter-inch TRS Jack
The headphone signal is always the Master Stereo Output unless a Solo (PFL or AFL) is activated. In that case, the
headphone output is switched to the Solo Bus.
The console outputs offer a range of connection options depending on the application. Always
consider carefully the best output and routing strategy for your particular application.
