SOUNDCRAFT SIGNATURE MTK RECORDING GUIDE
18
d. Once these are selected, you can close
the window and return to the arrange page.
Note: For familiarity with other DAWs, consider
using the “Arrangement View” of ABLETON
LIVE LITE over the “Session View” using the
view type in the top right of the screen.

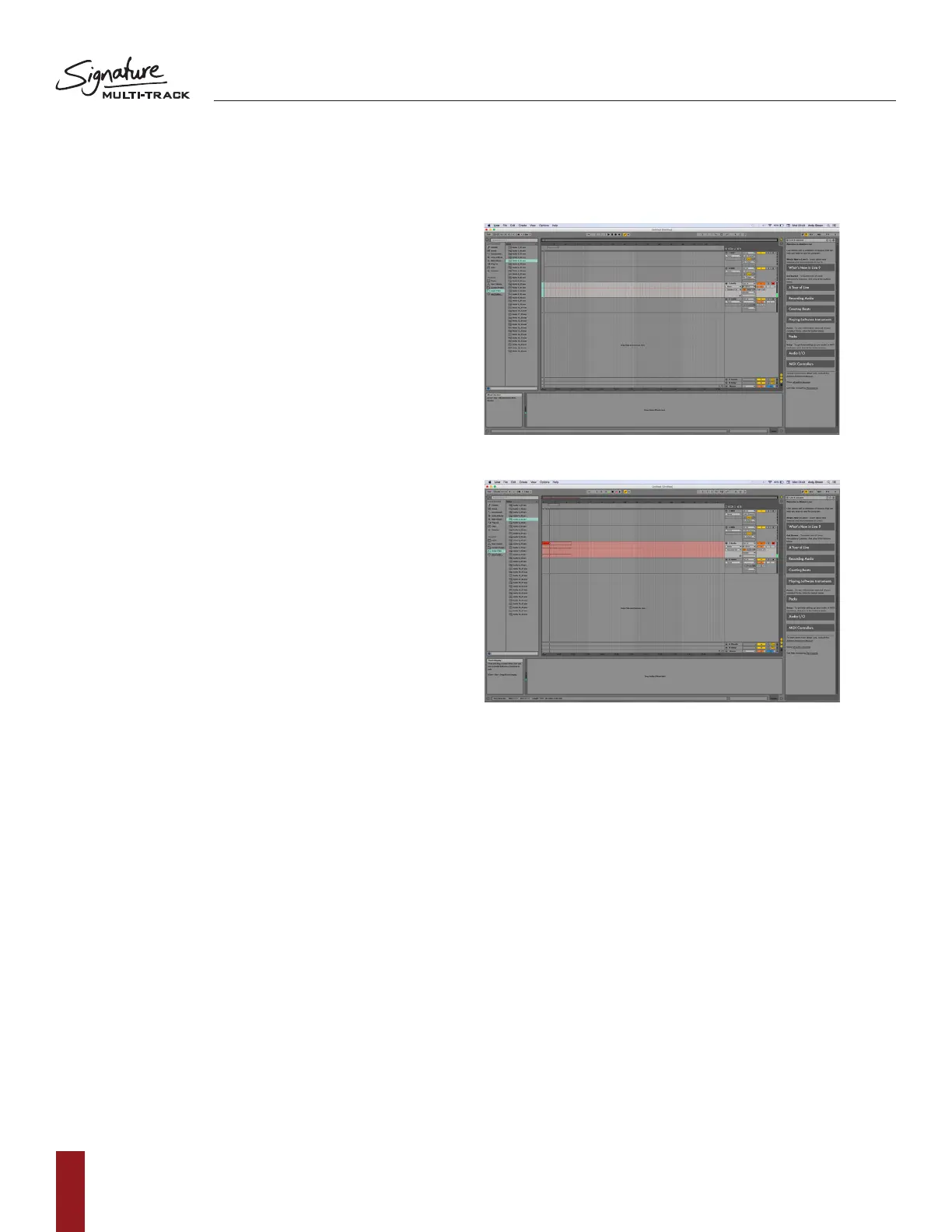

e. Once you are in the arrange page, you
can then assign an audio track to receive
audio from the console. This can be done
using the drop down located in the
audio track.
f. Turn on input monitoring by engaging the
IN beneath the input selection drop down.
After doing this, you will then notice input
signal appearing on the track meter.
  g.Thennally,recordenablethetrackby
engaging the record arm button and then
select Record on the top navigation bar to
begin recording the audio; you will see a
waveform appear on arrange page when the
audio is recording correctly and the inputs are
setup. Finally, press the record button on the
navigation bar again to stop the recording
process.

SoundCraft SIGNATURE MTK Specifications

General

Type	Analog
USB Interface	Yes
Faders	100mm
Power Supply	Internal
Phantom Power	Yes
Aux Sends	3
Subgroups	2
Inputs - Line	12
Outputs - Main	2
Outputs - Other	headphone
Dimensions	660 x 520 x 150 mm
