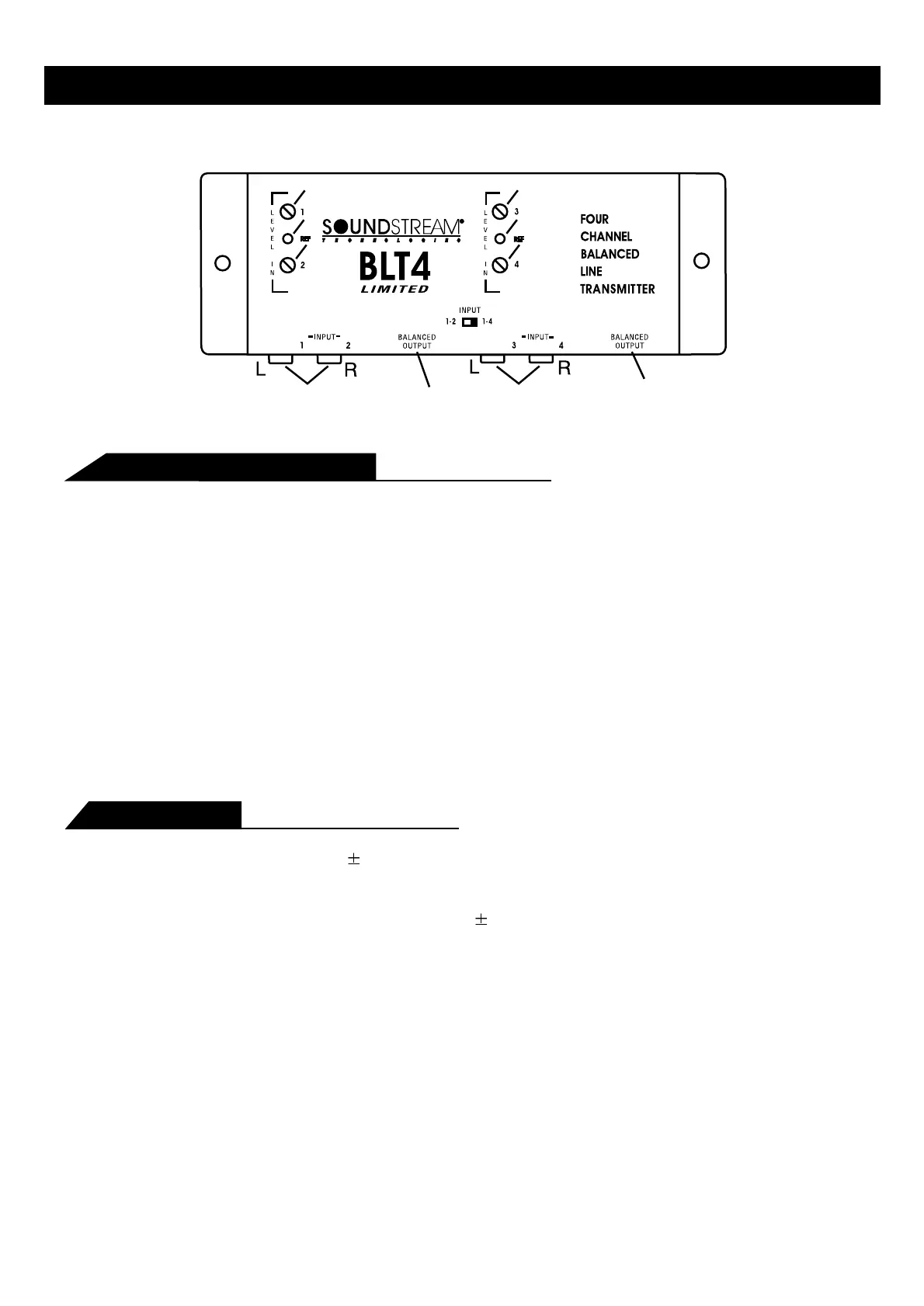

KEY TO CALLOUTS
9
1. Input Level - Channel 1 (Left) input sensitivity level control.
2. Input Overload Indicator - Indicates the signal input level (CH 1&2) input gain level is too high.
3. Input Level - Channel 2 (Right) input sensitivity level control.
4. Input Level - Channel 3 (Left) input sensitivity level control.
5. Input Overload Indicator - Indicates the signal input level (CH 3&4) input gain level is too high.
6. Input Level - Channel 4 (Right) input sensitivity level control.
7. Inputs - Unbalanced RCA signal inputs (CH 1&2)
8. Output - 6-pin DIN Balanced signal output jack (CH 1&2).
9. Inputs l- Unbalanced RCA signal inputs (CH 3&4)
10. Outputs - 6-pin DIN Balanced signal output jack (CH 3&4)
11. Channels - 1-2 & 3-4 Input Select - Channel 3&4 input selector switch. Set to l-2 for internal input
from Channels 1&2. Set to 1-4 for external input (from Channels 3&4).
BLT4 SPECIFICATIONS
Phantom Voltage 15Vdc
THD <0.01%
Signal-to-Noise Ratio >100 dB
Frequency Response 20 Hz to 20 kHz
0.5 dB
Stereo Separation >90 dB
Input Sensitivity 250 mV to 5.0 V
Maximum Output Signal 5.0 V (2.5 V per phase)
Gain 0 to +32dB (1x to 40x)
Input Impedance 10 kohms
Output Impedance 600 ohms
Dimensions: 6.0¨L x 2.0¨W x 1.22¨H
