Soundstream Reference Series 1000S - Wiring Diagram

6
Reference500s
19
Amplifier Amplifier Fuse Battery Fuse /
Circuit Breaker
REFERENCE500s
(2) 20 amp automotive 50 amp
REFERENCE700s
60 amp Maxi-Fuse 80 amp
REFERENCE1000s
80 amp Maxi-Fuse 100 amp

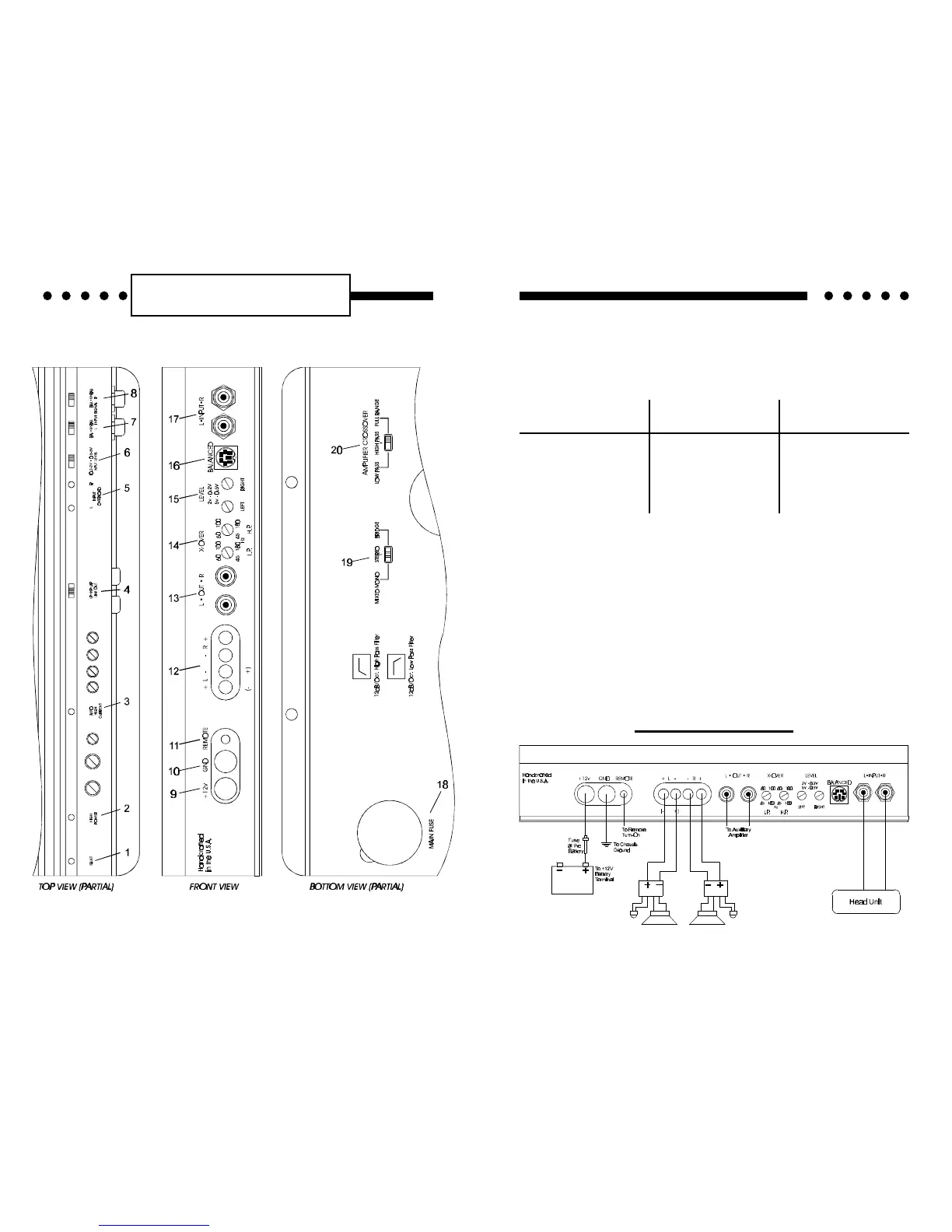

WIRING DIAGRAM
(Continued from page 18)
below to determine the fuse value. Never replace the fuses with a higher
value than what is supplied. This may result in amplifier damage and will
void the warranty!
REFERENCE Amplifier Fuse Values
REMOTE TURN-ON
Connect the “Remote” to the turn-on lead from the source unit. When +12
volts is received, the amplifier will turn on.
SIGNAL CABLE
Use a high-quality cable that will be easy to install and has minimal signal loss
to guarantee optimum performance. Soundstream’s DL1 and SL1 are
ideal when using the Unbalanced RCA inputs. While using the Balanced DIN
input, use the cable supplied with the BLT.
SPEAKER CABLE
The REFERENCE amps will accept up to 8 gauge speaker cable. Use a high
quality, flexible, multi-strand cable for best performance and longevity.
