INSTALLATION STEP 1
COHERENT STEREO™ /
MIXED-MONO / BRIDGED MONO

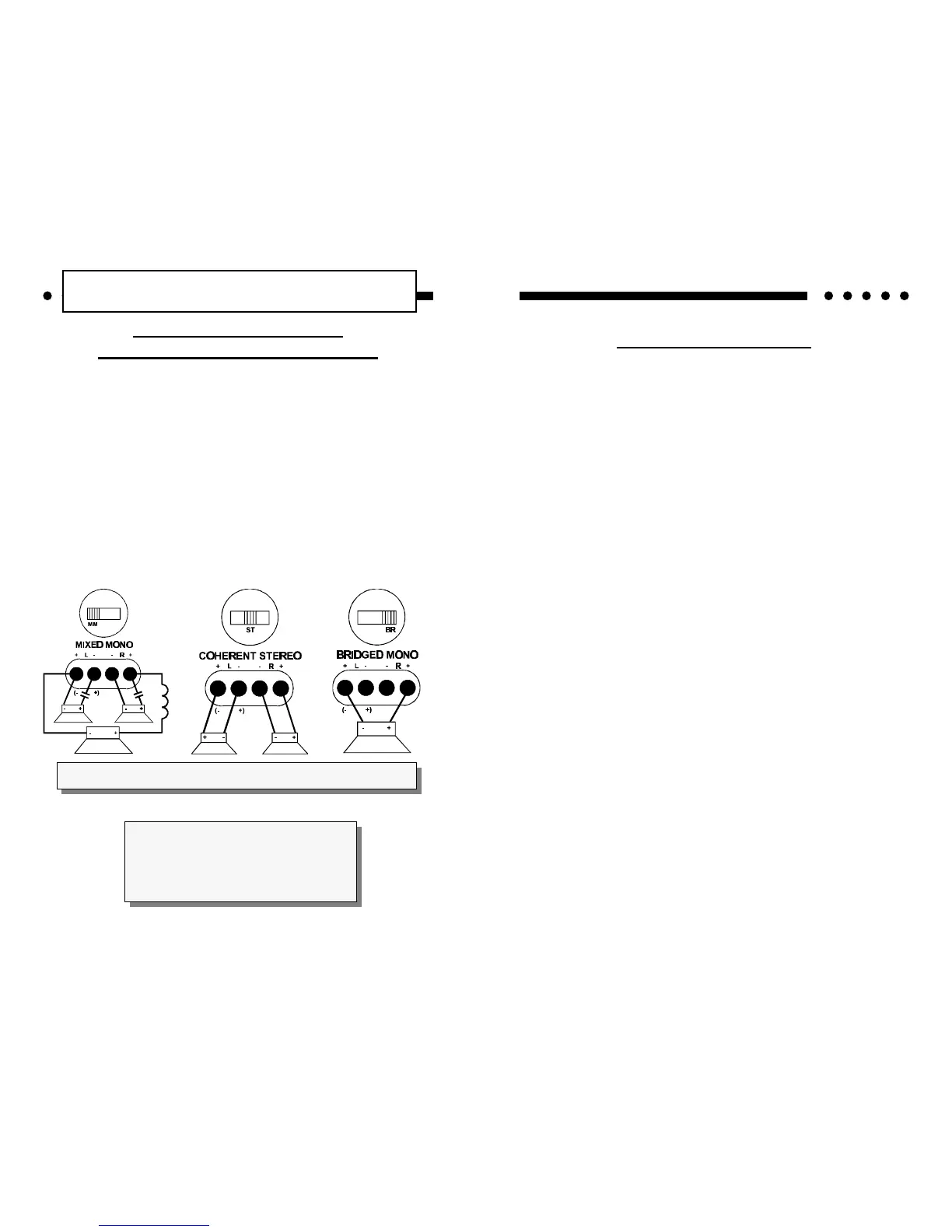

The REFERENCE amplifiers have the ability to operate in any one of the
following modes:
Coherent Stereo™ with identical left and right stereo channels for
maximum fidelity. Best choice for satellite speakers. Use this mode unless
Mixed-Mono is necessary.
Mixed-Mono in order to drive stereo and mono simultaneously; works well
for center channels. It can be used anytime you need a summed mono
channel. Somewhat sacrifices sonic accuracy as additional circuitry is
introduced to one channel. In Mixed-Mono, the left channel is inverted, see
diagram below or on the bottom of the amplifier.
Bridged Mono for dedicated single channel operation; ideal for driving
subwoofers. It is also used when large amounts of power are necessary for
single speakers. In bridged mono, only the right channel input is active.
In bridged mono, only the right channel input is active.
NOTE: If you intend to drive a
REFERENCE amp in Mono but have stereo
outputs from your crossover or source unit,
you can put the switch in Mixed-Mono but
follow the normal wiring for Bridged Mono.
9
Key to Callouts
1. Fault LED - Indicates a blown fuse.
2. High Power LED - Indicates amplifier power on in "High Power" mode.
3. Auto High Current LED - Indicates amplifier power on in "High Current"
mode.
4. Line Out Crossover Switch - Select high pass, low pass or full range low
level output to an auxiliary amplifier.
5. Input Overload Indicators - Indicates the signal input level or input gain
level is too high.
6. Input Level Selector Switch - Selectable input sensitivity range from 0.2-
2 Volts RMS, or from 0.5-5 Volts RMS.
7. Left Channel Balanced / Unbalanced Input Selector Switch - Select
"Balanced" to use the 6 pin Balanced signal input. Select "Unbalanced" to
use the RCA signal inputs.
8. Right Channel Balanced / Unbalanced Input Selector Switch - Select
"Balanced" to use the 6 pin Balanced signal input. Select "Unbalanced" to
use the RCA signal inputs.
9. Main Fuse - Main power supply fuse. Replace only with the same value
fuse.
10. +12V - Connected to a fuse or circuit breaker, then to the battery's positive
post.
11. GND - Main ground connection. Bolt to a clean chassis ground in the
vehicle.
12. REM - Remote turn-on input from the head unit. Accepts +12V.
13. Speaker Output Connections - Left and right channels.
14. Crossover Output - High pass, low pass or full range output to an
auxiliary amplifier.
15. Crossover Adjustment Pots - Crossover frequency settings for high
pass and low pass filters; Amplifier and crossover outputs.
16. Input Level - Independent Left and Right channel input level controls.
17. Balanced Signal Input Connector - 6-pin Balanced signal input
connector for use with the Soundstream BLT Balanced Line Transmitter.
18. Inputs - Right and left channel RCA (Unbalanced ) inputs; only right
channel input is used in "Mono" mode.
19. Coherent Stereo/Bridge/Mixed Mono switch - Select "Bridge" for
bridged mono operation (use right channel input). Select "Stereo" for
coherent stereo operation. Select "Mixed Mono" for simultaneous stereo /
bridged mono operation.
20. Amplifier Crossover - Select high pass, low pass or full range amplifier
operation.
