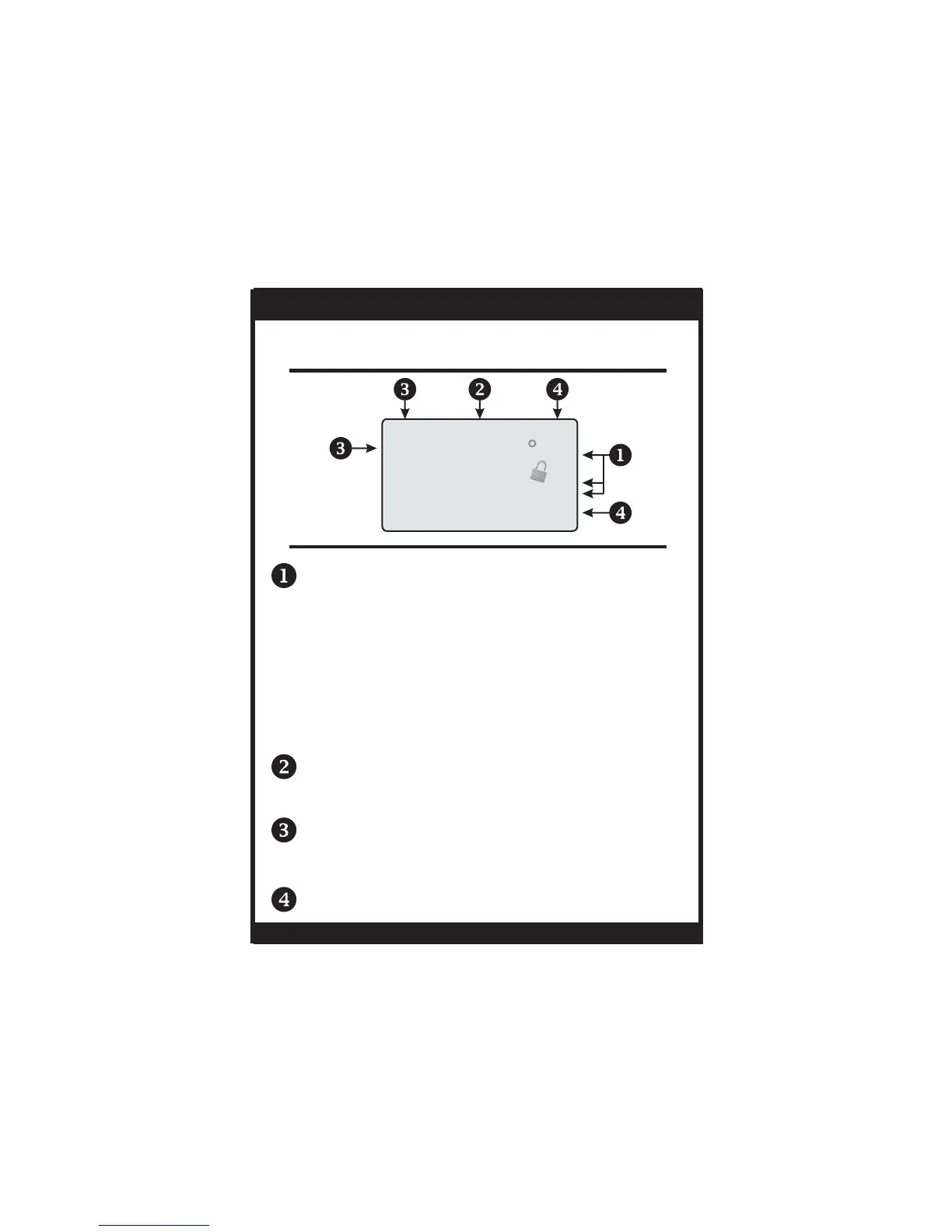

OWNER'S MANUAL
Clock with Day of the Week. Indicates the current time
and day. This clock is also used to program the time
period schedules.
Display
Mode Indicators -
HEAT - Indicates the heating mode. When heating is
is energized the Heat indicator will flash.
COOL - Indicates the cooling mode. When cooling is
is energized the Cool indicator will flash.
HEAT & COOL - Indicates the system will auto-
matically changeover between heat and cool modes
as the temperature varies.
AUX - Indicates the 2nd stage of heat is energized.
When 2nd stage heat is energized, the Aux indicator
will flash.
Time period indicators. These indicate the part of
the program that is currently active, if the PROGRAM
button is set to RUN.
Desired set temperatures for heating and cooling.
S1-THEM22P7S
To Next Page
