South A1 Series User Manual

11

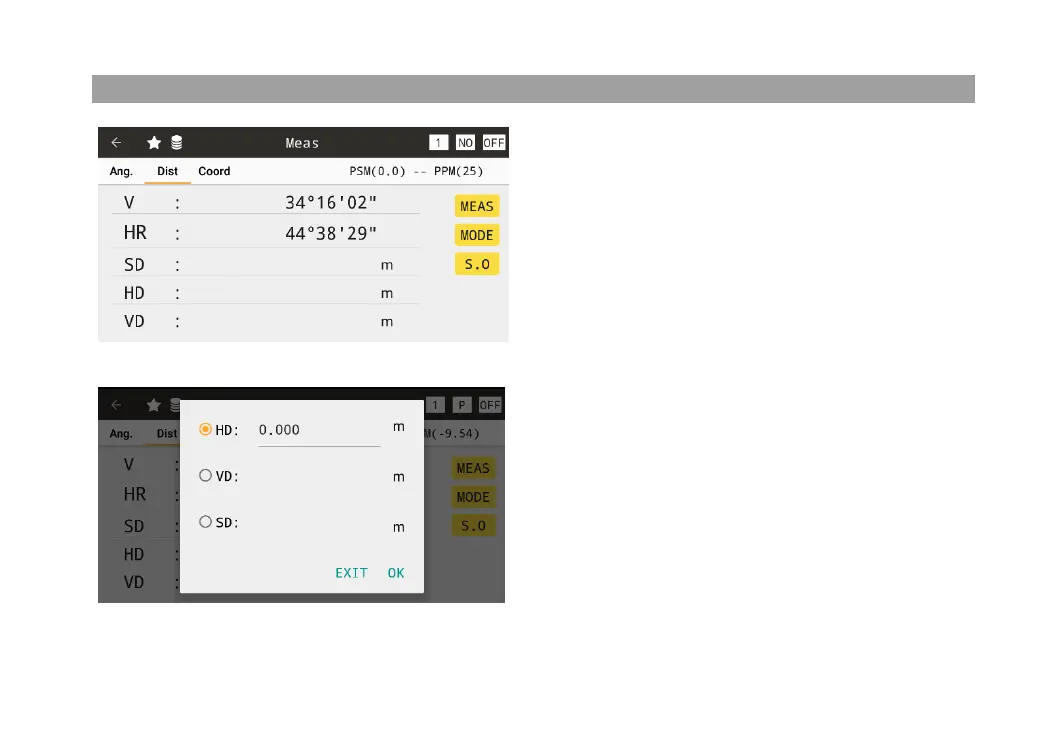

3.2 DISTANCE MEASUREMENT
SD: The slide distance.
HD: The horizontal distance.
VD: The vertical distance.
[MEAS]: Measure.
[MODE]: Switch the measure mode
[S.O]: Enter the page of stake out.
[HD]: Input the horizontal distance for stake out
point.
[VD]: Input the vertical distance for stake out
point.
[SD]: Input the slide distance for stake out point.
☞ Stake-out

South A1 Series Specifications

General

Display	LCD
Battery Life	8 hours
Distance Measurement Accuracy	±(2 mm + 2 ppm) with prism, ±(3 mm + 2 ppm) reflectorless
Operating Temperature	-20°C to +50°C
Power Supply	Rechargeable battery
