South A1 Series User Manual

38
9.4 ROAD STAKE-OUT
Please confirmed that the station has been set,
also the horizontal and vertical alignment has
been defined correctly before stake-out.

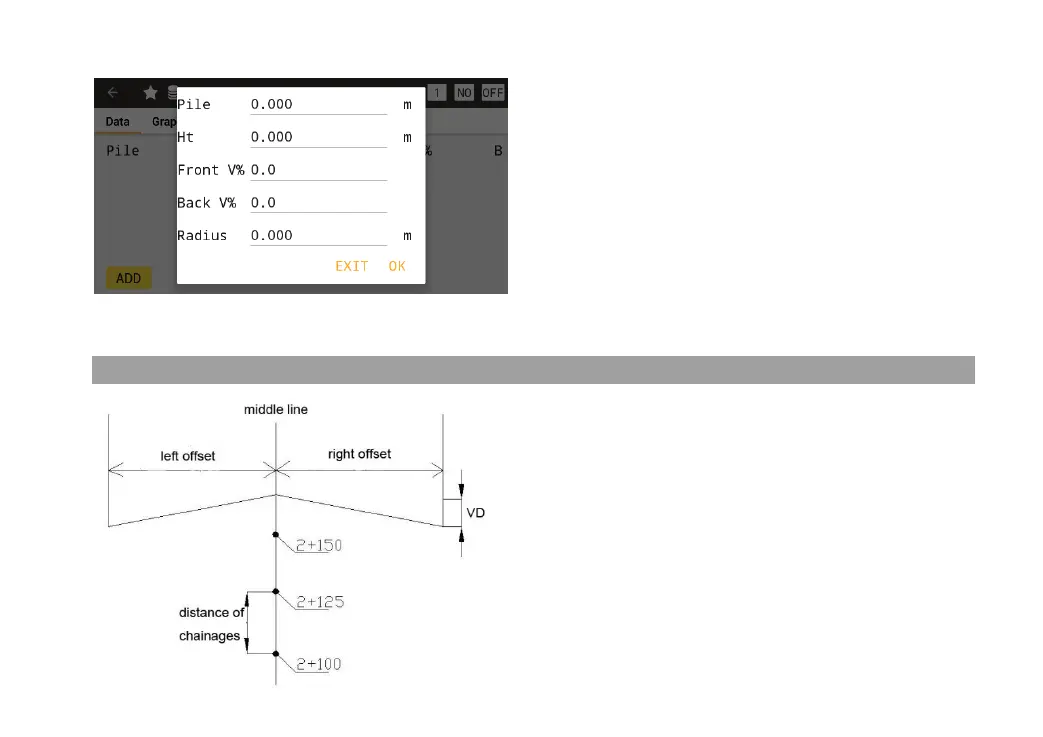

[ADD]: Add a new element of vertical alignment.
Pile: The pile ID of changing point
Ht: The height of changing point
Front V%: The vertical slope between current
point to the last point.
Back V%: The vertical slope between current
point to the next point.
R: The radius, distance between two points.
☞ Input the parameter of vertical elements

South A1 Series Specifications

General

Display	LCD
Battery Life	8 hours
Distance Measurement Accuracy	±(2 mm + 2 ppm) with prism, ±(3 mm + 2 ppm) reflectorless
Operating Temperature	-20°C to +50°C
Power Supply	Rechargeable battery
