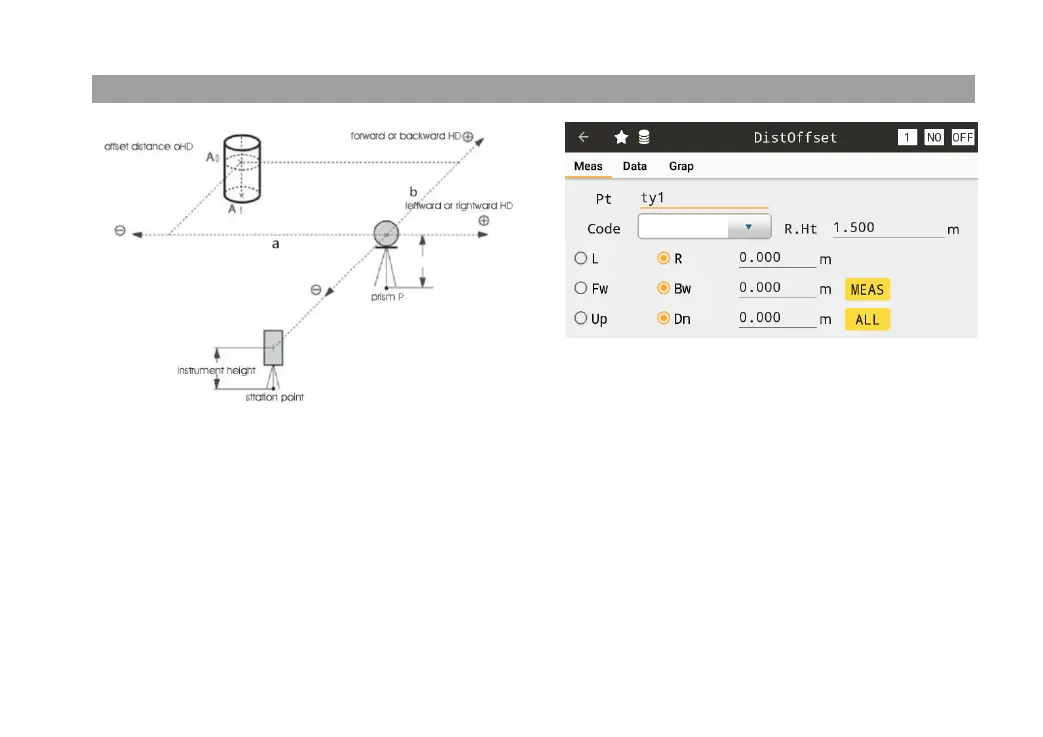

5.2 DISTANCE OFFSET

The distance offset calculates from measurement

or coordinates longitudinal, parallel offset and

height differences of the target point relative to

the known point.

Note: All directions are correspondent to the

visual side of operator.

Pt: Input the ID of point.

Code: Input or call up the code.

R.Ht: Reflector height.

[L][R]: The lateral deviation in left or right

[Fw][Bw]: Difference in length.

[Up][Dn]: The altitude deviation in upward or

downward

[MEAS]: Start to measure.

[ALL]: Measure and save.

Questions and Answers:

Need help?

Do you have a question about the South A1 Series and is the answer not in the manual?

South A1 Series Specifications

General

Display	LCD
Battery Life	8 hours
Distance Measurement Accuracy	±(2 mm + 2 ppm) with prism, ±(3 mm + 2 ppm) reflectorless
Operating Temperature	-20°C to +50°C
Power Supply	Rechargeable battery
