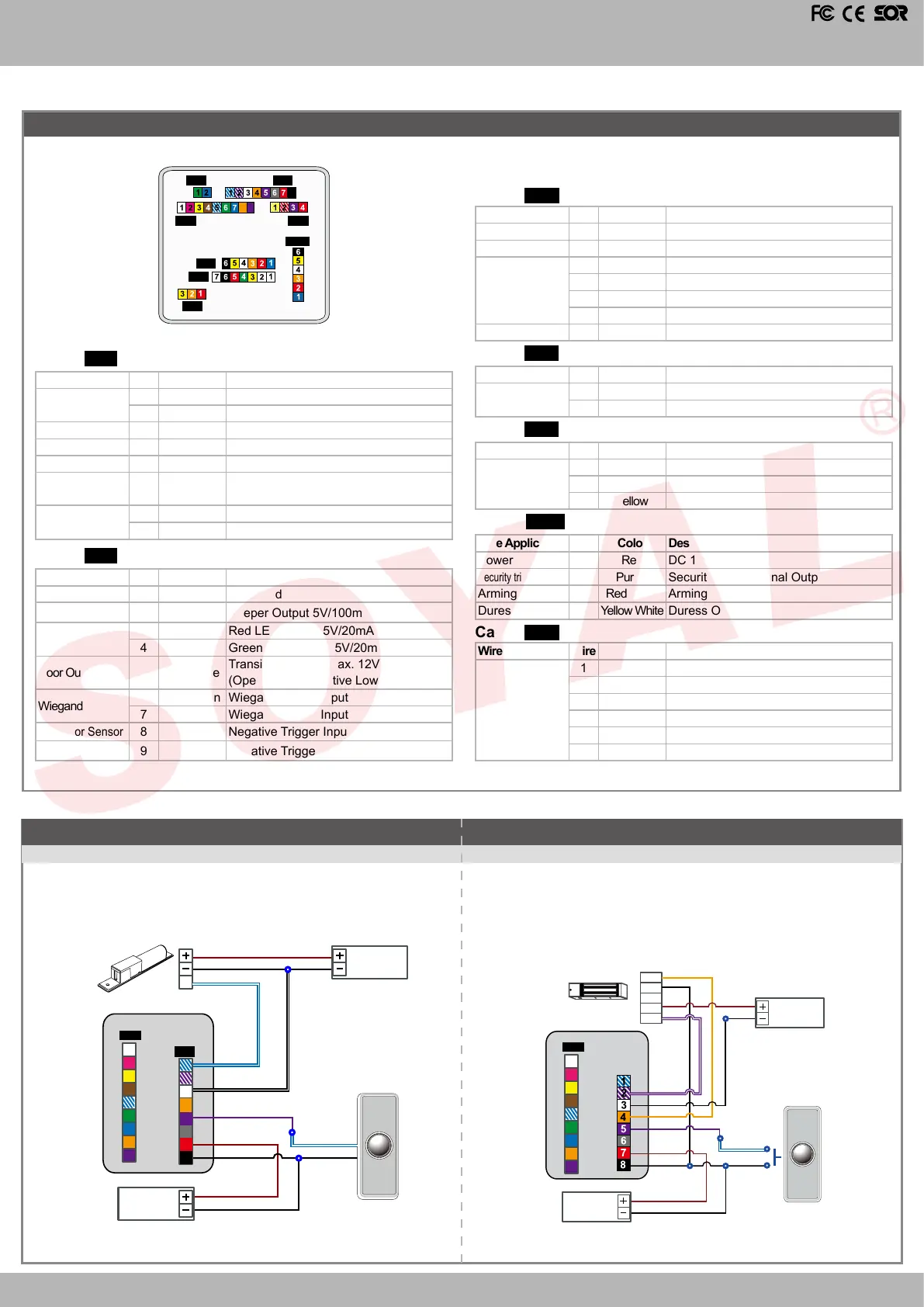

Soyal AR-331-E - Connector Table; Wiring Diagram

V220922
AR-321H
EXIT
E
12V
GND
12V
GND
12V
GND
N.O.
GND
N.O.
COM
PB
12V
GND
3
4
5
6
7
8
2
1
CN1
EXIT
N.C.
COM
PB
12V
GND
N.O.
N.O.
COM
N.C.
V+
V-
Main Port
Main Port
CN2
1
2
3
5
6
7
8
4
9
WG Port
5
CN2
1
2
3
5
6
7
8
4
9
WG Port
5
P.T.Exit
- 2 -
8
8
9
CN1CN4
CN2 CN6
CN11
CN9
CN3
CN5
Fingerprint
Biometrics Device Access controller
Wire Application Wire Color Description
Lock Relay
1 Blue White (N.O.)DC24V1Amp
2
Purple White (N.C.)DC24V1Amp
Common-COM-Point
3 White (COM)DC24V1Amp
Door Sensor 4 Orange Negative Trigger Input
Exit Switch 5 Purple Negative Trigger Input
Alarm Relay 6 Gray
Transistor Output Max. 12V/100mA
(Open Collector Active Low)
Power
7 Thick Red DC 12V
8 Thick Black DC 0V
CN1Cable:
Wire Application Wire Color Description
Beeper
2
Pink
Beeper Output
5V/100mA, Low
LED
3 Yellow Red LED Output
5V/20mA, Max
4 Brown Green LED Output
5V/20mA, Max
Door Output 5 Blue White
Transistor Output Max. 12V/100mA
(Open Collector Active Low)
Wiegand
6 Thin Green Wiegand DAT: 0 Input
7 Thin Blue Wiegand DAT: 1 Input
WG Door
Sensor
8 Orange Negative Trigger Input
WG Exit Switch 9 Purple Negative Trigger Input
CN2Cable:
1 White
DI1
R
eserved
Wire Application Wire Color Description
Anti-Tamper
Switch
1 Red N.C.
2 Orange COM
3 Yellow N.O.
CN5Cable:
Wire Application Wire Color Description
Power 1 Red DC 12V
Output
Security trigger signal 2 Purple Security trigger signal Output
Arming 3 Red White Arming Output
Duress 4 Yellow White Duress Output
CN6Cable:
Wire Application Wire Color Description
1 --- ---
2 --- ---
TCP/IP Output
3 Yellow
Net - TX+
4 Green
Net - TX-
5 Red
Net - RX+
6 Black
Net - RX-
7 --- ---
CN3Cable:
Wire Application Wire Color Description
TTL Output
1 Blue CLK
2 Red DC 5V
3
Orange
RX
4 White
TE
5 Yellow
TX
6 Black
DC 0V
CN9Cable:
Wire Application Wire Color Description
RS-485 for Lift
Controller
1 Thick Green RS-485(B-)
2 Thick Blue RS-485(A+)
CN4Cable:
Connector Table
Connect to Electric Bolt Connect to Magnet Lock
Wiring Diagram
Electric Bolt
AR-1207
Controller
Controller
RTE
RTE
POWER
12VDC
POWER
12VDC
POWER
12VDC
POWER
12VDC
Magnet Lock
