1. Wake-On-LAN (WOL)
Attach the 3-pin connector from the LAN card which supports the
Wake-On-LAN (WOL) function to the JP44 connector on the
mainboard. This WOL function lets users wake up the connected
computer through the LAN card.

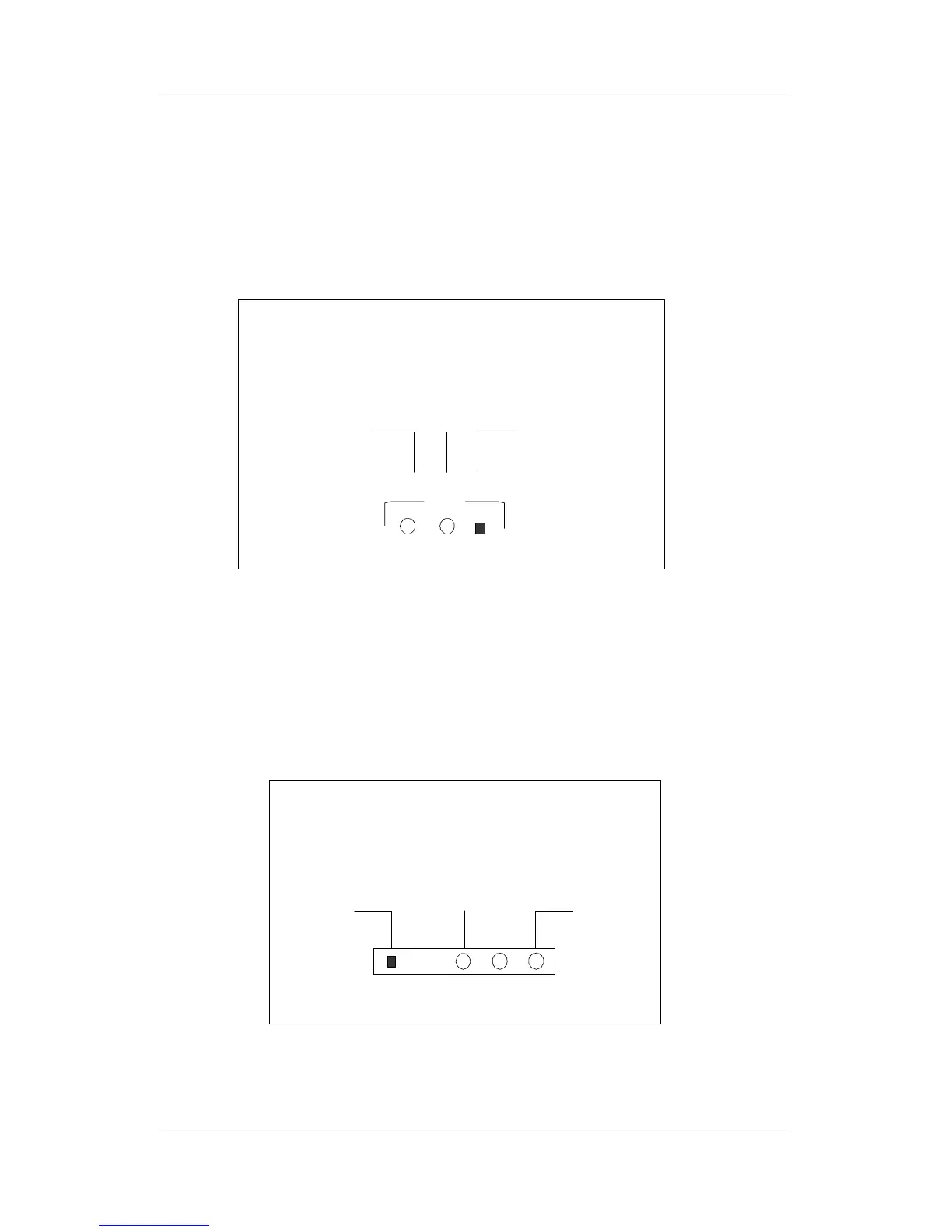

Please install according to the following pin assignment:
2. Infrared (IR)
Plug the 5-pin infrared device cable to the IR connector. This will
enable the infrared transfer function. This mainboard meets both the
ASKIR and HPSIR specifications.
Please install according to the following pin assignment:
123
4
5
VCCIRRXGND
IRTX
Serial Infrared (SIR) Connector
SIR Pin Assignment
Wake-On-LAN
JP44 Pin Assignment
5VSB
GND
MP_Wakeup
1
2
3
