Hardware Setup
SY-7IZB+N
10
2-3.3

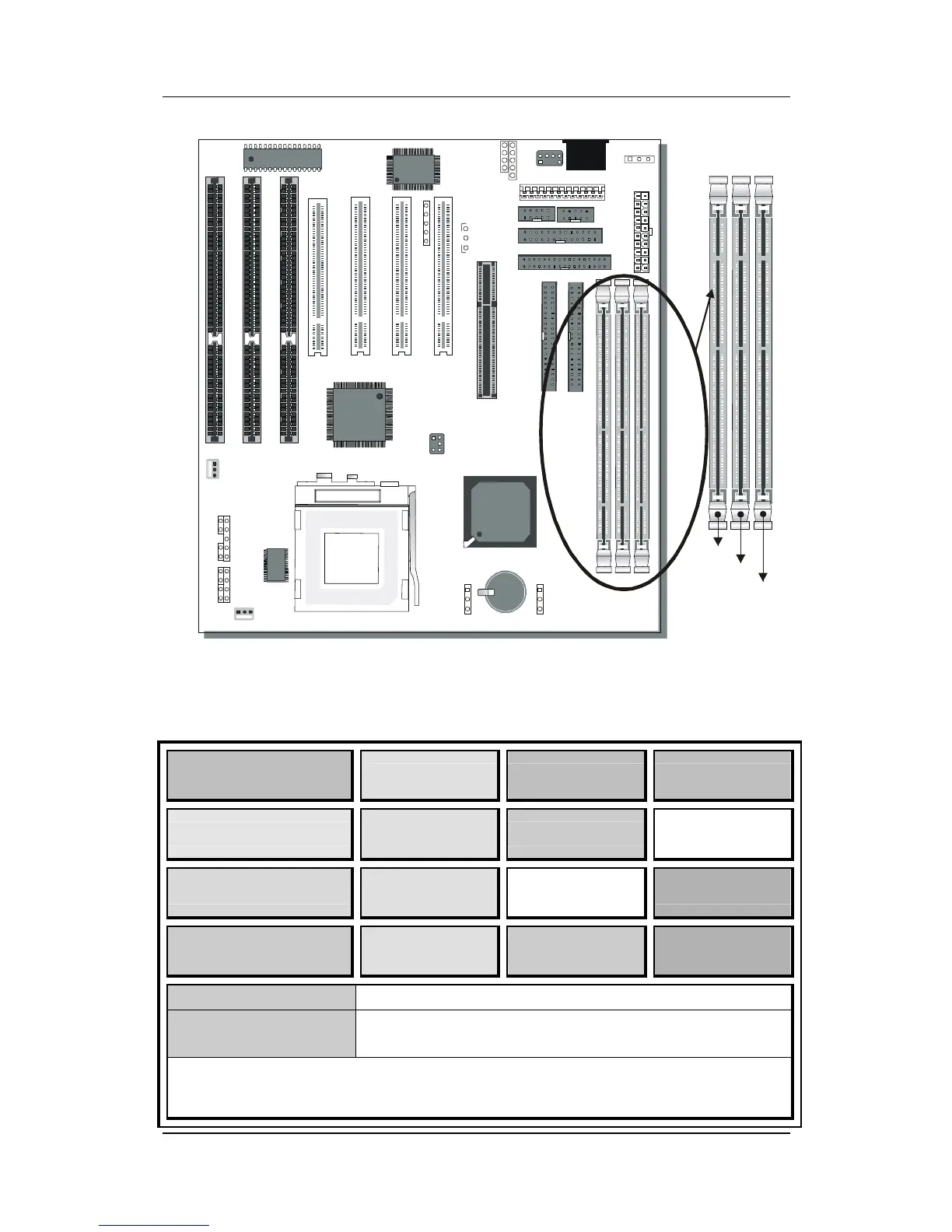

SDRAM Memory Module Installation
This Motherboard features 3 x DIMM for 168-pin 3.3V unbuffered
DIMM modules, providing support for up to 256MB of main memory
using DIMM modules from 8MB to 128MB.
Number of
Memory Modules
DIMM 1 DIMM 2 DIMM 3
1
Double-sided
/Single-sided
Double-sided
2
Double-sided
/Single-sided
Double-sided
3
Double-sided
/Single-sided
Single-sided Single-sided
RAM Type SDRAM
Memory Module
Size (MB)
8/16/32/64/128 Mbytes
Note:
Because DIMM 2 and 3 are shared, double-sided DIMMs can be used in
only one of the DIMMs. With single-sided DIMMs both 2 and 3 can be used.
*
22
22
DIMM1
DIMM3
DIMM2
