STEP
11
11
1
11
11
1
12
L12

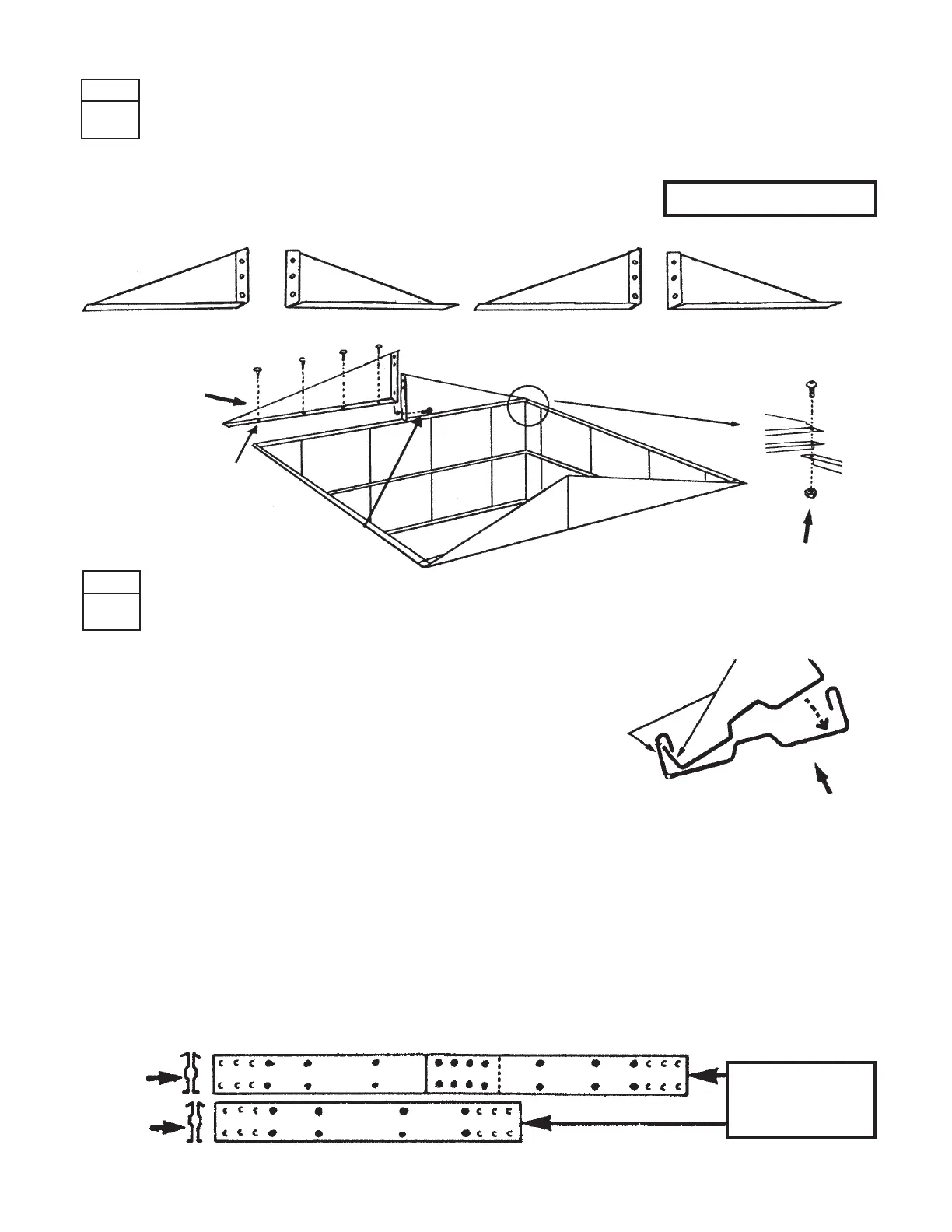

GABLE INSTALLATION
Place right rear gable in position and fasten to rear top rail with screws. See "A"
Install left rear gable as above.
Fasten right and left gables together...leaving 2 top holes vacant.
Repeat above for front set of gables.
USE SELF TAPPING
SCREWS...10mm (3/8") LONG
"A"
STEP
1212
1212
12
MAIN RIDGE BEAM ASSEMBLY
To combine the main ridge beam...select 2 pieces that
combine (when lapped) to make the proper length for your
building. NOTE - For sizes 6x4, 6x5 and 6x6 these
parts are in one full length piece.
Lay pieces on hard surface. Position one end (with flange
cutout---See "A" and note small holes position) into
the second piece (at the end with the full flange---See "A"
and note small holes position). Align holes in beams
--- then step on raised edge to snap top beam into place.
Tap beams into place to align holes if necessary.
Assemble another set in same manner and fasten the
2 sets together with bolts and nuts as per "B".
(For sizes 6x4, 6x5 and 6x6 fasten together as per
"C".)
LEFT FRONT GABLE
RIGHT FRONT GABLE
LEFT REAR GABLE
RIGHT REAR GABLE
* VIEWED FROM INSIDE BUILDING *
"A"
DOORWAY
LEAVE 2 TOP HOLES VACANT
GABLE SECTION
USE 10mm (3/8") LONG BOLTS AND NUTS
USE 10mm (3/8") LONG
BOLTS AND NUTS
USE A STEP LAD-
DER
NOTE-SMALL HOLES ON
BOTH THESE FLANGES.
"A"
MAIN RIDGE BEAM ASSEMBLY
USE 10mm (3/8") LONG BOLTS
AND NUTS
NOTE-USE BOLTS
AND NUTS ONLY IN
HOLES MARKED
WITH BLACK DOT.
1.
2.
3.
4.
1.
2.
3.
"B"
"C"
To Next Page
