INSTALLATION OF MAIN RIDGE BEAM

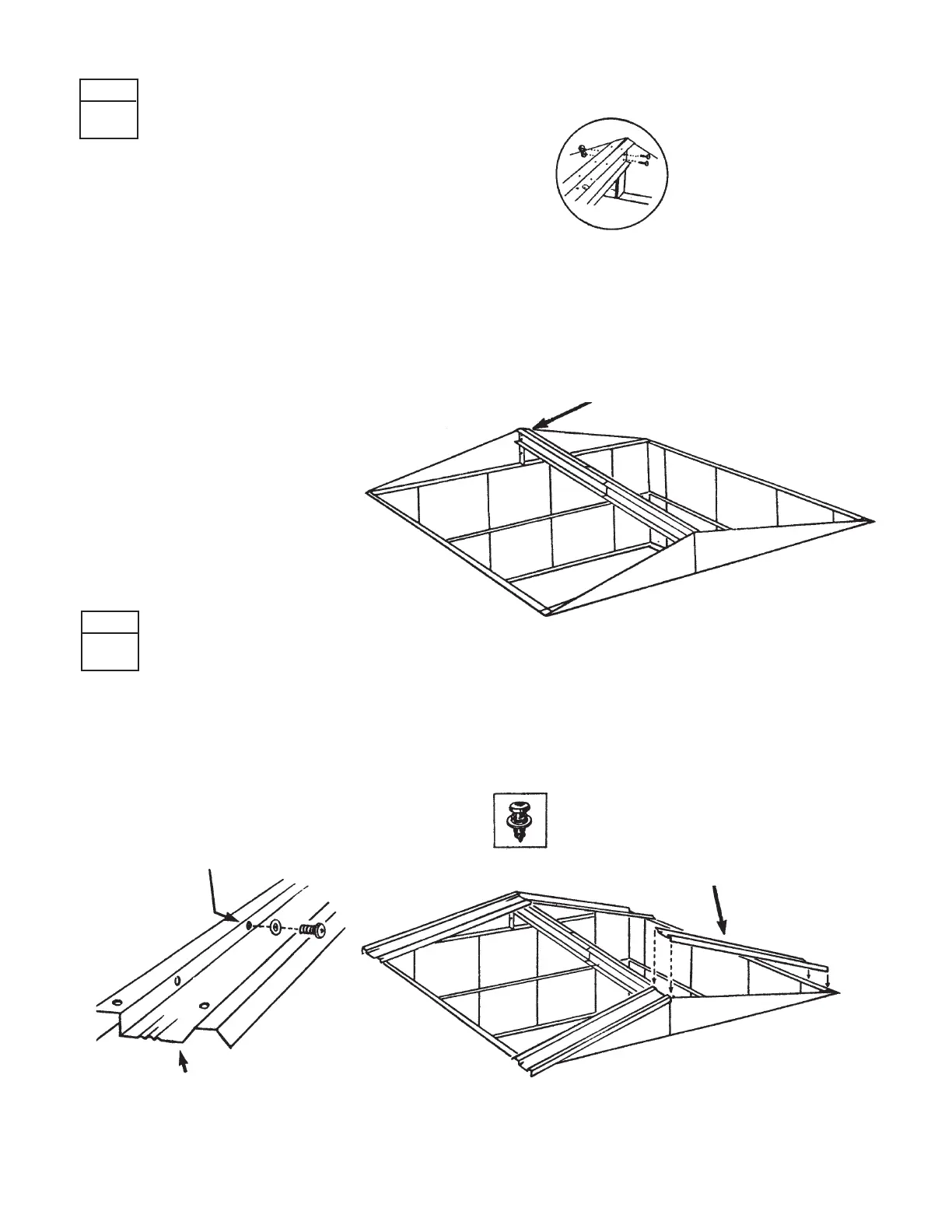

Position the main ridge beam section on the

gables...with the extended lips of the gable section

fitting between the 2 pieces...See "A". Fasten with

bolts and nuts.

NOTE - TO INSTALL USE ONLY 2 BOLTS

AND NUTS AT EACH END.

STEP

1414

ROOF END PANELS

Position roof end panel over gable section...line up holes

and fasten with bolts and washers through the roof end panel

and with nuts on the outside of the gable.

Then fasten to ridge beam and side top rails with screws and

washers.

NOTE - THE SURFACE OF THE RIDGE BEAM

CONTAINING THE MOST NUMBER OF FIXING

HOLES TO FACE UPWARD

MAIN RIDGE BEAM

USE 10mm (3/8") LONG BOLTS AND NUTS

WITH WASHERS

ROOF END PANEL

No. 618H (left)

No. 644H (right)

USE SELF TAPPING SCREWS...

10mm (3/8") LONG WITH WASHERS

AT RIDGE BEAMS AND TOP RAILS

DOORWAY

"A"
